Forward FW-R02 360-Degree Rotation Metal Universal Lifting Column Fixed Bracket – 32mm

Forward FW-R02 360-Degree Rotation Metal Universal Lifting Column Fixed Bracket – 32mm

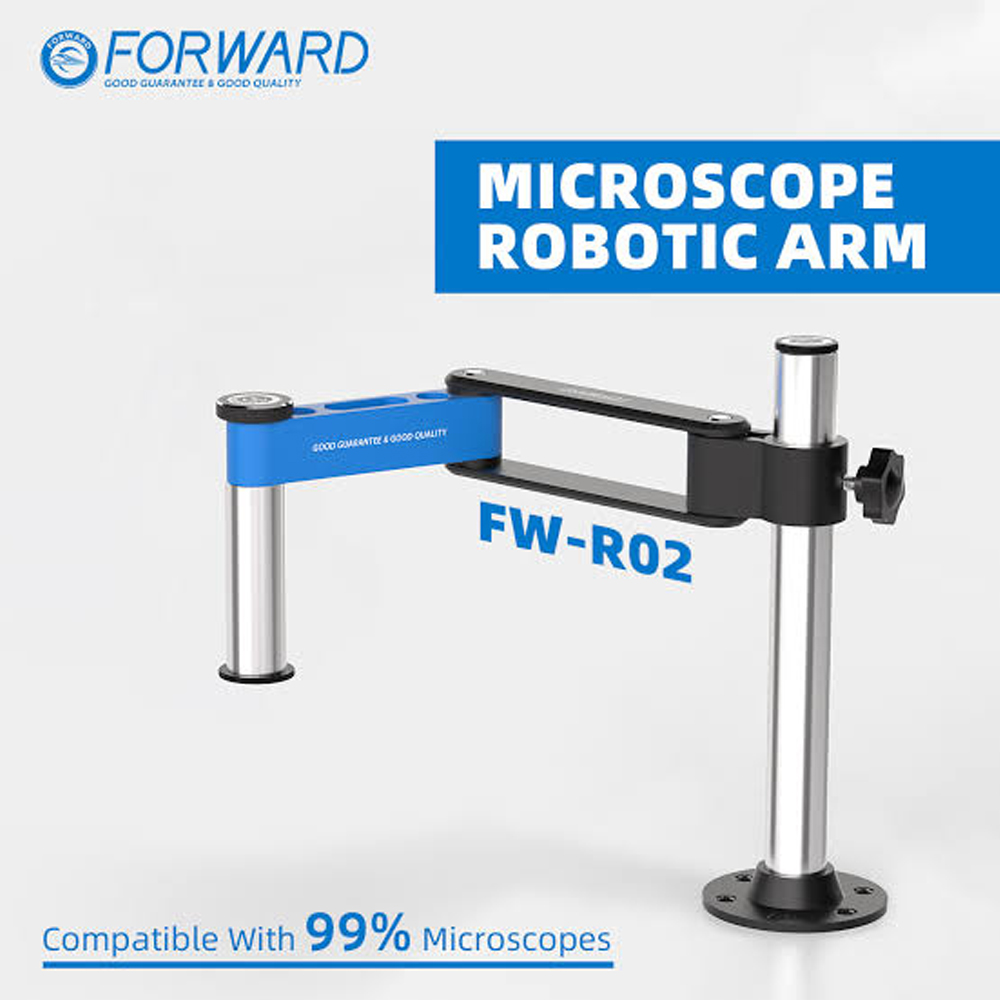

The Forward FW-R02 360-Degree Rotation Metal Universal Lifting Column Fixed Bracket is a professional microscope support and positioning solution designed for mobile phone repair, PCB inspection, electronics servicing, and precision rework applications. With a 32mm fixed rod diameter, the FW-R02 is designed to be compatible with a wide range of microscope setups and is suitable for many professional repair workstations.

Featuring a 360-degree rotating arm, folding structure, precise height adjustment, and a strong all-metal construction, this universal lifting bracket provides technicians with greater flexibility when positioning a microscope. The swing-arm design can be extended or retracted according to workspace requirements, helping save valuable bench space while improving access to the repair area.

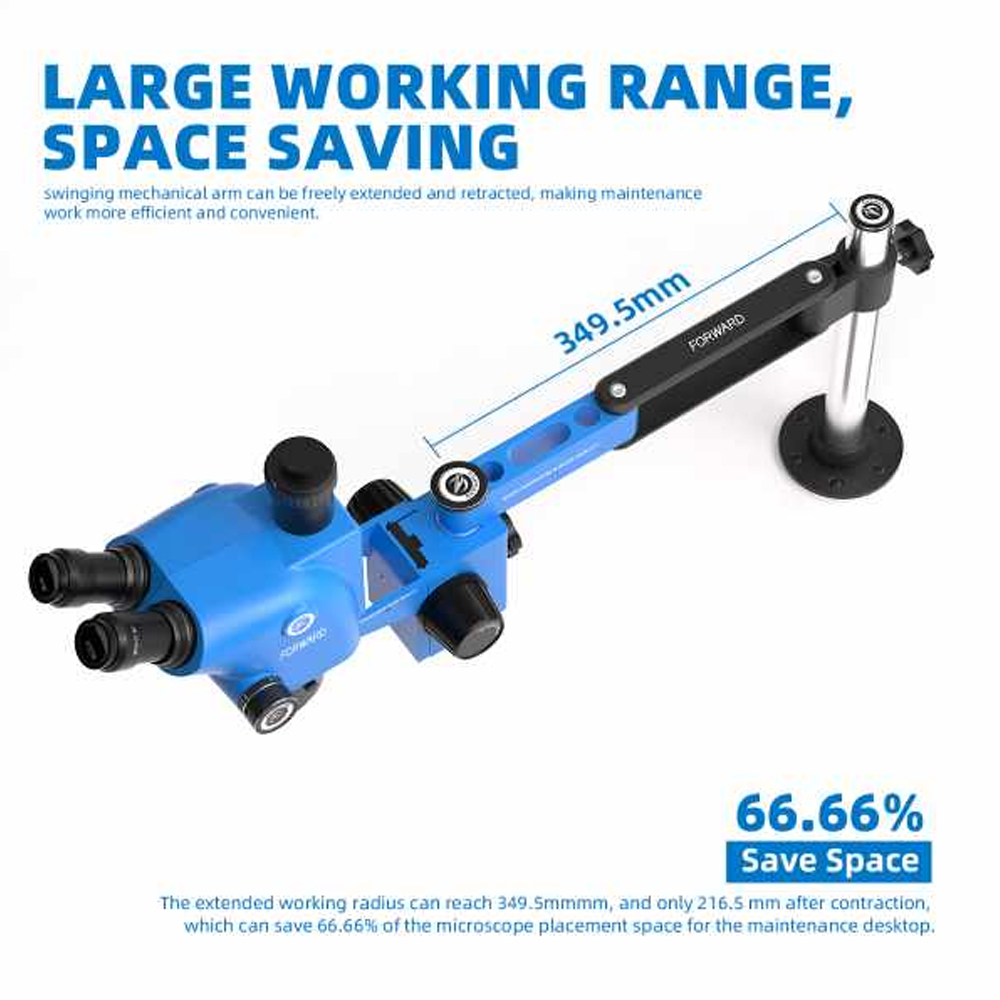

The FW-R02 supports a working radius of up to 349.5mm when extended and approximately 216.5mm when contracted, allowing the microscope to be moved closer to or farther away from the workpiece. Its locking and adjustment mechanism also makes it possible to position the microscope at a suitable working height for comfortable and accurate inspection.

Key Features

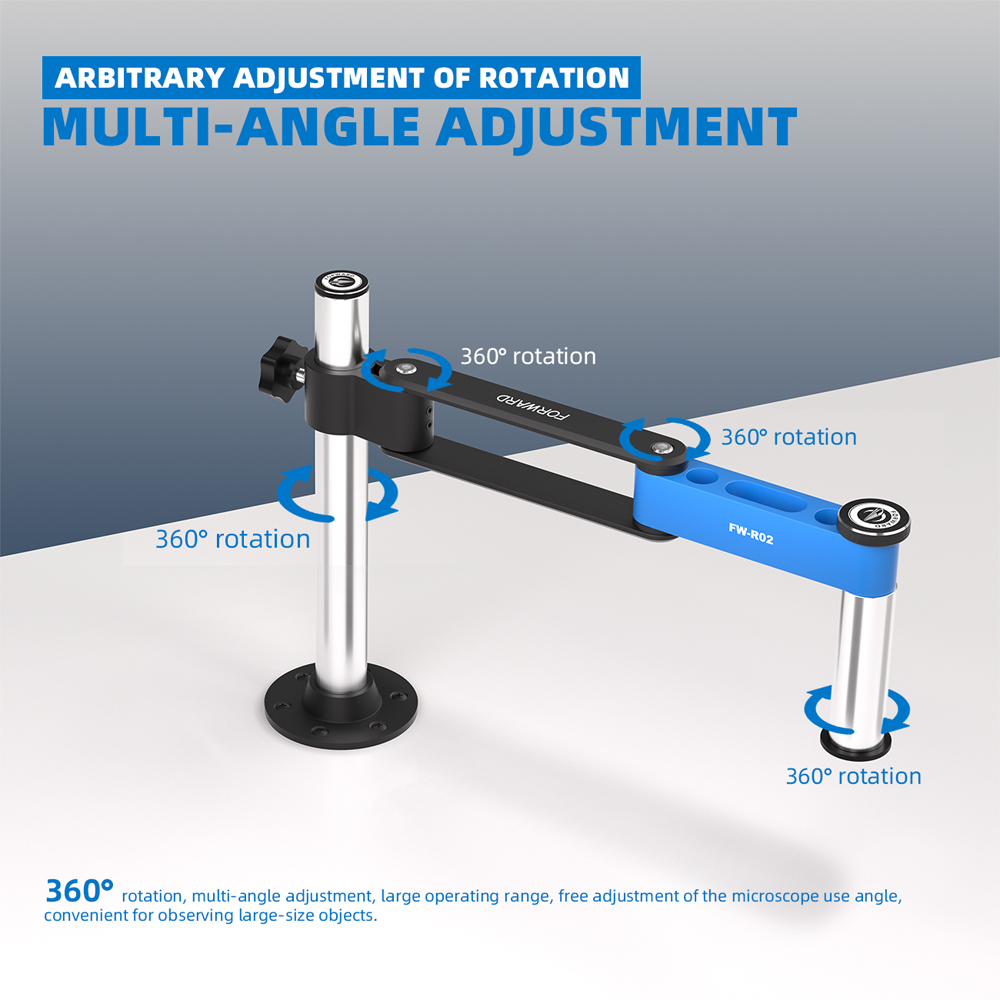

• 360° Rotation: Allows flexible multi-angle microscope positioning for convenient PCB and component inspection.
• 32mm Fixed Rod Compatibility: Designed for microscope systems using a 32mm support rod.
• Wide Compatibility: Designed to work with a broad range of microscope kits and is advertised as compatible with up to 99% of microscope kits.
• Adjustable Swing Arm: Extend or retract the arm according to the size and position of the workpiece.
• Large Working Radius: Provides up to 349.5mm extended working radius and approximately 216.5mm contracted radius.
• Space-Saving Design: The folding arm helps reduce the microscope’s footprint on the repair bench.

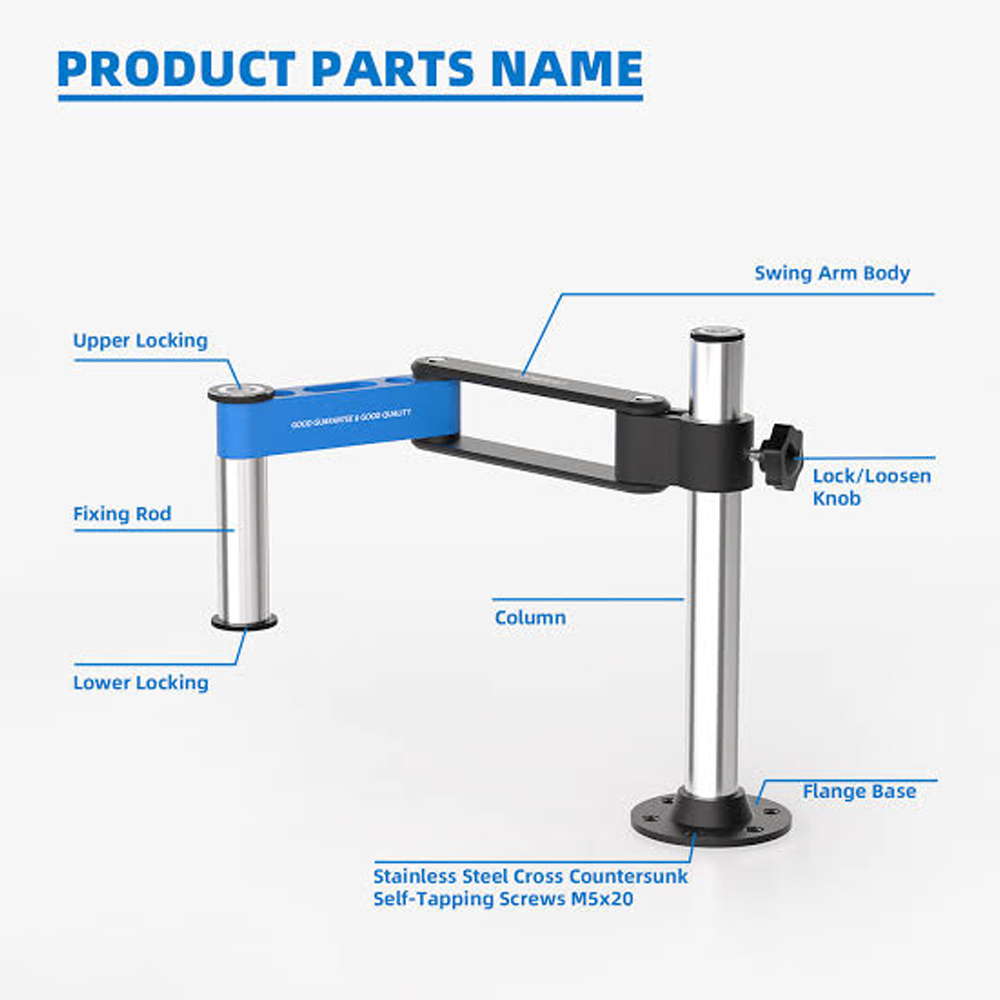

• Precise Height Adjustment: Locking and adjustment knobs allow convenient positioning of the microscope at the required working height.
• Strong Metal Construction: Precision-forged, thickened metal construction provides a stable and durable support structure.
• Quick Installation: Designed for fast docking and simple installation/removal.
• Flexible Microscope Positioning: Move the microscope vertically and adjust its angle according to the repair task.
• Ideal for Professional Repair Benches: Particularly useful for mobile phone motherboard repair, PCB inspection, and electronics servicing.

Technical Specifications
