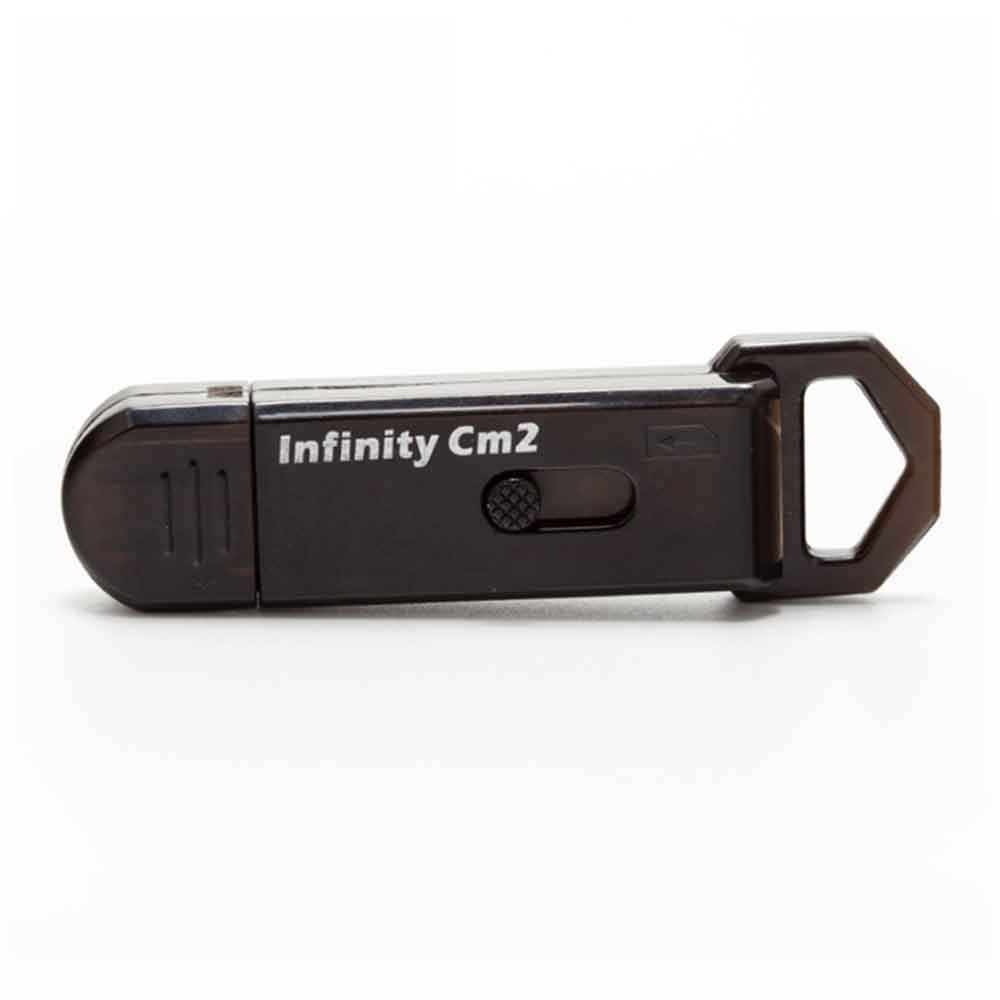

Infinity CM2 Dongle

Description

Infinity-Box Dongle

DOWNLOAD & SUPPORT

https://infinity-box.com/support/
Infinity-Box Dongle contains the following software, hardware and support:

• Software for GSM and CDMA models, see list of supported models *
• World-famous “Chinese Miracle” software for MTK / MediaTek, etc.
• World-famous “Chinese Miracle-2” software for MTK / MediaTek, SPD / Spreadtrum, RDA / Coolsand, etc.
• Protection Smart-Card.
• USB Smart-Card reader
• Support area access (software, flash files, drivers, manuals, updates, bug-fixes, etc.)
• Smart-Card upgrade server access.
• Support via e-mail.
• Support forum access.

Note! After 1 year it is necessary to renew access by means of activation.

Before using the box, please read the following instructions.

Infinity-Box Dongle – Features:

• Well known GSM and CDMA brands / models supported.
• “Chinese Miracle” MTK based brands / models supported.
• Standalone software (no Internet connection required).
• SP-unlock: unlock (remove / clear) network, provider locks.
• Set network, provider locks.
• Read unlock codes.
• Flash read / write (high speed).
• Write any part of Flash separately (firmware, customization, flex, map, file system (FFS), language pack).
• Upgrade / downgrade firmware.
• Repair damaged IMEI.
• Remove / clear / read user / phone lock code.
• Reset to default / factory settings.
• Repair dead phones.
• Read Flash / EEPROM area backup.
• Repair software-related problems.
• Read unlock codes: network, provider codes, user / phone code.
• Empty board flashing (for example, after flash chip replacement).
• Format file system.
• SCAT files read / write.
• Create security zone backup during critical operations.
• “Smart write” option, together with high-speed option flashing speed may be extremely high.
• Detect keyboard codes by flash file (“Keyboard codes detector”).
• Save operation process results in a Log file.
• Big flash files database for all World regions.
• Compact flash / EEPROM files format: flash / backup files internally packed and unpacked on the fly. That way you can save up to 50% of your Internet traffic (download small files from support area) and save a lot of disk space on your HDD.
• Counter for unlock / flash / other operations.
• Easy to use brand / model selection via “Shell”.
• Easy access to cables / pinouts information via “Cable selector”.
• Easy access to support area via automatic logon system and “Support manager”.
• Huge flash files database: firmware, language pack, flex, map, repair EEPROM, FFS files, etc., more than 20,000 files for different models.
• Documentation and manuals with step-by-step instructions.

Note: To avoid any misunderstanding please check list of available functions for each supported model, different models have more or less functions, because of hardware / software limitations!

“Chinese Miracle” module for MTK-based models – Features:

• Automatic phone structure detection: this means that you can also service phones which is not shown in supported models list. Just find a pinout and make sure that your phone is based on MT62xx CPU and you will be able to flash / unlock / repair this phone.
• Repair dual-SIM (dual-CPU) models: work with Rx_A/Tx_A, Rx_B/Tx_B pinouts to repair firmware for both CPU.
• Repair IMEI for single-SIM and dual-SIM models with different methods (MT6205, MT6223 dual configurations supported too).
• Repair IMEI for single SIM/CPU models.
• Repair master IMEI (SIM-1) for dual-SIM (dual CPU) models.
• Repair slave IMEI (SIM-2) for dual-SIM (dual CPU) models.
• Repair master IMEI (SIM-1) for dual-SIM (single CPU) models.
• Repair slave IMEI (SIM-2) for dual-SIM (single CPU) models.
• Repair slave IMEI (SIM-3) for triple-SIM models.
• Automatic memory size detection.
• Direct SP-unlock phones with unknown firmware (auto-detection algorithm).
• Direct unlock user code phones with unknown firmware (auto-detection algorithm).
• Format file system: auto-detect FFS structure and size, backup FFS before format.
• Reset to defaults phones with unknown firmware (auto-detection algorithm).
• Write / Read Flash for phones with unknown structure (auto-detection algorithm).
• Write / Read EEPROM for phones with unknown structure (auto-detection algorithm).
• Firmware version auto-detect.
• Automatic firmware version detection and save original firmware version information in Log file during flash / format.
• Language list auto-detect.
• Repair “Power-On problem” for MT6205, MT6208, MT6217, MT6218, MT6219, MT6223, MT6225, MT6226, MT6227, MT6228, MT6229, MT6230, MT6235, MT6238, MT6239, MT6253, MT6268 CPU based models after full flash without backup, erased flash, etc.
• Repair / recalculate security area (five different security area types supported) to repair dead phones based on MT6223, MT6225, MT6226, MT6227, MT6228, MT6229, MT6230, MT6235, MT6238, MT6239, MT6253, MT6268 CPU.
• Upgrade / downgrade phone firmware.
• Unlock (remove / clear) network, provider locks.
• Read unlock codes: network, provider codes, user / phone code.
• Reset phone settings to defaults (factory state).
• Empty board flashing (for example, after flash chip replacement).
• Create security zone backup during critical operations.
• Repair software-related problems.
• Repair dead phones.
• “Flash File Manager”: easy access to firmware information such as internal firmware name, language names, keyboard codes.
• Touchscreen calibration (repair phones with damaged touchscreen).
• Repair “No licensed to produce” fault.
• Repair “Bad Software” fault (latest MT6223, MT6225, MT6226, MT6227 based models).
• Repair “Code CRC Check Error” fault.
• Detect language names inside flash file.
• Detect keyboard codes inside flash file (for service menu, etc.)
• Detect firmware version by flash file.
• Detect existing languages by flash file.
• Detect keyboard codes by flash file (“Keyboard codes detector”).
• Batch flash file rename, version detection, language detection, name conversion.
• Save operation process results in Log file.
• Huge and almost complete flash files database: firmware, repair EEPROM, FFS files, etc.
• Estimated remaining flash read / write time indication.
• Documentation and manuals with step-by-step instructions.

List of available options for several supported models.

* Developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied to some supported models, due to difference of hardware / software versions. Complete list of supported models you can find on the official product page, or on the GSM forum.
