KAISI TX-350E 7-50X Continuous Zoom Microscope

KAISI TX-350E 7-50X Continuous Zoom Microscope

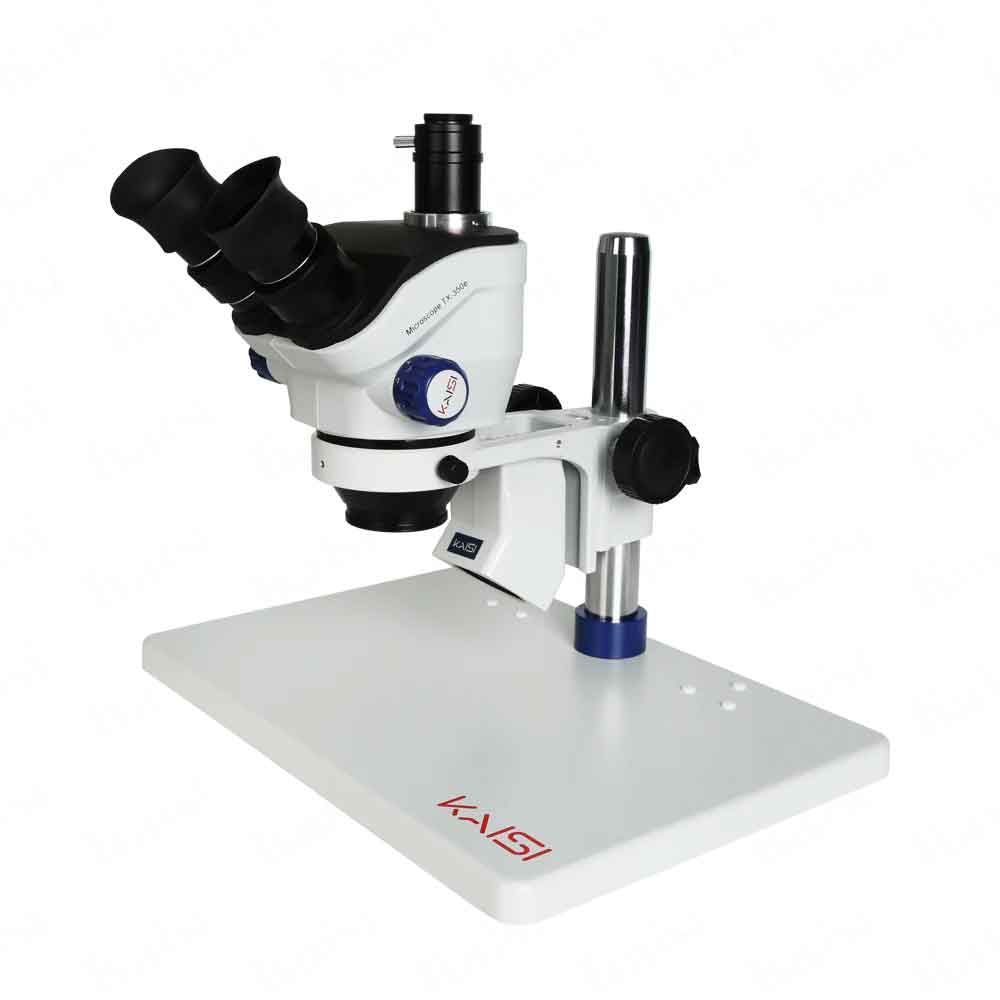

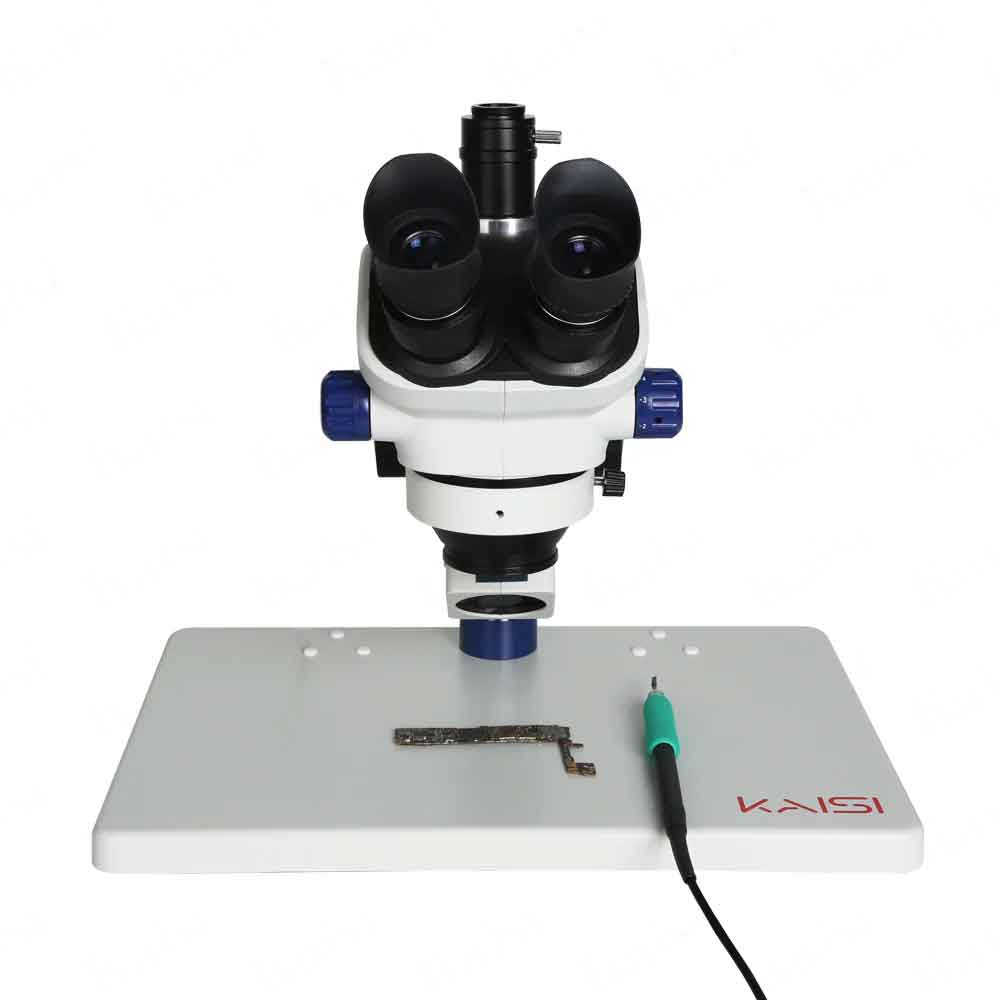

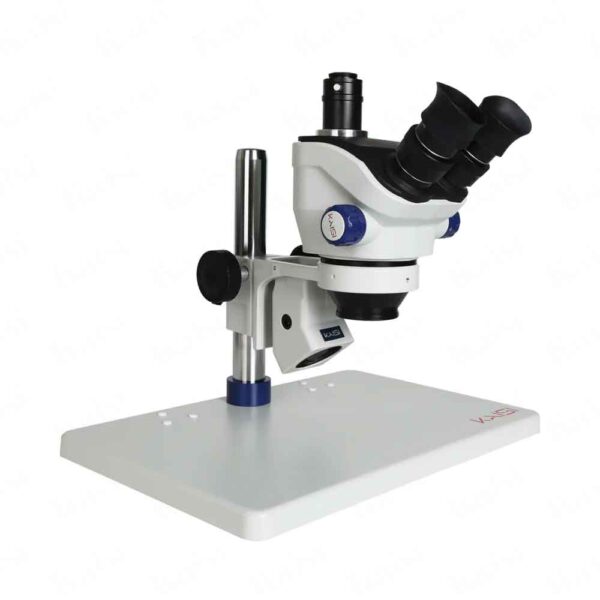

The Kaisi TX-350E microscope is a robust, high-precision stereo microscope designed to meet the demands of electronics repairers, mobile-board technicians, PCB assemblers, and hobbyists who require stable and detailed magnified viewing. Its wide 260 × 380 mm base delivers extraordinary stability — letting you work steadily even on delicate tasks like micro-soldering or fine inspection. The continuous zoom range from 7X to 50X ensures you can smoothly shift between overview and close-up detail without interrupted workflow. Paired with a high-quality WF10X/23 wide-field eyepiece, TX-350E delivers sharp, flat, and clear stereo images, reducing eye fatigue during long sessions. The reinforced base plate and anti-slip mats ensure safety and durability, while the overall build quality ensures longevity even under frequent use. Whether you’re detailing PCB traces, checking solder joints, or assembling small components — this microscope gives you the clarity, stability and reliability needed to do the job right.

Key Features

• 7X–50X Continuous Zoom Magnification — Smooth zoom control for flexible adjustment between broad view and detailed inspection.
• Large, Stable Base (260 × 380 mm) — Provides ample support and accommodates larger PCBs or assemblies for stable work.

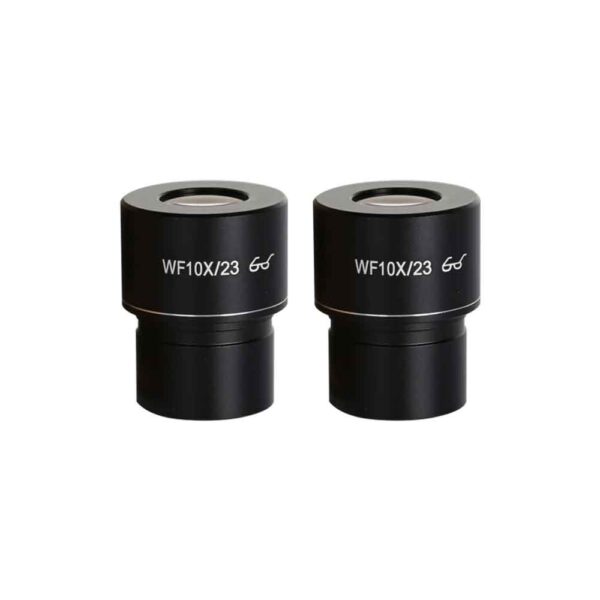

• Wide-field WF10X/23 Eyepiece — Broad field of view for comfortable observation and reduced eye strain during extended use.
• Stereo Optics with 100 mm Working Distance — Offers three-dimensional, clear views and enough space to maneuver tools, soldering irons or components beneath the lens.
• Reinforced Base Plate with Non-Slip Pads — Ensures stability, prevents sliding and enhances durability of the microscope base.
• Ergonomic Head Design (tilt & adjustable interpupillary distance) — Allows comfortable viewing angles and accommodates different users for long working sessions.

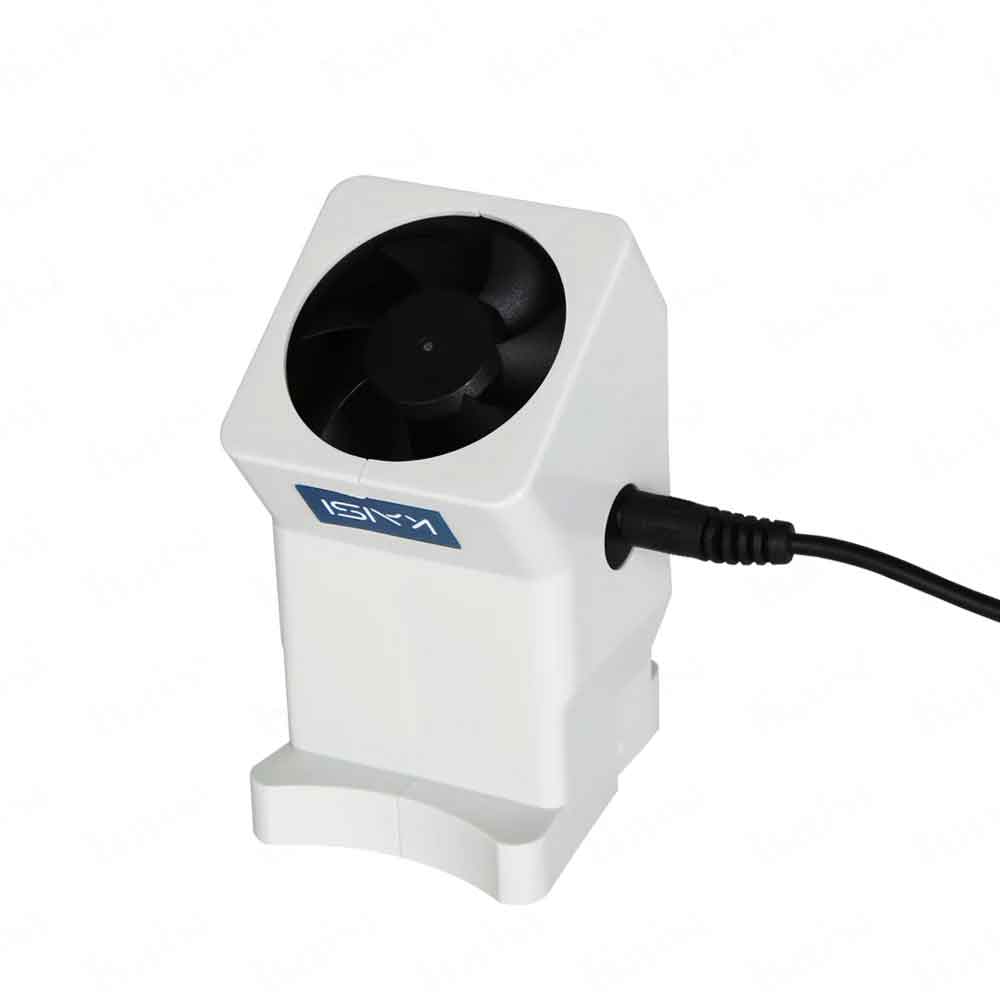

• LED Illumination & Exhaust/Fume Fan (in package) — Provides consistent, bright lighting for clear visuals and helps keep work area smoke-free during soldering.
• Durable Alloy-Steel Build — Solid construction ensures robustness and stable performance for frequent workshop use.


  Technical Specifications

  Specification	Detail
  Model	TX-350E
  Magnification Range	7X – 50X continuous zoom (0.7X–5X objective)
  Eyepiece	WF10X / 23 mm wide-field
  Working Distance	~100 mm standard (may vary with lens/adapter)
  Base Size	260 × 380 mm large base plate with anti-slip pads
  Field of View	Approx. 4 mm – 30 mm (depending on zoom level)
  Head Design	Stereo/trinocular head, 45° tilt / adjustable interpupillary distance & eyepiece diopter adjustment
  Illumination & Extras	LED light + soldering exhaust / fume fan included in package
  Material	Alloy steel / metal build for durability and stability
  Use Cases	PCB/mobile-board inspection, electronics repair, micro-soldering, component assembly, quality control, detailed inspection
