KORAD U203 Digital Control DC Power Supply 0-30V, 0-10A, 300W
Rs.4,550.00 Rs.5,000.00
- Smoothly adjusts voltage from 0V to 30V and current from 0A to 10A
- Enables coarse voltage regulation in 1V steps and fine regulation in the range of 0.01V to 0.1V
- Displays the current value with an accuracy of 0.1 mA
- It has two 24W USB ports for fast charging of devices

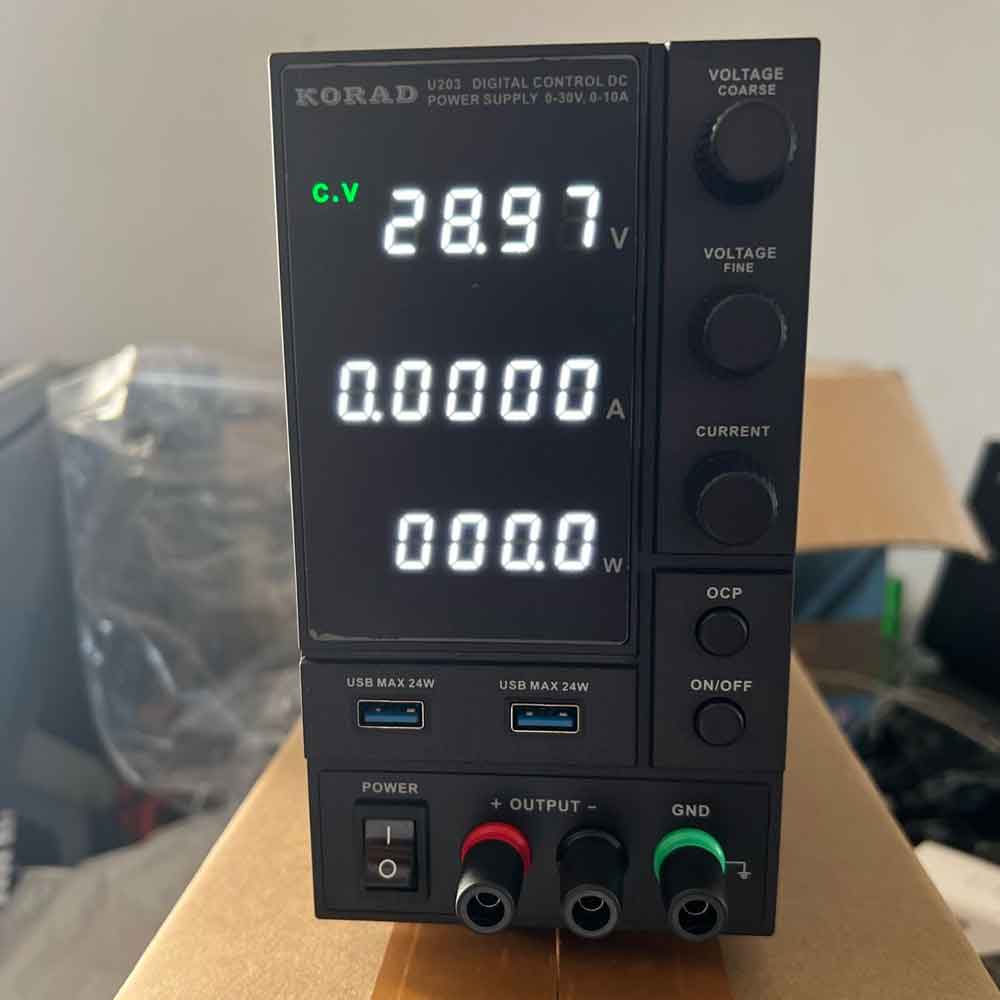

- There is a built-in LED display that shows the current voltage, current and power values
- It is equipped with protection against overload and overheating
- When the device is turned off, it can remember the set parameter values
- It has on/off and OCP output switches
Description
[vc_row][vc_column][vc_column_text]
KORAD U203 Digital Control DC Power Supply 0-30V, 0-10A, 300W
Korad U203 is an Advanced Power Supply with a voltage range from 0 V to 30 V and current intensity from 0 A to 10 A. It is designed to power various types of electrical and electronic devices, distinguished by its ability to deliver high current. The power supply parameters can be easily adjusted using the built-in knobs. Additionally, the device is equipped with two USB ports with a power of 24 W each , enabling charging of smaller devices, and with protection against overload and excessive temperature increase , which increases its safety of use. It also has an LED display that allows you to read voltage, current and power values.
Features :
- Provides smooth regulation of voltage from 0 V to 30 V and current from 0 A to 10 A
- Enables coarse voltage regulation in 1 V steps and fine adjustments in the range from 0.01 V to 0.1 V
- Displays the current value with an accuracy of 0.1 mA
- It has two 24 W USB ports for fast charging of devices
- Includes a built-in LED display to display current voltage, current and power values
- It is equipped with protection against overload and over temperature
- It can remember the set parameter values after turning off the device
- It offers on-panel ON/OFF and OCP output switches
Specifications:
- Voltage range: from 0V to 30V
- Current range: from 0V to 10A
- Parameter adjustment
- Voltage: ≤0.01% + 2mV
- Current: ≤0.1% + 5 mA
- Parameter setting accuracy:
- – Voltage: 10 mV
- – Current: 1 mA
- Setting accuracy:
- – Voltage: ≤0.5% + 10 mV
- – Current: ≤0.5% + 5 mA
- Output voltage ripple:
- – Voltage: ≤20mVrms
- – Intensity: ≤10 mArms
- Dimensions: 231x95x168mm
- Weight: 2.5 kg
[/vc_column_text][/vc_column][/vc_row]
Additional information
| Weight | 3.0 kg |
|---|---|
| Dimensions | 30 × 25 × 20 cm |
