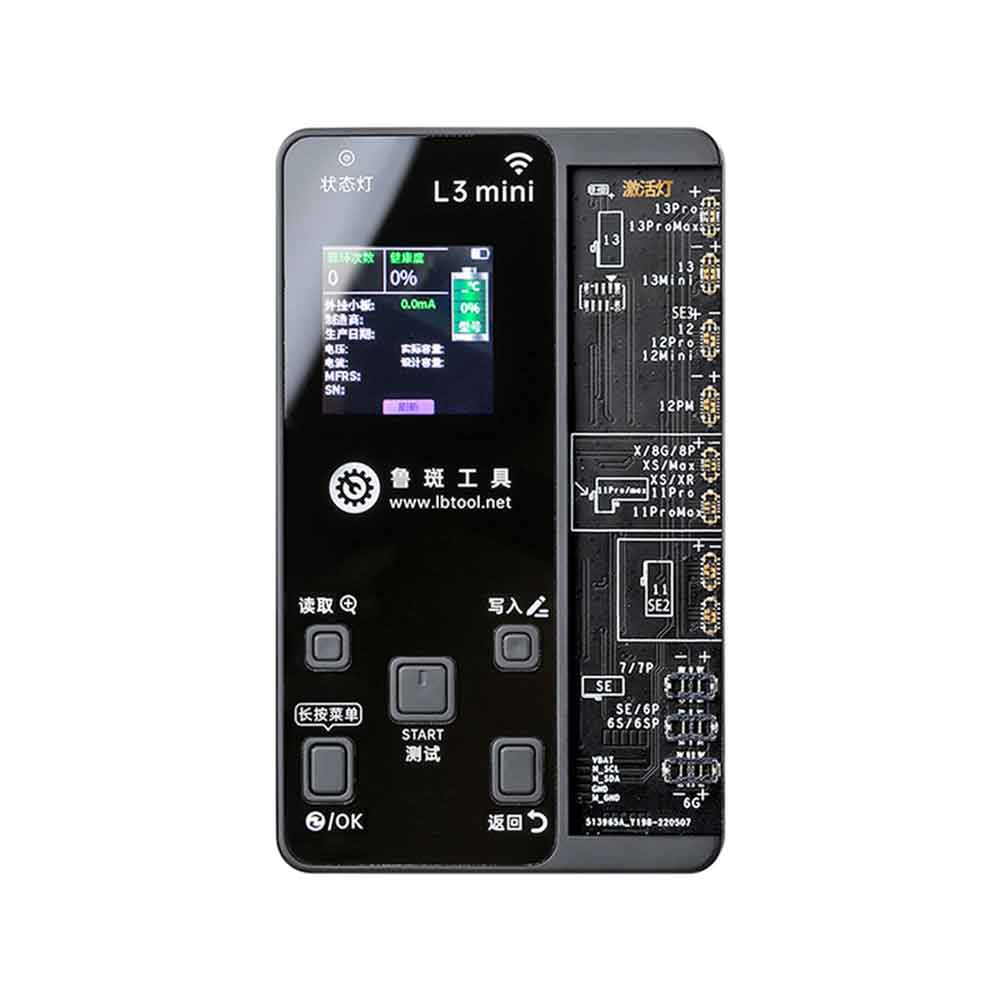

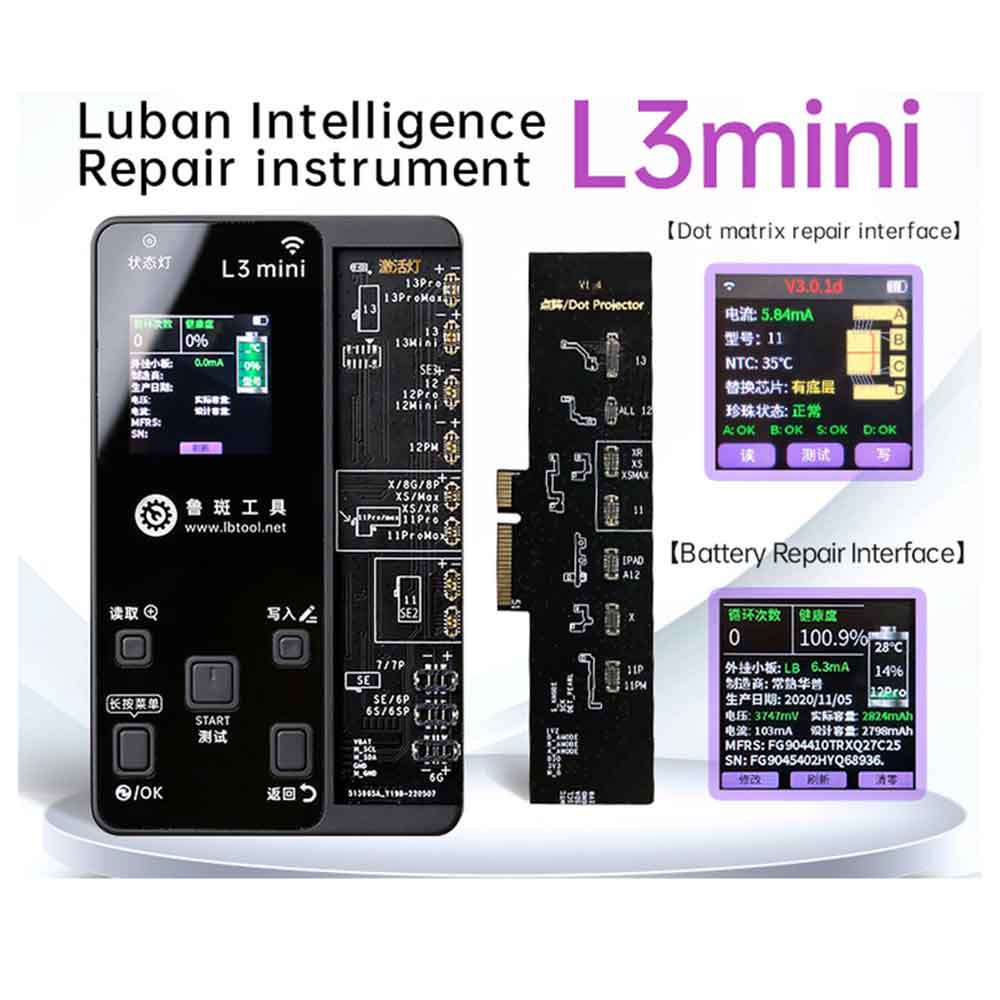

Luban L3 Mini Intelligent Repair Programmer for Phone 6-13ProMax

Features:

• Luban Intelligent Repair Instrument, for battery repair/face repair, supported models: all models of iPhone 6G/SE to 13Pro Max

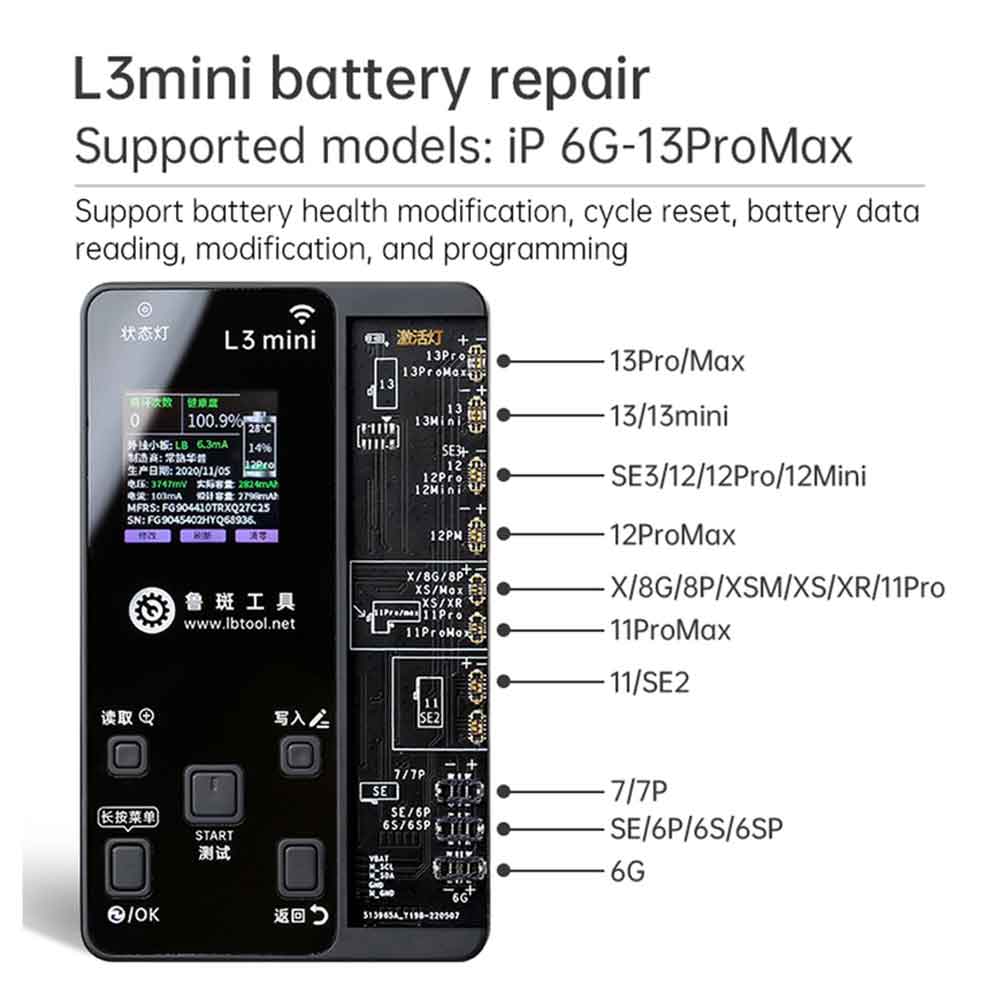

• L3mini battery repair supported models: iPhone 6G to 13Pro Max, support battery health modification, cycle reset, battery data reading, modification, and programming
• Note: For models above iPhone 11, you need to install a Luban external device to modify data, and a built-in battery repair cable, models below 11 can directly modify battery data

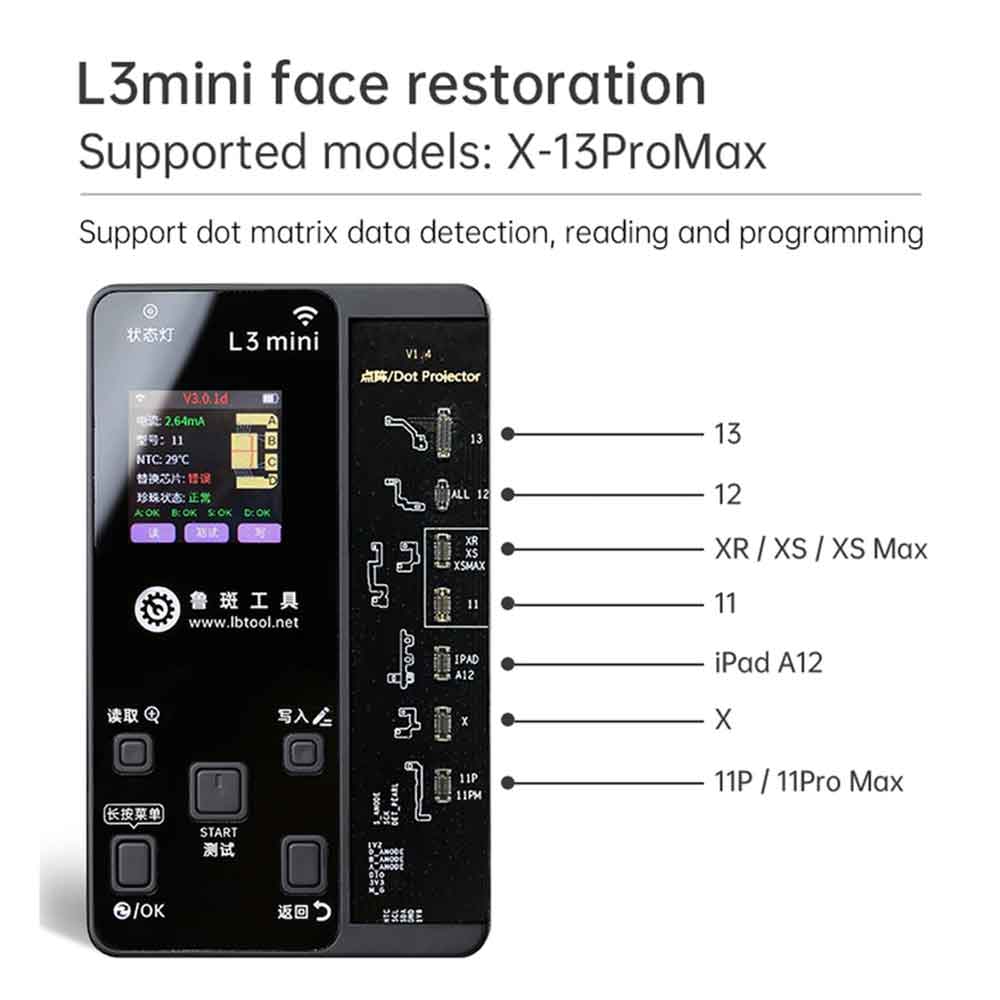

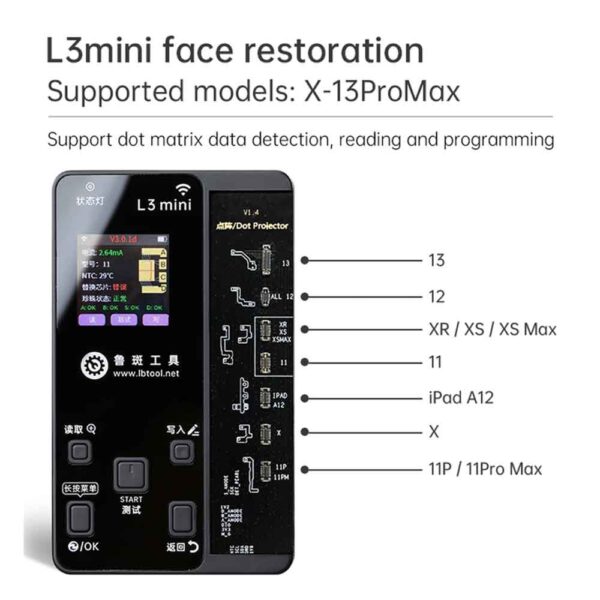

• L3mini face restoration, supported models: iPhone X to 13ProMax, support dot matrix data detection, reading, and programming
• Support face lattice data query, read lattice data, and never lose
• Reading through the device lattice is stored in the local device, not synchronized with the cloud
• Note: Clear is empty, it can be unbundled and saved in the cloud through the Luban tool computer
• Connect Wifi upgrade latest, enter settings, support language selection, WIFI connection, OTA upgrade, System Settings, About This Machine

Specification:

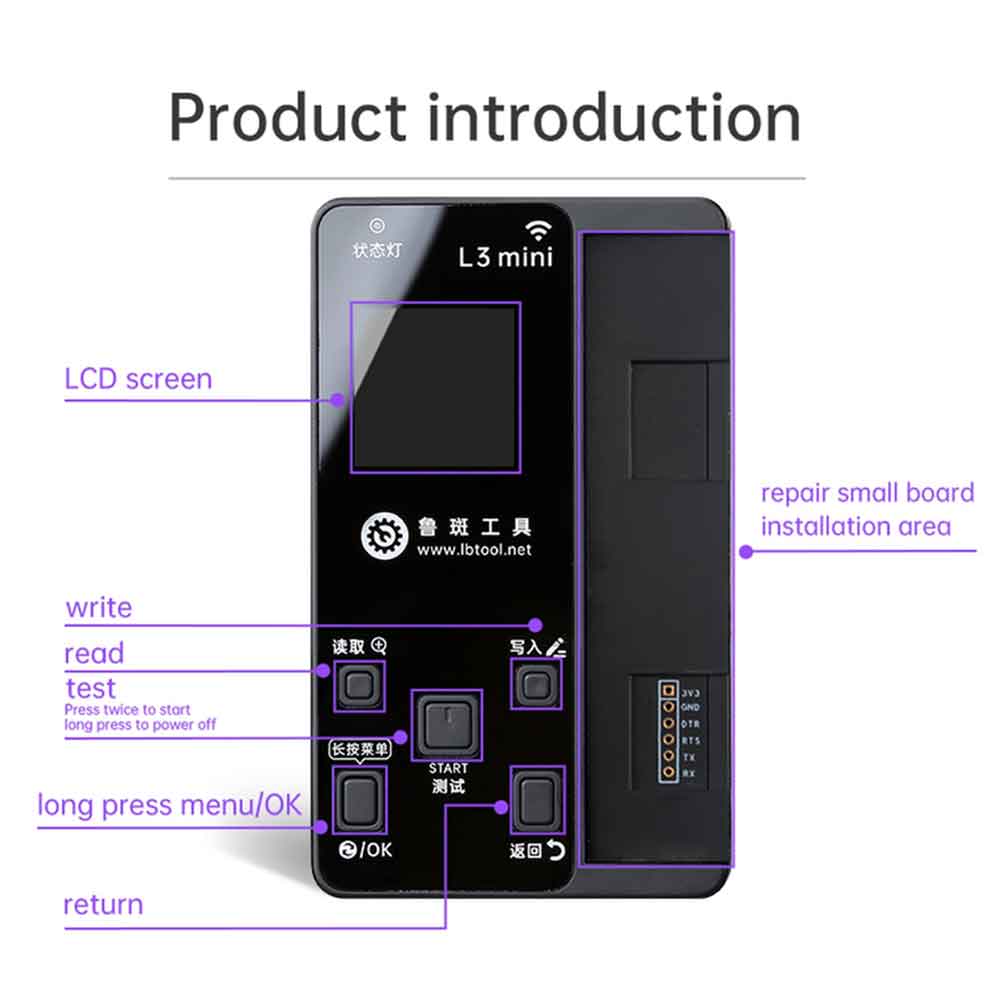

• Name: Luban Intelligent Repair Instrument
• Model: L3 mini
• Product size: 10.7*6.3*1cm
• Net weight: 59g (without battery)
• Built-in battery: without a battery
• Charging voltage: Limit 4.35V
• Input voltage: 5V
• Wifi/Bluetooth: 2.4G Wifi
• Battery Repair Operation Steps:
• Snap on the battery board (button the battery board to display the screen)
• Connect the battery with the Luban battery cable first
• Then snap it on the battery board (Close the seat to display the screen)
• Luban L3 mini supports backup data and writes data when there is a primary battery

Dot matrix repair operation steps:

• Buckle the dot matrix board
• Buckle the original dot matrix cable, click test
• Buckle the corresponding type of Luspot array cable, click to test (Or replace the dot matrix cable of the Ludot array chip)
• Write the saved data, and then perform the cable test

Package includes:

1 x Host
1 x Battery detection board
1 x Face detection board[/vc_column_text][vc_single_image image=”9954″ img_size=”full” alignment=”center”][/vc_column][/vc_row]
