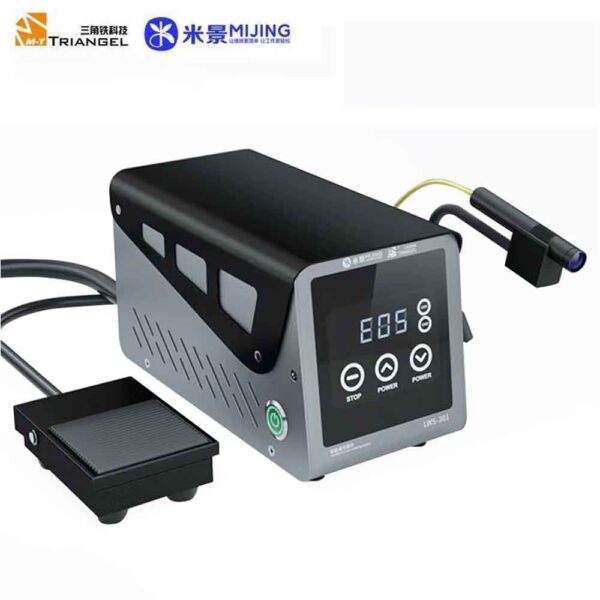

MiJing LWS-301 Laser Intelligent Soldering Station

MiJing LWS-301 Laser Intelligent Soldering Station

The MiJing LWS-301 Intelligent Laser Soldering Station redefines high-precision electronics repair by replacing traditional hot-air guns with a wind-free, laser-based heating method. With dual 15 W laser diodes, its focused beam heats solder joints quickly and consistently, minimizing collateral damage to nearby components. The laser power can be finely tuned across 10 levels, and you can save two power profiles (CH1 and CH2) for quick switching during repetitive tasks.

Built for precision work, it offers two interchangeable laser lenses — 6 mm for tight, focused heating and a broader 10 mm spot for larger pads or glue removal. The pen height (0–100 mm) is flexible, and heating is controlled via a foot switch: step on to activate, release to stop. Air-cooled for safety and longevity, the station ensures stable operation without overheating the rest of the motherboard.

Use it for chip desoldering, micro SMD rework, glue removal, or any delicate soldering job where conventional rework stations might damage nearby components. Thanks to its compact size and smart memory functions, it’s a powerful addition to any mobile-repair or micro-soldering workstation.

Key Features

• Dual 15 W Laser Output: Two laser diodes offer stable, wind-free heating for delicate components.
• 10 Power Levels: Adjustable laser intensity for more control over heating speed and temperature.
• Interchangeable Laser Spot: 6 mm or 10 mm spot sizes to suit different components or pad sizes.
• Memory Channels (CH1 / CH2): Store two power settings for fast switching between tasks.
• Foot-Switch Activation: Laser is controlled by a pedal — step to activate, release to stop for precise, hands-free control.
• Air-Cooled Design: Keeps internal components cool without bulky fans or airflow, reducing risk of disturbing nearby parts.
• Compact Body: Small form factor (216 × 110 × 129 mm) fits easily on a repair bench.
• Wide Voltage Support: Compatible with 100–220 V (±10%), 50/60 Hz for global usability.
• Low Risk of Oxidation: Unlike hot-air rework, laser heating doesn’t blow flux or oxidize solder, preserving the board.
• Precise Heating Distance: Effective up to about 100 mm from the board, with consistent output.
• Lightweight Pen: The handheld laser pen lets you position accurately while minimizing fatigue.


  Technical Specifications

  Specification	Detail
  Model	LWS-301 Intelligent Laser Soldering Station
  Laser Power	15 W × 2 (two diodes), 10 adjustable levels
  Laser Wavelength	~915 nm (typical for this model)
  Spot Size	6 mm or 10 mm (interchangeable lenses)
  Cooling Method	Air cooling
  Supply Voltage	100–220 V ± 10%, 50/60 Hz
  Machine Dimensions	216 × 110 × 129 mm
  Memory Settings	2 Channels (CH1, CH2) for saving laser power levels
  Control Method	Foot-switch for laser activation
  Effective Operating Distance	0–100 mm height range for pen to maintain energy
  Weight	~3.2 kg (approx. 3.40 kg in some listings)
