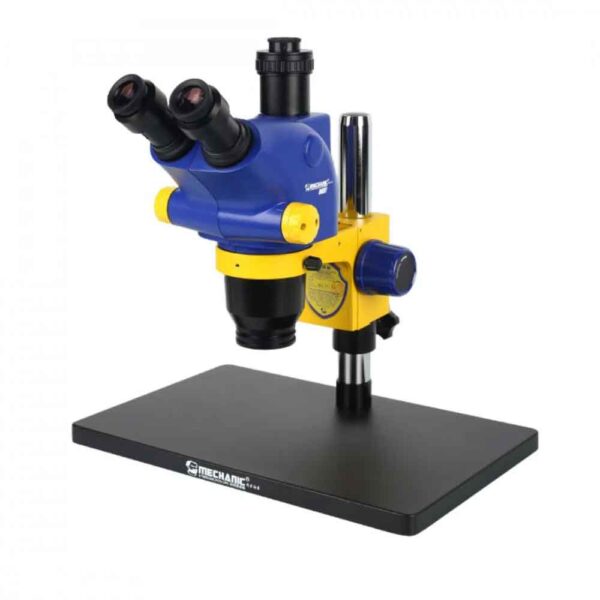

Mechanic D65T-B3 Trinocular Stereo Microscope With 6.5X-65X Continuous Zoom

Mechanic D65T-B3 Trinocular Stereo Microscope With 6.5X-65X Continuous Zoom

The Mechanic D65T-B3 microscope is engineered to deliver professional-grade clarity, flexibility, and comfort for electronics technicians, PCB repair specialists, quality control labs, and hobbyists. Its wide 6.5–65× continuous optical zoom enables smooth transitions from a broad overview to fine-detail inspections — perfect for analysing circuit boards, solder joints, BGA components or small parts without changing lenses.

Packed with precision optics and a wide-field high-eyepoint eyepiece (WF10X/22 mm), the D65T-B3 produces sharp, high-contrast stereo images with excellent depth perception and minimal distortion — ensuring you don’t miss even the smallest defects.

With a generous 100 mm working distance under the lens, there’s ample space to maneuver soldering irons, tweezers, or test probes — a must-have when working on PCBs, mobile boards, or delicate assemblies.

The integrated adjustable LED ring-light (56 bulbs, 4.5 W) offers bright, uniform, cold-white illumination, enabling clear observation even under low ambient lighting — essential for soldering, component inspection, or micro-work.

Built with a robust large base (195 × 256 × 20 mm) and a durable metal focusing mechanism (50 mm lift range), this microscope remains stable and vibration-free — even during precise operations.

Whether you’re repairing phone motherboards, performing micro-soldering, doing detailed component inspection, or working on quality control & assembly tasks — the Mechanic D65T-B3 offers the reliability, clarity, and flexibility needed for professional-grade results.

✔️ Key Features

• Continuous 6.5–65× zoom magnification — Smooth optical zoom that covers both macro-level overview and micro-level detail without lens swapping.

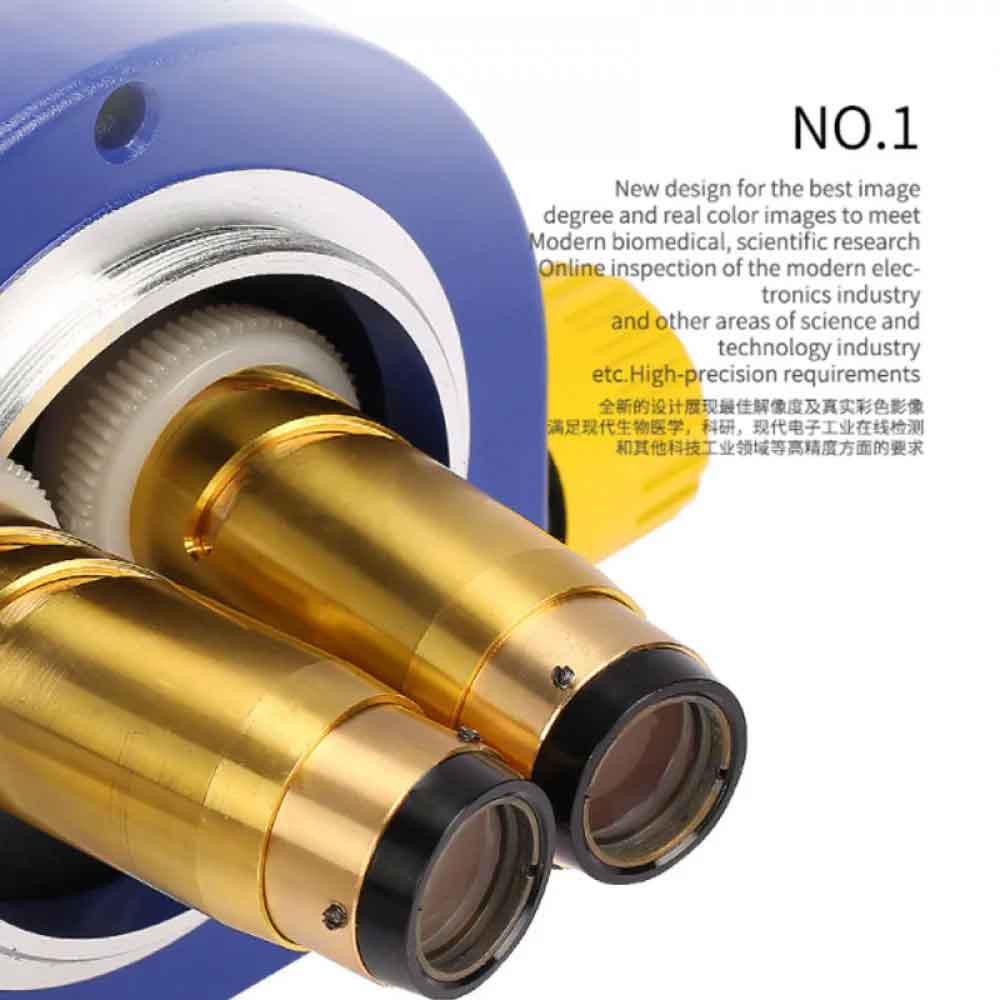

• Wide-field WF10X / 22 mm eyepieces (high-eyepoint) — Broad field of view and comfortable observation even for extended sessions or for users with glasses. 1
• Large working distance (~100 mm) — Plenty of space beneath the lens for tools, soldering irons, probes or components — ideal for PCB/mobile board repair.
• Built-in adjustable LED ring-light (56 bulbs, 4.5 W) — Provides stable, cold-white illumination to clearly view solder joints, traces, and fine details under variable ambient light.
• High-definition coated optics & dust-proof mirror — Ensures sharp, high-contrast stereo images with minimal glare, distortion, or dust interference.
• Trinocular / binocular head with 45° inclination & interpupillary adjustment (54–76 mm) — Offers ergonomic viewing and supports camera attachment for documentation or external display.
• Sturdy large base (195 × 256 × 20 mm) — Provides stable foundation and ample workspace on workbench; reduces risk of small parts rolling off.
• Metal focus bracket with 50 mm lift range — Smooth, precise focusing adjustment to accommodate different sample thicknesses or tool clearance.
• Wide application versatility — Suitable for PCB/mobile-board repair, soldering/desoldering, electronics inspection, small-component assembly, quality control, lab work and educational tasks.
• Optional auxiliary lenses and camera-ready output — Expandable magnification and ability to connect to external display for documentation or team-view purposes.


  🧰 Technical Specifications

  Specification	Details
  Model	Mechanic D65T-B3 Trinocular Stereo Microscope
  Magnification	6.5× – 65× continuous zoom
  Eyepieces	WF10X / 22 mm high-eyepoint wide-field (optional alternate eyepieces available)
  Viewing Head	Binocular/trinocular head, 45° inclined, interpupillary distance 54–76 mm, bilateral visibility adjustable
  Working Distance	~100 mm standard (with auxiliary lenses can extend to ~30–287 mm)
  Illumination	Built-in LED ring-light, 56 LEDs, 4.5 W, adjustable brightness; input AC 90–240 V
  Base Plate Size	195 × 256 × 20 mm large base for stability and workspace convenience
  Focus Mechanism	Metal focusing bracket with ~50 mm lift range and adjustable tension

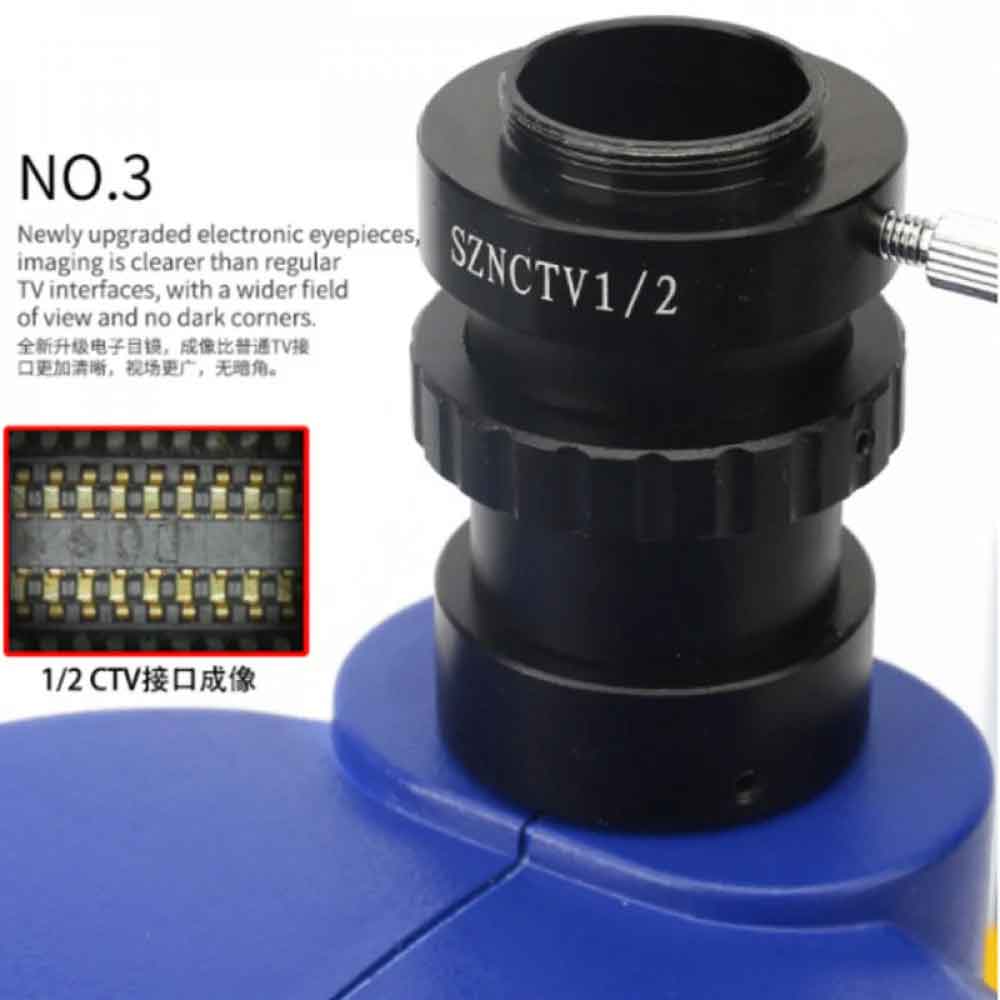

  Additional Features	High-definition coated optics, dust-proof mirror, option for auxiliary lenses and camera adapter/CTV output
  Typical Use Cases	PCB/mobile-board repair, soldering/desoldering, electronics inspection, component assembly, quality control, lab work, teaching, small-part inspection
