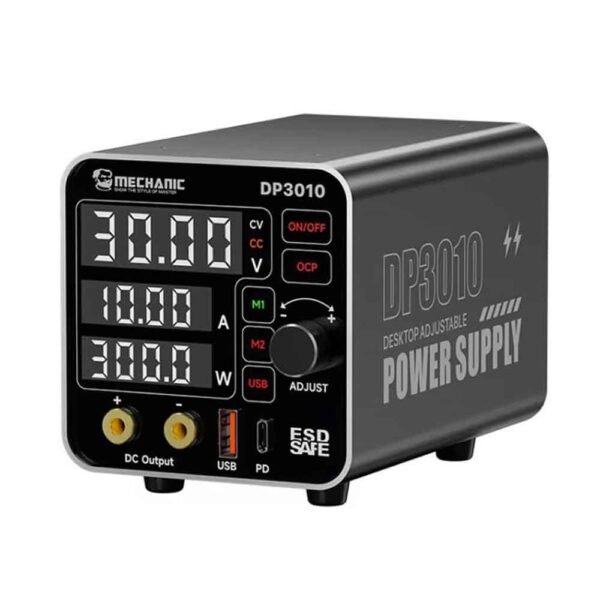

Mechanic DP3010 30V / 10A High Power Wide Voltage Mini Multi-functional Power Supply

Mechanic DP3010 30V / 10A High Power Wide Voltage Mini Multi-functional Power Supply

The Mechanic DP3010 is a highly versatile, mini multi-functional power supply designed to deliver both precision and power in a compact form factor. With an adjustable output of up to 30 V at 10 A (300 W) and a wide AC input range (110–220 V), this unit is ideal for electronics repair, mobile-phone motherboard work, lab testing, and more.

Its built-in 20 W USB-PD port allows you to power or charge smartphones and laptops directly from the same device — making it a smart all-in-one solution. Real-time temperature monitoring ensures reliable operation: when the device heats above 45 °C, a fan automatically activates to cool things down.

Featuring a high-precision 4-digit LED display for voltage and current, the DP3010 supports touch-controlled operation with smooth feel, memory shortcuts (M1/M2), fast response to load changes, and multiple safety protections (constant-current, constant-voltage, over-current, over-temperature, short circuit).

Built into a rugged aluminium-alloy shell, this power supply is small (approximately 135 × 85 × 85 mm) and lightweight (0.93 kg), making it portable yet powerful.

⚙️ Key Features

• 30 V / 10 A high-power output (300 W) in a compact design
• Wide AC input range: accepts 110–220 V for global usability
• Built-in 20 W USB-PD port to power or charge phones and laptops
• Smart cooling: temperature-controlled fan activates beyond 45°C

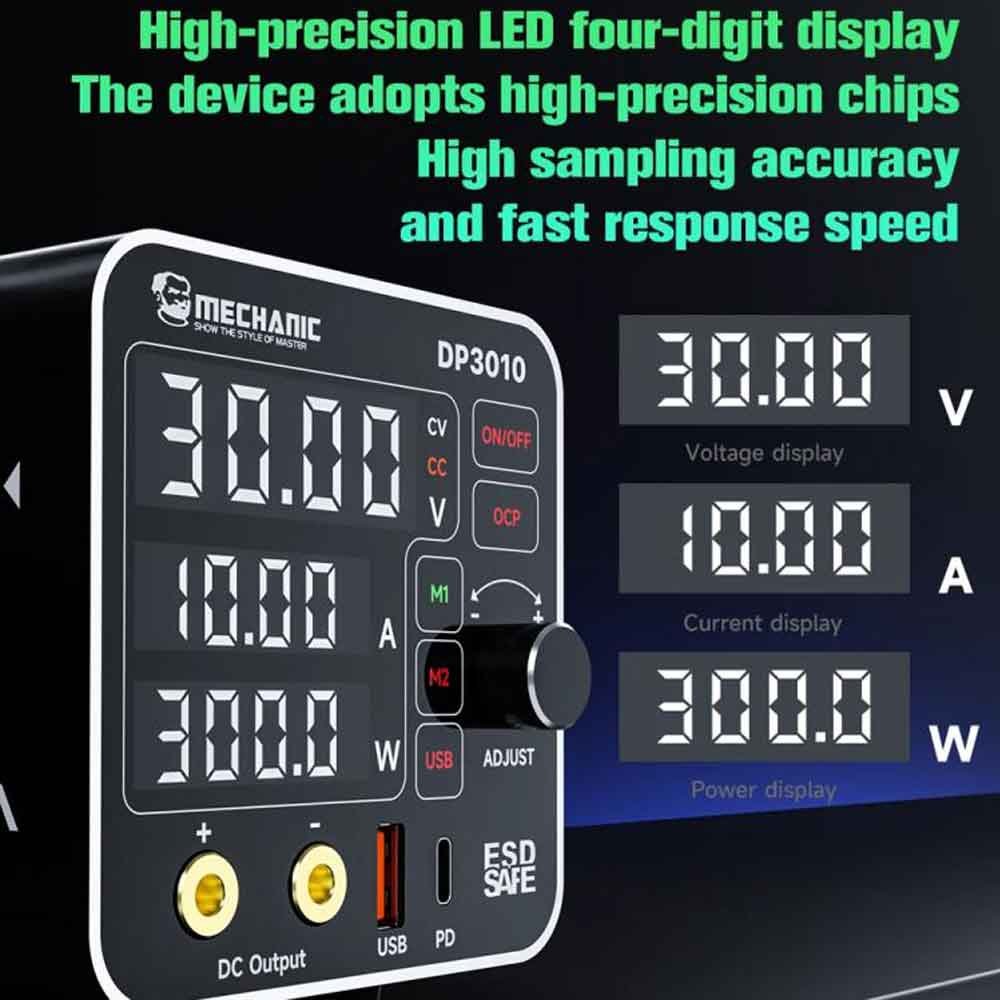

• 4-digit LED display with high-precision readings (0.001 V / 0.001 A)
• Touch-sensitive control for voltage and current adjustment with memory keys (M1/M2)
• Fast response circuit to smoothly adjust output under fluctuating load
• Comprehensive protection features: constant-current, constant-voltage, over-current, over-temperature, and short-circuit protection
• Compact and durable aluminium-alloy housing for portable use
• User-friendly rotary encoder knob: twist to change values, long-press to switch between voltage and current

📊 Technical Specifications

• Model: DP3010
• Input: AC 110–220 V
• Voltage Output Range: 0–30 V
• Current Output Range: 0–10 A
• Display Resolution: 0.001 V / 0.001 A
• Ripple & Noise: ~65 mV
• Weight: ~0.93 kg
• Dimensions: ~135 × 85 × 85 mm
