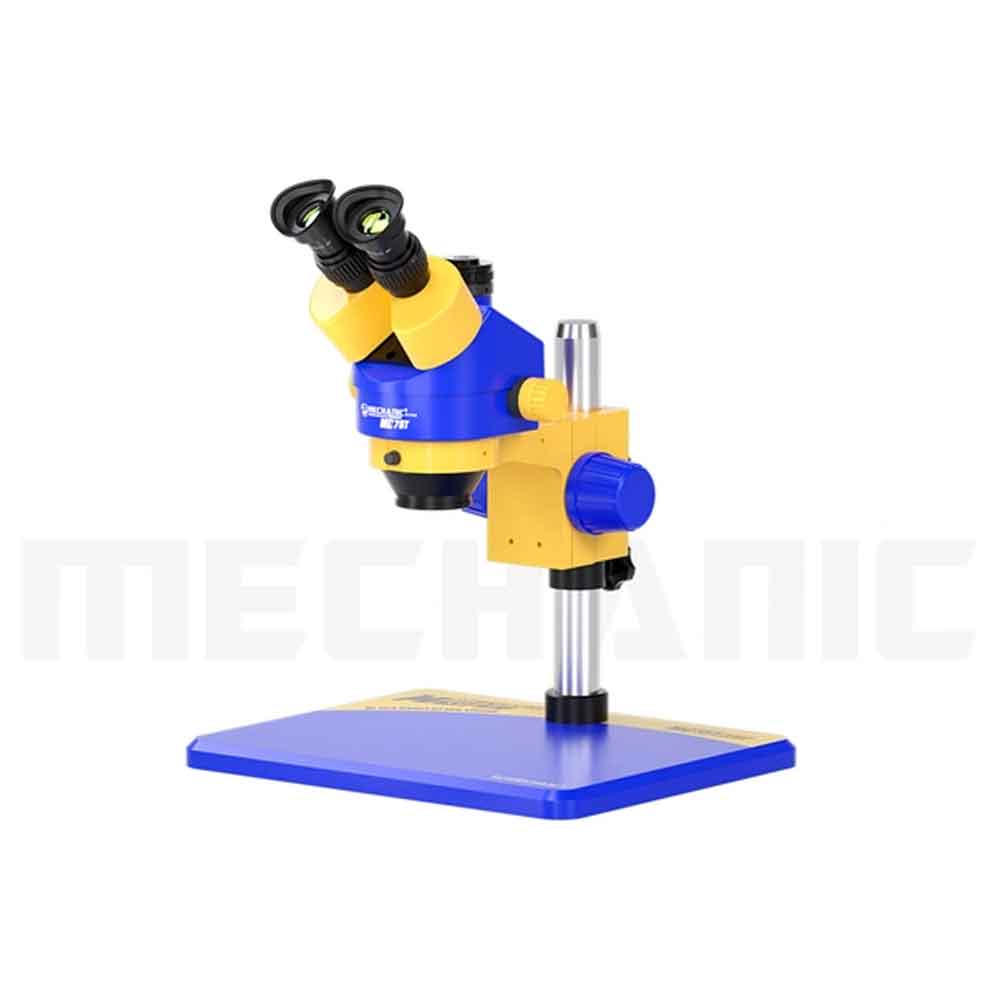

Mechanic MC75T-B11 Trinocular Stereo Microscope 0.7-4.5X With Continuous Zoom – New Updated

Description

Mechanic MC75T-B11 7X-45X Industrial Trinocular Stereo Microscope For Phone Maintenance

Mechanic MC75T-B11 7X-45X industrial grade trinocular zoom stereo microscope for mobile phone soldering repair, High quality large wide-angle trinocular stereo microscope with HD camera for iPhone mobile phone maintenance.

Product Features :

• Good pixels, high resolution, deep field, long working distance makes operation convenient and comfortable, CPU can connect to the external display
• Large base plate, convenient for a series of work, will not lose parts, the base plate size is 195x256x20cm
• LED lights can adjust the brightness, low power and safety, the inner size is 60mm, the input voltage is AC901-240V, the output power is 4.5W, the light color is white, the number of bulbs is 56pcs
• Can be external work, the eyepiece is clearer, the operation is easier

Product Description :

• High-definition optical objective lens: manufactured by precision craftsmanship, high-definition coating objective lens, pure copper lens barrel; no glare, clear picture, not letting go of every detail.
• High field of view, FMC antireflection coating, high light transmittance, high refractive index, lens diameter of 25mm, clear imaging, no vignetting.
• 0.4X CTV interface: The newly upgraded electronic eyepiece, the imaging is clearer than the ordinary TV interface, and the field of view is wider.

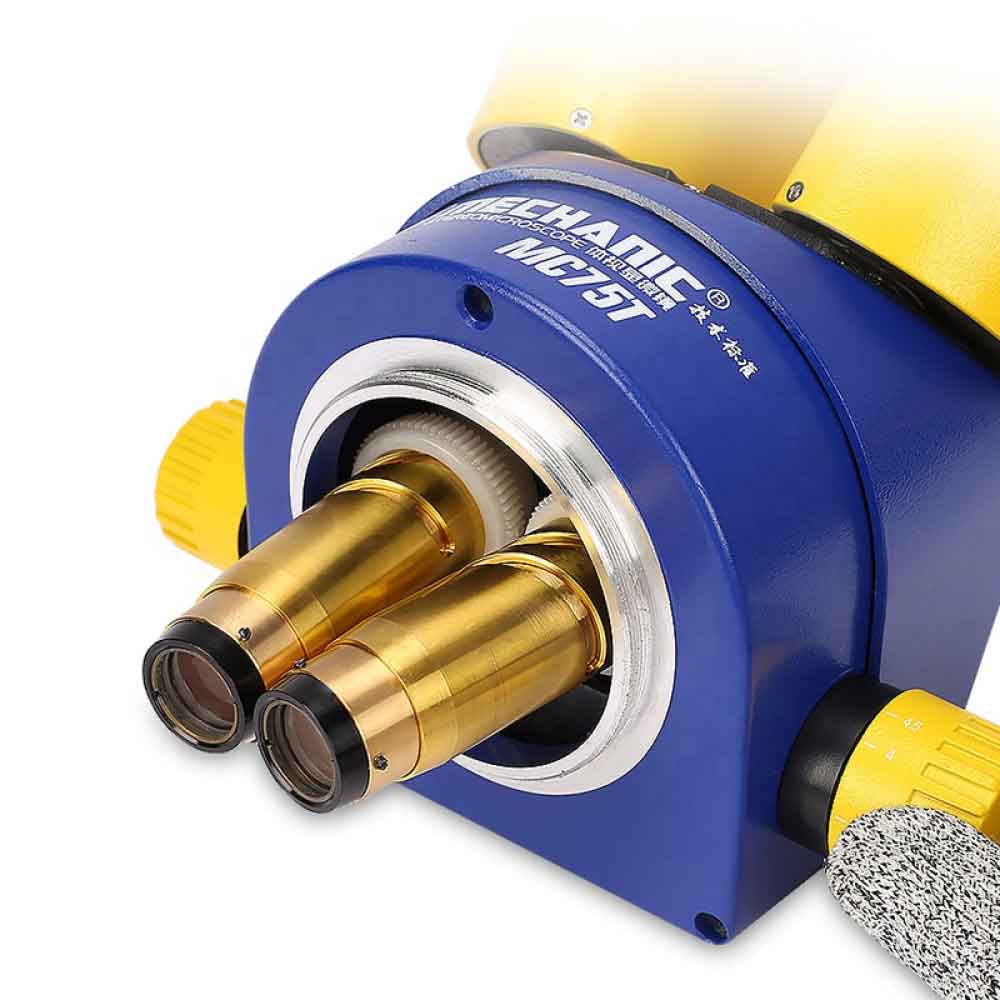

• 0.7-4.5X continuous zoom: optical system, continuous zoom with large magnification, the image is sharp without distortion, and high definition; it can correctly focus on the sample with a large concave and convex surface, so as to obtain a three-dimensional image.
• Focusing knob: The focusing gear bar is made of metal material, which is durable, and the precise focusing with magnification makes the image more clear.
• High-definition coated dust-proof mirror: Double-sided high-definition coated dust-proof mirror, which can effectively prevent dust, smoke, oil, etc. from entering the interior and causing blurred images to ensure good light transmittance without affecting imaging.
• High-brightness LED light: Using high-brightness LED cold light source, the color temperature is constant, close to natural light, and the brightness is stable. Equipped with a stepless adjuster, the brightness can be adjusted freely to provide adequate lighting for maintenance technicians.
• Multi-angle use: add fixed rod height-limiting accessories, which can fix the height, and the microscope can be rotated 360 degrees freely.

Product Specification :

• Item Name: Trinocular Stereo Microscope
• Brand: Mechanic
• Model: MC751-B11
• Magnification: 7X-45X (optional: 2.1X-180X)

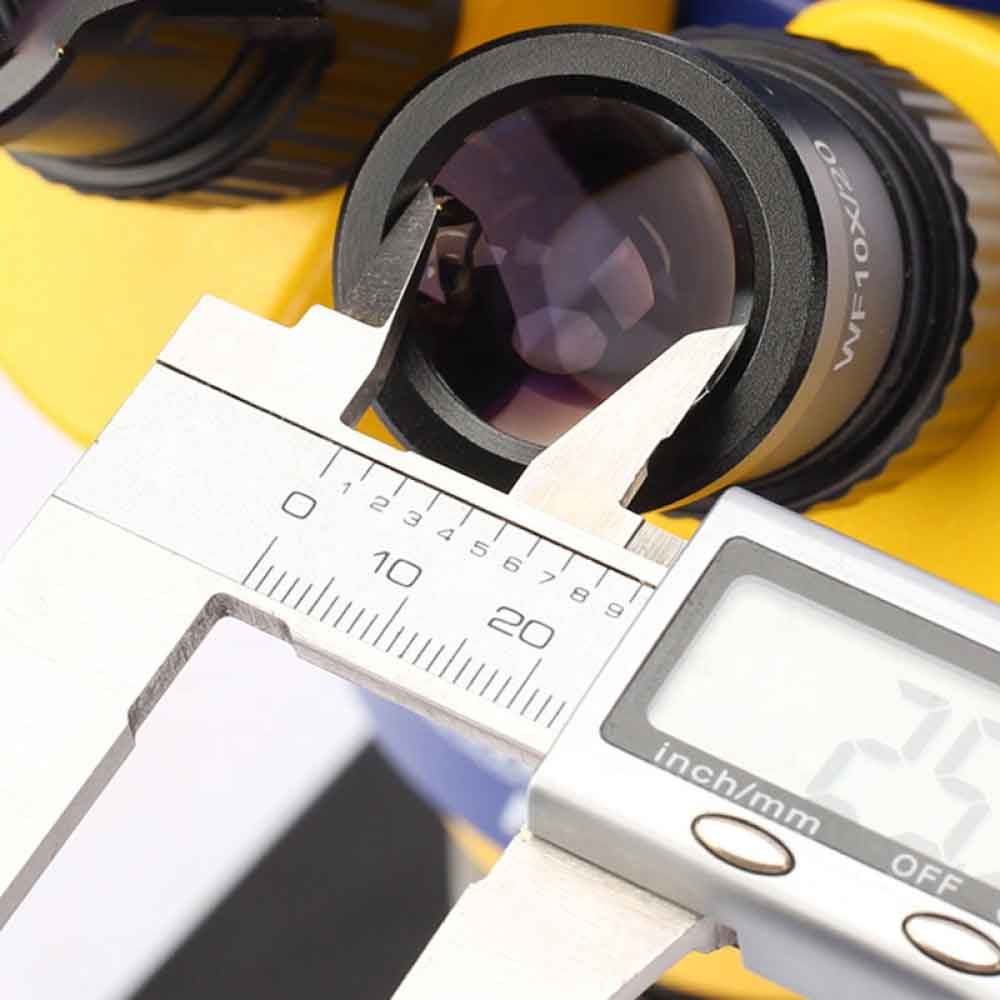

• Eyepiece: High eye point large field eyepiece WF10X / 25mm
• Zoom Objective: 0.7X-4.5X
• Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 0.7X-4.5X, interpupillary distance 54-76mm, bilateral visibility adjustable
• Working distance: 100mm (effective distance), select auxiliary objective, which can be extended to 30mm-287mm
• Auxiliary objective lens: 0.3X/287mm, 0.5X/165mm, 0.7X/120mm, 2X/30mm, 1.5X 45mm

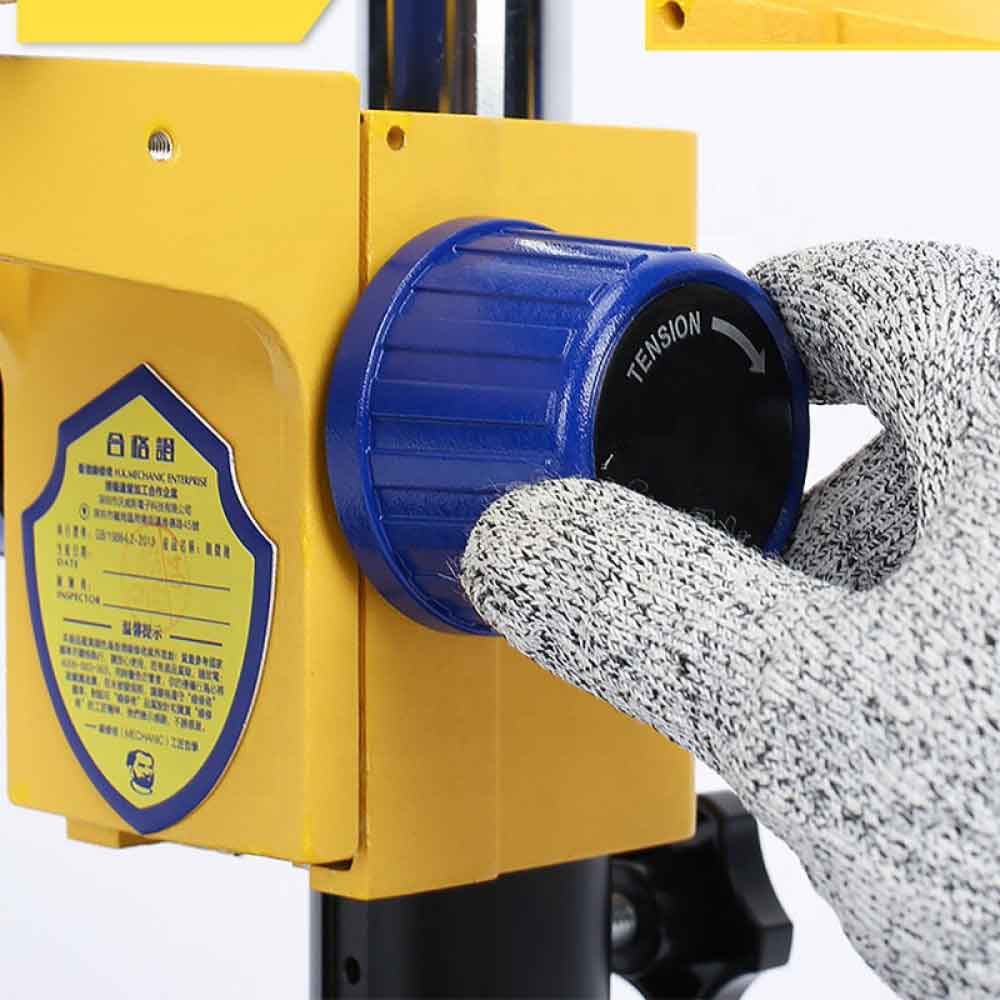

• Focusing bracket: The tightness of the focusing handwheel can be adjusted, lifting range is 50mm
• Base Plate Size: 195*256*20mm
• LED Lightsource: inner diameter 60mm, Voltage: AC 90-240V, Power: 4.5W, Light bulb: 56pcs

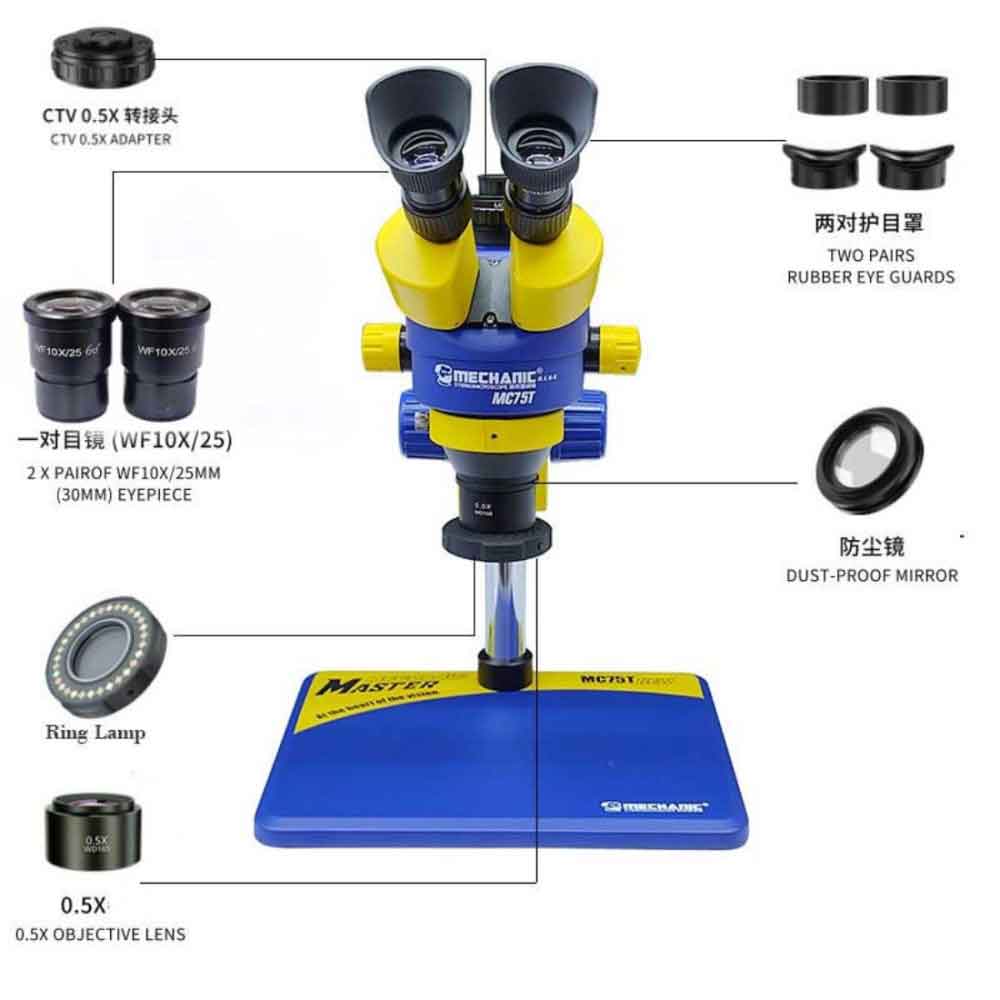

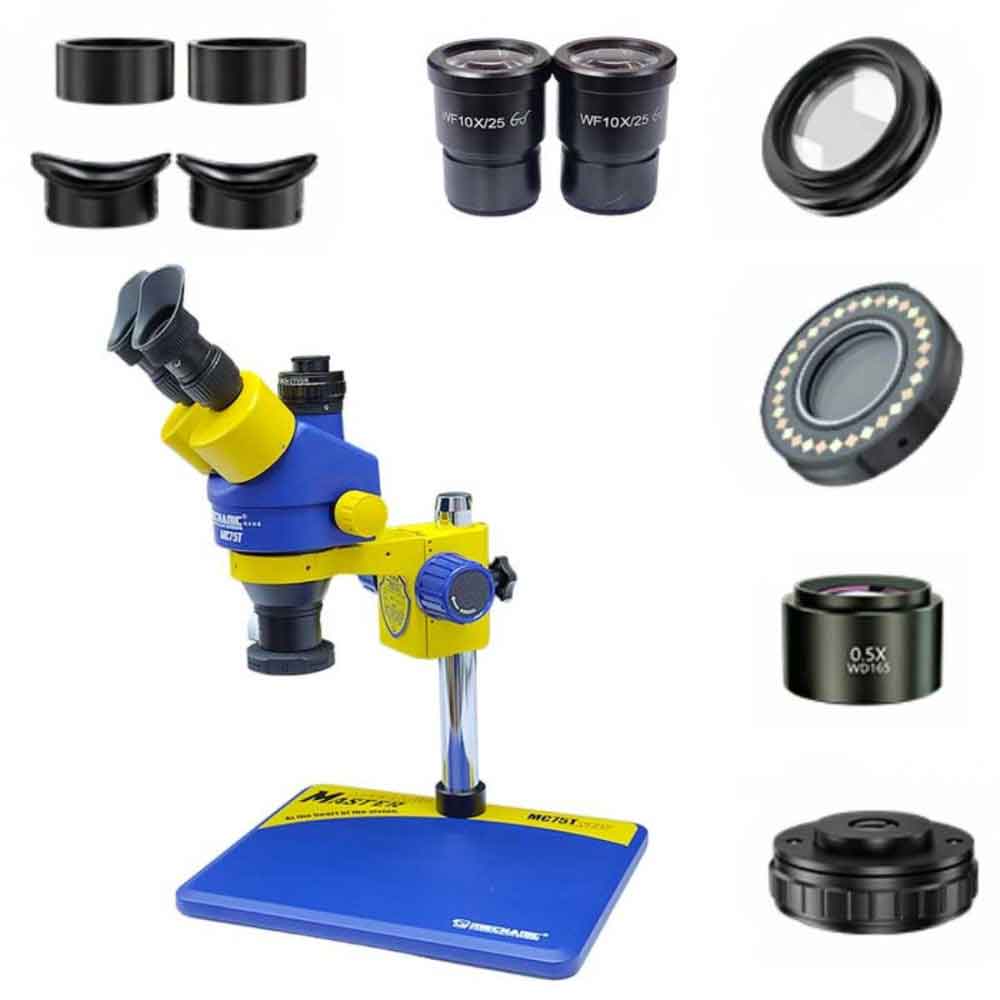

Package includes:

• 1x Microscope Head
• 1x Dust bag
• 1x 0.7 or 0.5x auxiliary lens (choose any one)
• 1x Dust proof mirror
• 1x Focusing arm
• 1x Metal Base (100 mm)
• 2x WF10X25 Eyepiece
• 4x Rubber eye guards
• 1x Double-sided loading plate
• 1x LED ring lamp ( New LS-3 )
• 1x Safety manual
