Description

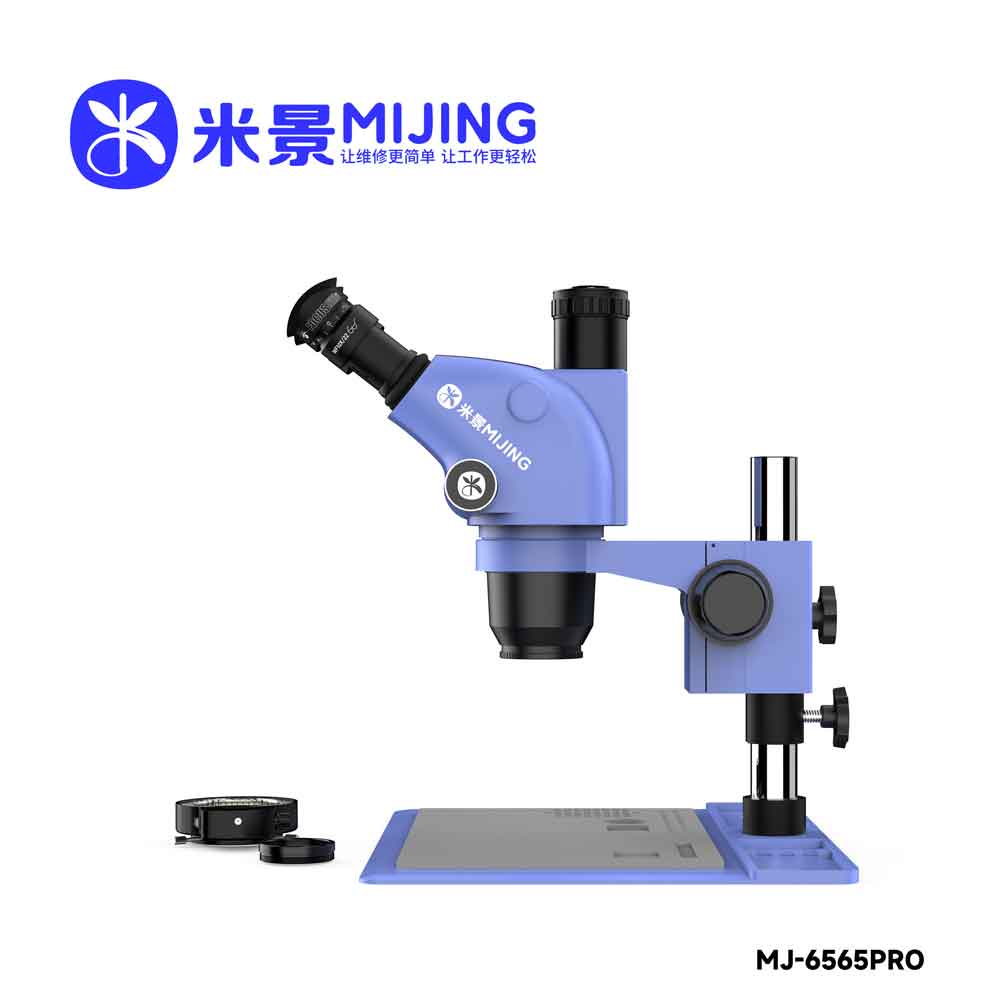

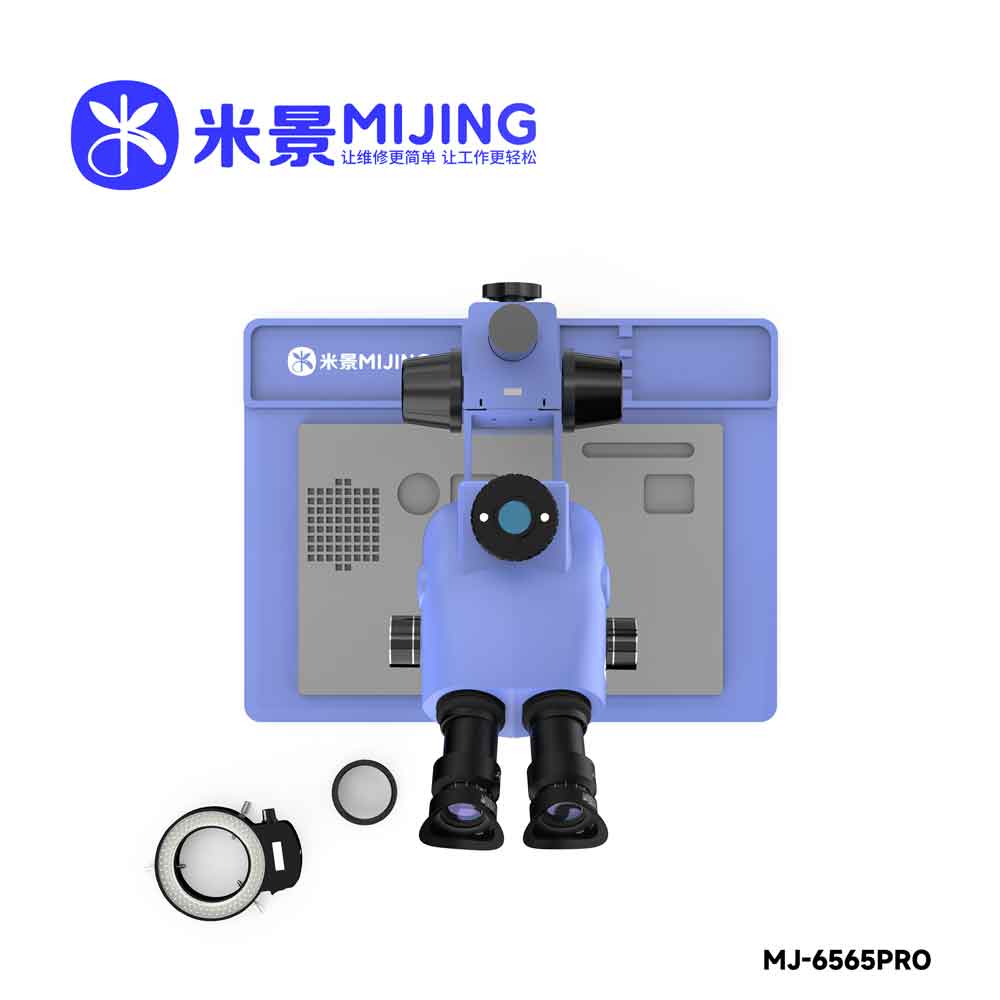

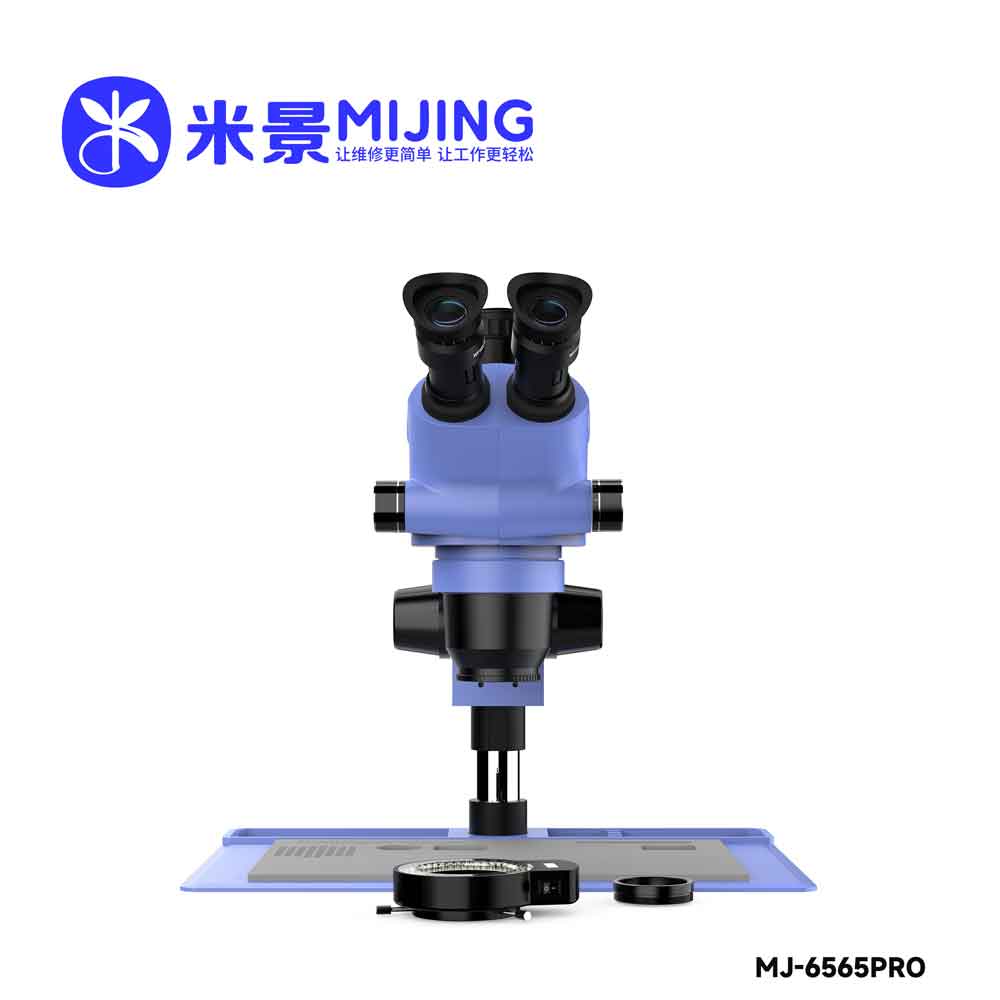

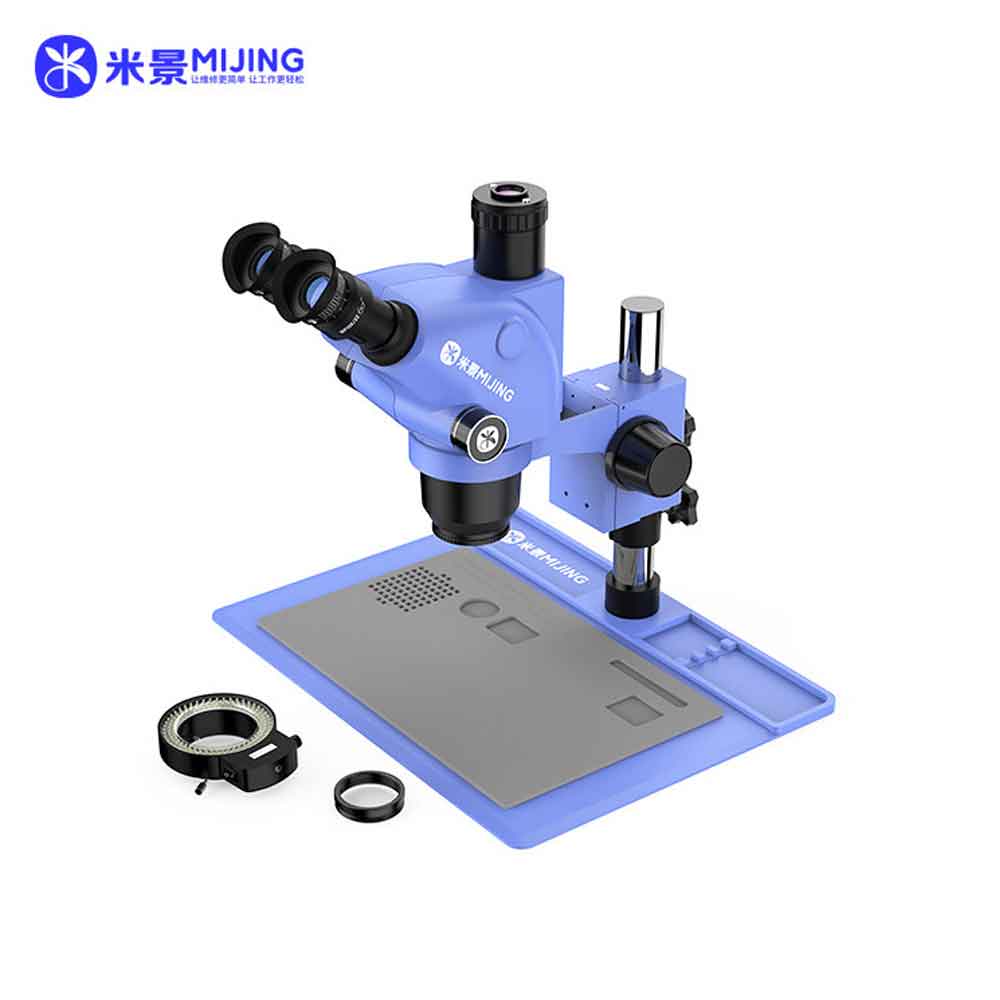

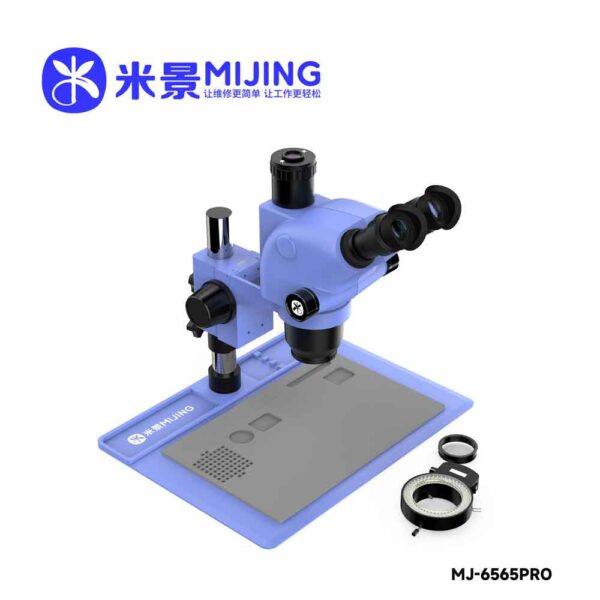

Mijing MJ-6565 Pro 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Base

• Fine concave-convex design, enhanced anti-slip, does not damage the phone film various problems.
• The meticulous and small round hole texture greatly increases the friction coefficient and is not easy to slip off.
• Smooth and smooth, no burrs, no damage to the phone when used.
• The bottom is non-slip, fits the table firmly, not easy to slide.
• Four-sided multi-scale design, accurate measurement, and convenient measurement of the area.
• A multifunctional aluminum alloy base can fix your microscope, aluminum alloy mat can protect your phone motherboard from static electricity damage.
• High Precision maintenance pad is widely used in repairing mobile phone motherboards, also green oil, solder paste, screwdriver, chip, material, assemble&disassemble tools, and other phone repair consumable items can be put in this storage pad, which is easy to take.
• An integrated pad can prevent scratching with welding workbench rubber.

Specification :-

• Magnification : Continuous zoom 6.5X to 65X.
• Head : 45-degree inclined 360-degree swiveling trinocular.
• Eyepiece : WF10X/22MM
• Objective : 0.65-6.5X
• Camera connector : 0.5X
• Monitor and eyepiece : Synchronous zoom
• Accessories : 144 adjustable LED lights & dust proof Lens

Support Parameters :-

• Column aperture : Φ32mm
• Lens aperture : Φ76mm
• Center distance : 155mm
• Lifting range : 50mm

Wide-angle Eyepieces 10X/22 :-

• Magnification : 10X
• Wide field of view 22mm
• Matching size : 30mm
• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.5X CTV Lens :-

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
• The adapter ring can use LCD to focus, this kind of focus method is manual focus.
• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

LED Ring Light :-

• Input : AC 100~240V 50/60Hz
• Output: DC 12V, Max 700mA
• Light color : White
• Number of lights : 144 LEDs
• Inside diameter : 60mm

Package includes :-

• 1x Microscope
• 1x Aluminum Alloy Plate
• 1x 144 LED Light
• 1x Objuctive lens 0.5x/0.7x(optional)
• 1x Dustproof Lens
• 1x 0.5X CTV Lens
• 1x Silicone Pad
