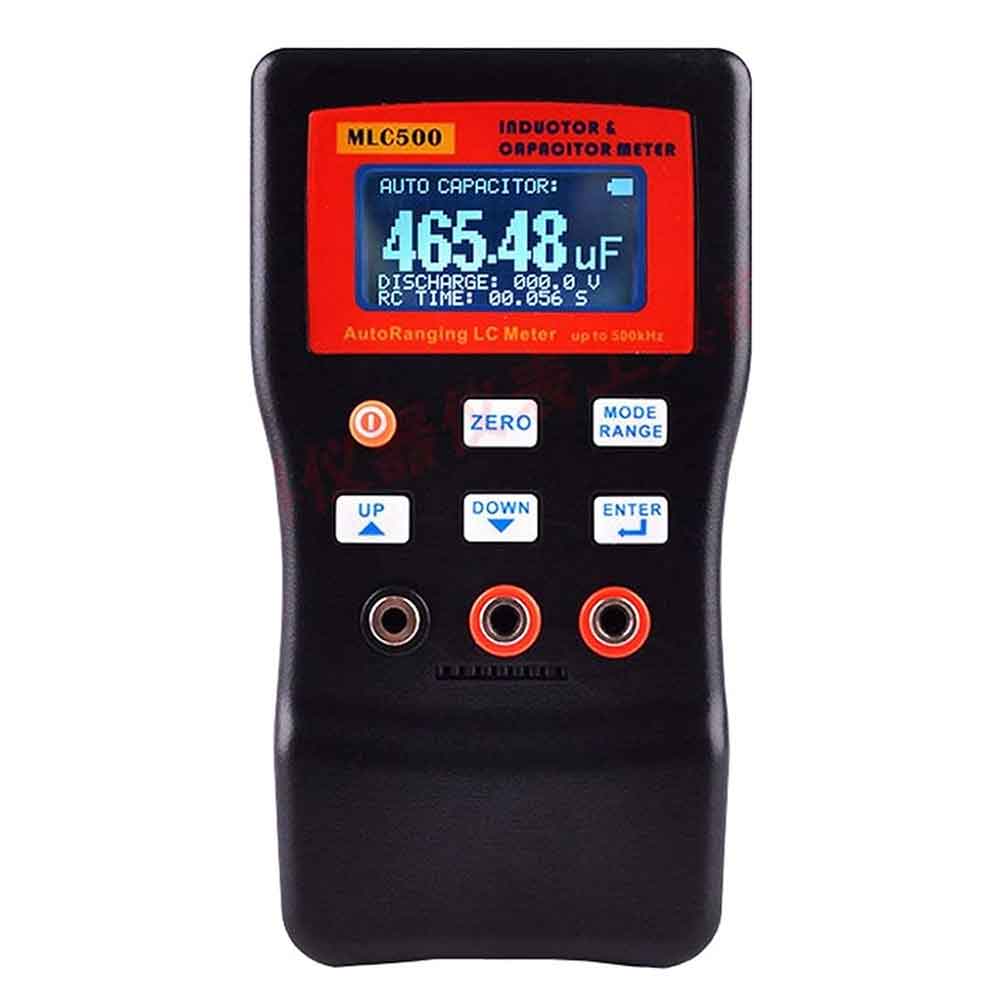

MLC-500 High Precision Auto Ranging Lc Meter Professional Capacitance Inductance Table 500 Khz Capacitance Meter Multimeter

Description

[vc_row][vc_column][vc_column_text]

MLC-500 High Precision Auto Ranging Lc Meter Professional Capacitance Inductance Table 500 Khz Capacitance Meter Multimeter

Features:

• Features:
  1.Fully auto-ranging designed, drive up to 500 KHz.
  2.High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH.
  3.High stability and measurement range for L/C.
  4.Large LCD display with backlight, easy to read.
  5.USB PC program, can take record and pass and fail component sorting function.
  6.Capacitor discharge terminal and capacitor storage voltage display.
  Descriptions:
  1.This MLC500 LC meter is auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement.
  It provides very stable and high resolution measurement up to 5 digits.
  Specifications:
  Model: MLC500
  Material: Plastic
  Color: Black LCR Testing
  Parameter: Main
  Parameter: LC Testing
  Frequency: C: 10 to 500Khz, L: 10 to 360Khz
  Testing Method: Auto Select LC and RC Oscillation
  Calibration: Power on Auto Calibrate with Internal Reference
  Capacitor Testing Voltage: ~1.5Vrms Best
  Tolerance: L: 1% + 1 Digit, C: 1% + 1 Digit LCD Update or Testing Time (vary on component value): <3/s, (e.g.100mF Capacitor < 30s) Range Selection: Automatically Zeroing: Open / Short Circuit Terminal: Mini- USB (Virtual Com Port) Display Range: C–0.00pF ~ 100.000mF(pF/nF/uF/mF)           L–0.000uH ~ 100.000H(uH/mH/H)           Hz (LC Oscillation Frequency)–0 ~ 900000Hz           (s) (RC Constant Time)–0.000 ~ 99.999 LCD Display: 128×64 Dot Matrix, with Backlight Number of Testing Terminal: Main 3, Secondary 2 Battery: 2 * AA 1.5V Battery (not included) Reading Display: Max. 99999 Item Size: Approx 14.5x8x3cm/5.7×3.1×1.2in Item Weight: 151.2/5.3oz Package Informations: Package Size: 170x100x50mm/6.63×3.9×1.95in  Package Weight: 410g/14.35oz  General Box Package   Package Included: 1 x Capacitance Meter 1 x USB Cable 2 x Probes 1 x Manual Notice: 1.Discharge capacitor before testing. 2.Please don’t connect under testing device during power on, it will affect the initialization.
