MS201 Microscope With HD Digital Camera

MS-201 Digital Video Microscope With HD Digital Camera Mini Stand +56 LED Lights +130X Long Lens

Elevate your electronics repair, PCB inspection or fine-detail work with the MS201 Microscope With HD Digital Camera — a versatile digital microscopy solution that combines sharp optics, flexible magnification, and high-definition video output. Whether you’re reworking mobile-phone boards, inspecting solder joints, performing quality control or delicate assembly tasks, this microscope delivers the clarity and flexibility you need.

The built-in 1/3″ CMOS HD camera captures crisp video at 1280×720 resolution at 60 frames per second, outputting live feed via HDMI or VGA — easily viewable on any monitor, projector, or HDMI-compatible TV. With continuous zoom magnification from 8X to 130X and a long-focus C-mount lens providing a working distance between 50 mm and 155 mm, MS201 gives ample space and flexibility for soldering tools or probes beneath the lens. A 56-LED adjustable ring light ensures bright, shadow-free illumination and adjustable brightness to suit ambient conditions — essential for solder-joint inspection and delicate micro-work. The compact camera-stand setup offers stable mounting, making this microscope ideal for both professional technicians and hobbyists alike.

Compact, powerful and easy to set up — MS201 is a dependable digital microscope for any electronics workbench, quality-control station or DIY rework desk.

Key Features

• HD Video Output via HDMI/VGA: 1280×720 @ 60 FPS CMOS camera streams live video directly to monitor, projector, or TV — no PC needed.
• Wide Magnification Range (8X–130X Zoom): Smooth zoom from 8X up to 130X to inspect both larger boards and fine solder joints with precision.
• Long Working Distance (50–155 mm): Generous working distance provides enough space to maneuver soldering irons, tools or components under the lens.
• Adjustable 56-LED Ring Light: Built-in LED ring light with adjustable intensity offers bright, uniform, shadow-free illumination — essential for detailed inspection and soldering tasks.

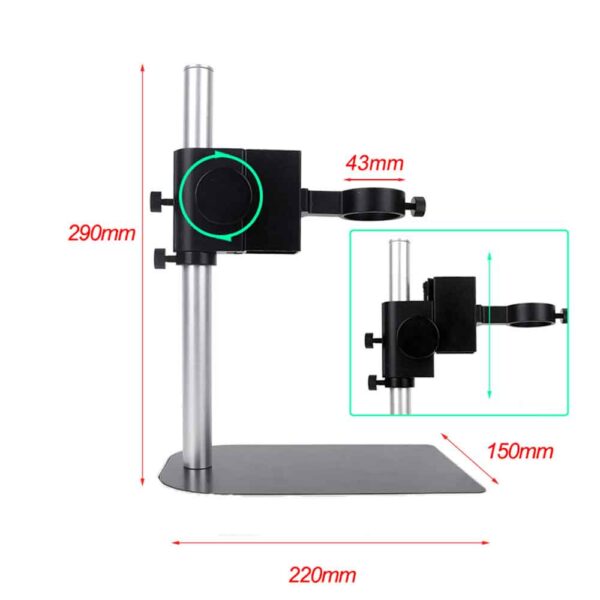

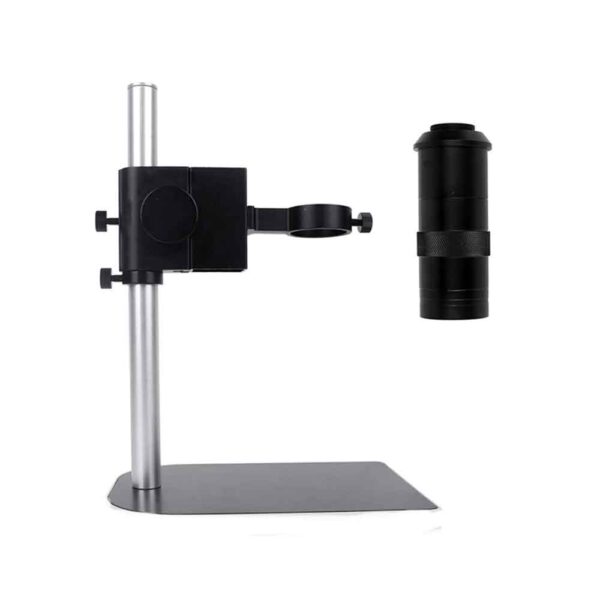

• C-Mount Lens & Stand Set: Includes C-mount lens and metal stand holder for stable mounting and easy positioning of camera and workpiece.
• Plug-and-Play Setup: Supports direct connection to HDMI/VGA display devices; no complicated software installation required — easy for quick inspections or live demonstrations.
• Compact & Portable Build: Lightweight camera-stand assembly makes it convenient to fit on small workbenches or for mobile repair setups.


  Technical Specifications

  Specification	Detail
  Camera Sensor	1/3″ CMOS
  Video Output	1280 × 720 @ 60 FPS, HDMI & VGA output ports
  Magnification	8X – 130X continuous zoom (with C-mount lens)
  Working Distance	50 – 155 mm (long-focus lens)
  Illumination	56-LED adjustable ring light, variable brightness, shadow-free illumination
  Power Input	AC 100-240 V, 50-60 Hz, auto-switching
  Connectivity	HDMI and VGA video output — works with monitor, projector, or any display with HDMI/VGA input

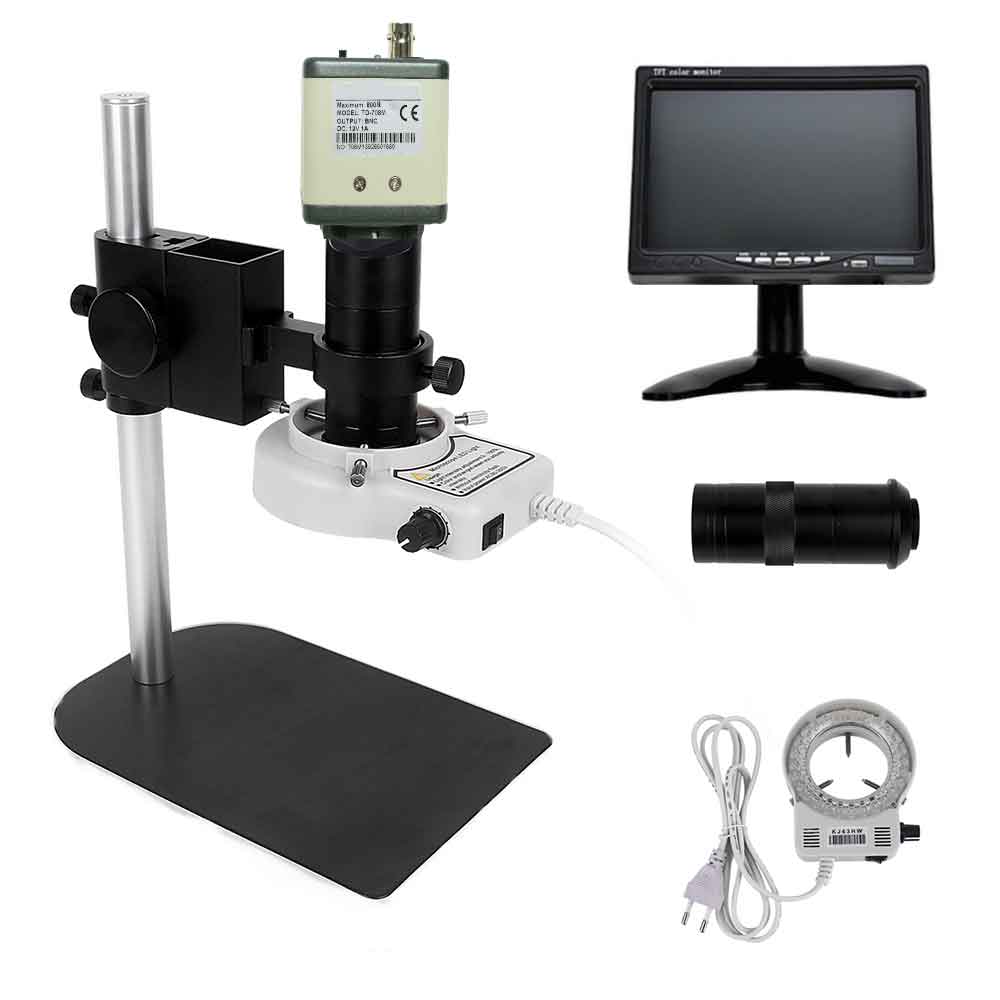

  Included in Package	HD camera, C-mount lens, metal stand holder, LED ring light, power supply
  Use Cases	PCB inspection, mobile board repair, solder-joint inspection, electronics rework, quality control, educational demonstration, small-parts assembly
