Description

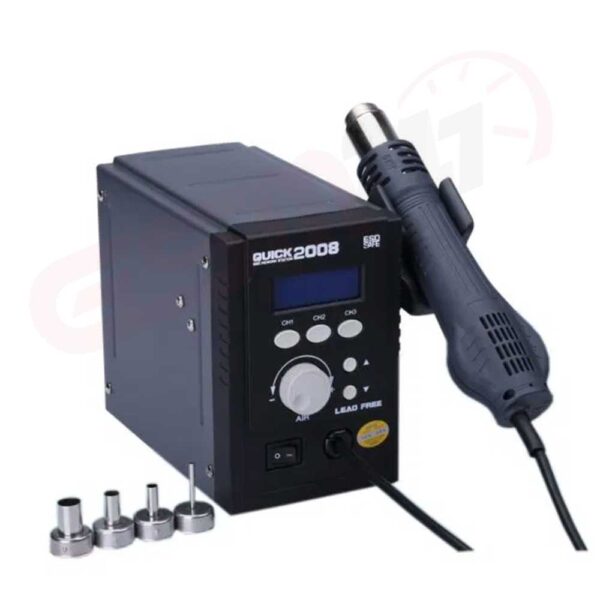

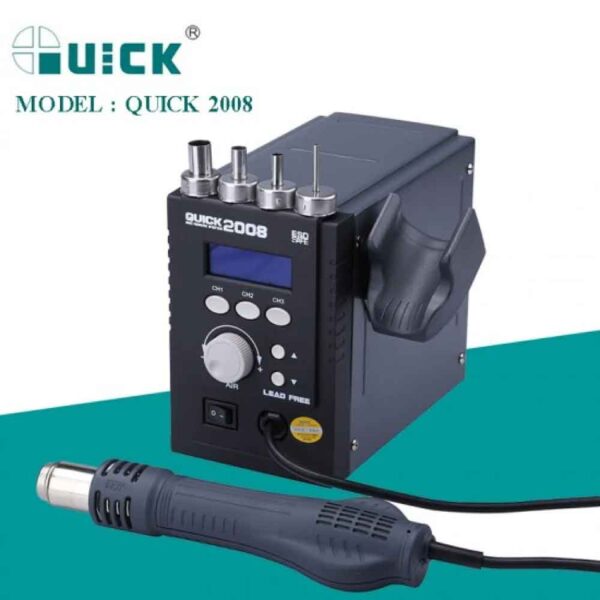

Quick 2008 Rework Station SMD

DESCRIPTION :
Product Details:
Precise temperature control/auto sleep/intelligent working channel/intelligent digital display/automatic cold air design
Can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboards, etc.

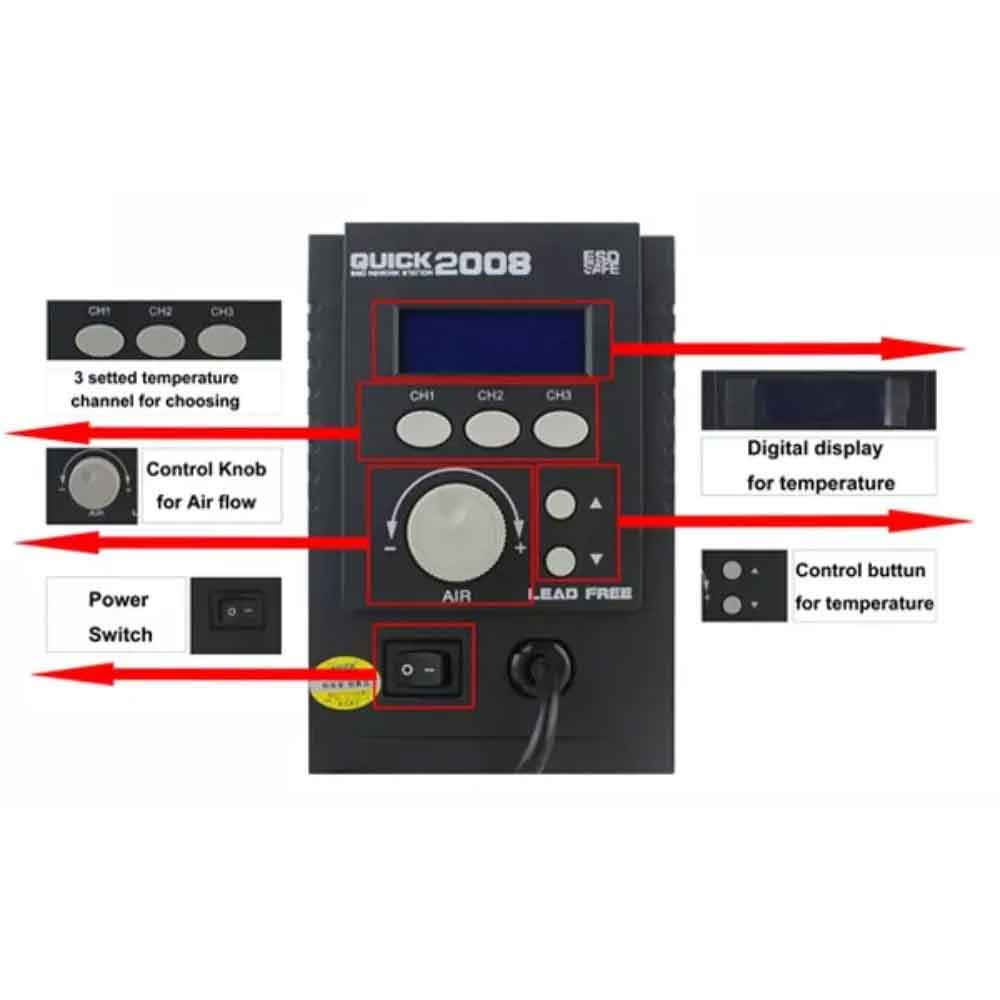

Support CH1/CH2/CH3 three-channel selection, click CH1/CH2/CH3 to select channel 1/channel 2/channel 3 respectively, long-press the channel button, you can store the current channel air volume and temperature value
Air gun sleep, cold air protection, longer heating core life, built-in brushless fan, soft rotating wind, uniform wind force, precise control
Magnetically controlled switch control, convenient real-time operation, put the handle on the handle rack and sleep immediately, with automatic sleep function, the parameters can be set in the sleep state
Short press the “+” or “-” button, the temperature will rise or drop by 1℃, long-press the “+” or “-” button, the temperature will rise or drop rapidly
Turn the knob clockwise to increase the air volume, and vice versa, to decrease the air volume. A large-range adjustment knob can quickly increase or decrease the air volume.
Digital LCD Real-time display of temperature and air volume, which can be adjusted freely, which is more convenient
The front panel of the host is equipped with a switch design, so there is no need to cut off the power frequently, and it is more convenient to cut off the power
Strip heat dissipation grid design, with significant heat dissipation effect and better performance
Product Specification:
Brand: Quick
Product Name: Hot Air Desoldering Station
Model: Quick 2008D+
Display Type: LCD
Power: 750W
Voltage: 110V/220V
Temperature: 100°℃-500℃
Air Volume Range: 1-100 Level
Air Volume: 30L/min(Max)
Product Size: 170*151*98mm
Package Size: 330*180*230mm
Net Weight: About 1.5kg
Gross Weight: About 1.9kg

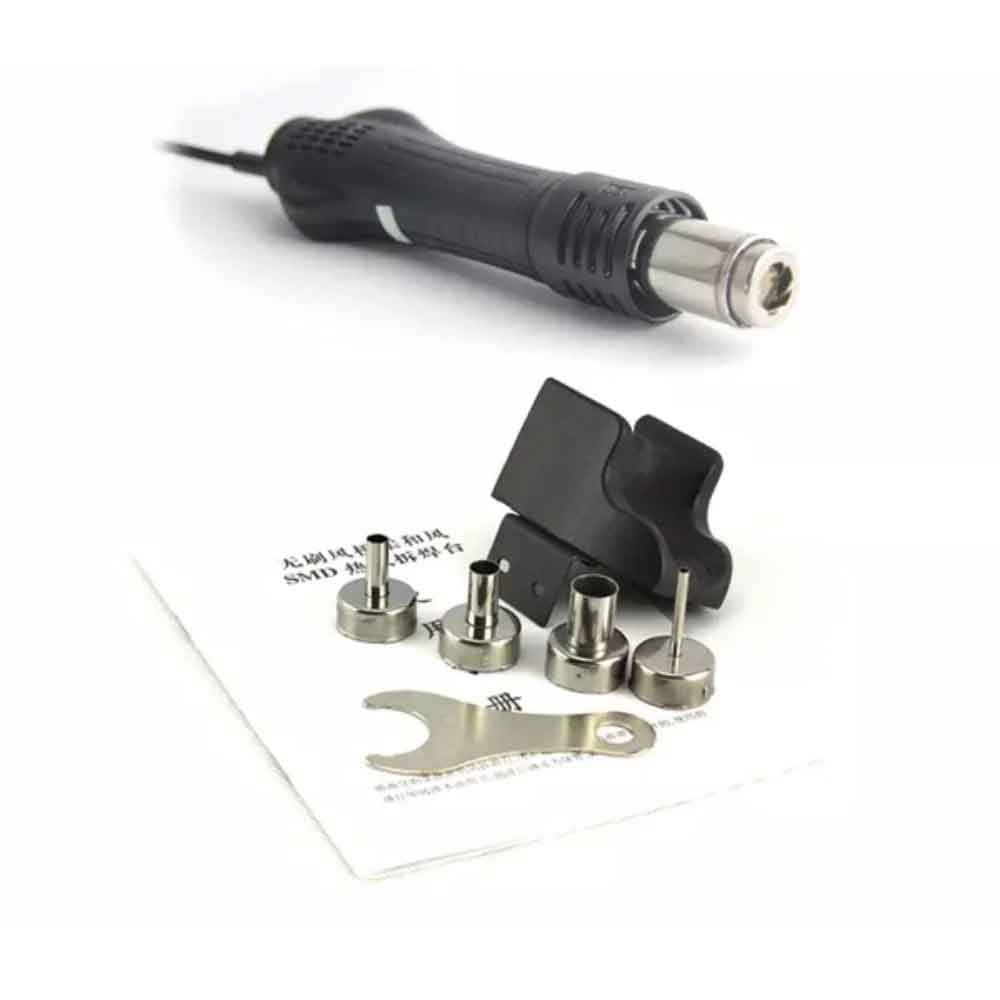

Packing Details:
1 Pcs of Quick 2008D+ 750W Lead-free Intelligent Digital Display Hot Air Gun
1 Pcs of Hot Air Gun Handle
1 Pcs of Air Gun Holder
3 Pcs of Air Nozzle
1 Pcs of Power Cord
