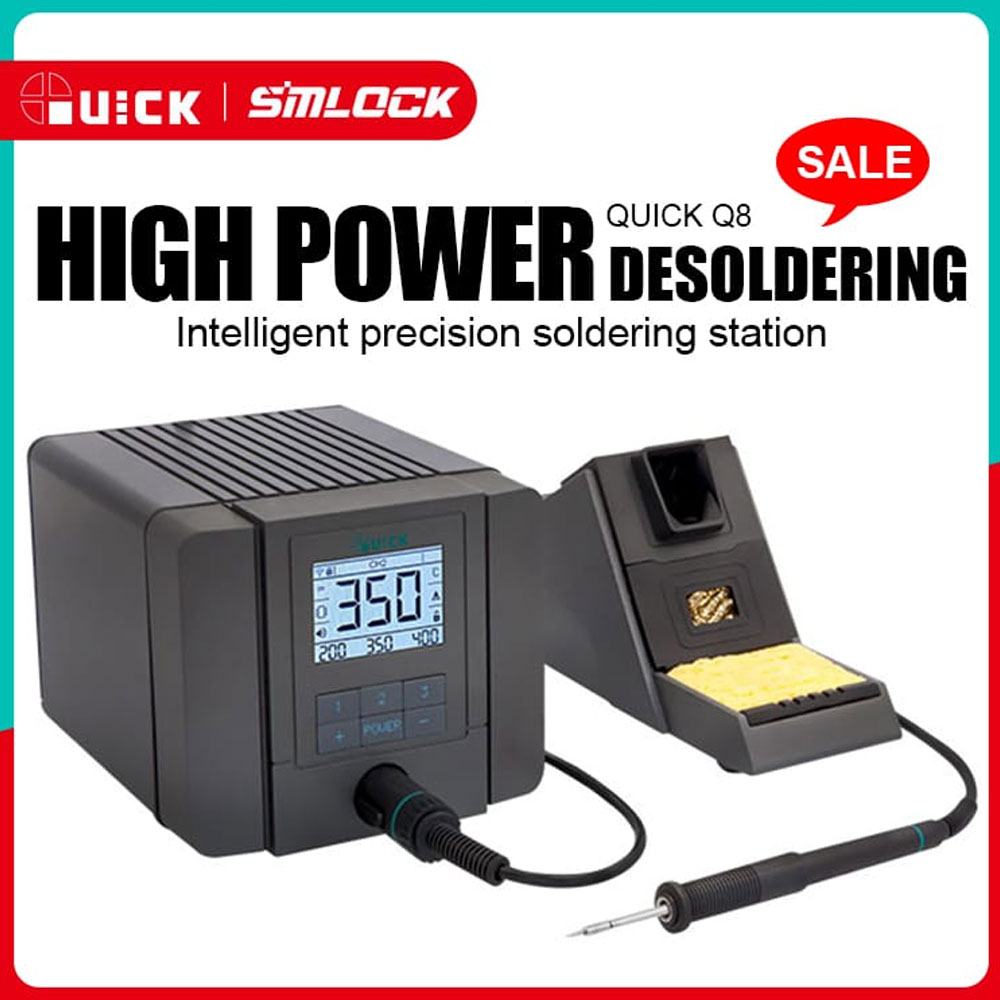

Quick Q8 Intelligent Precision Soldering Station – 150W Rapid Heating Digital Soldering Station
The Quick Q8 Intelligent Precision Soldering Station is a high-performance repair solution designed for professional technicians, electronics engineers, and mobile phone repair specialists. Equipped with a powerful 150W heating system, the Q8 can reach working temperature in as little as 2 seconds, significantly improving repair efficiency and workflow.
Featuring an advanced integrated heating core and soldering tip design, the station utilizes intelligent chip feedback technology to maintain highly accurate temperature control. The large LCD display provides real-time temperature monitoring, digital calibration, and intuitive operation through its multi-function control interface.
The Quick Q8 also includes intelligent sleep and auto-shutdown functions that help conserve energy while extending the lifespan of the soldering tip and heating components. With stable thermal performance, ergonomic handling, and professional-grade safety features, it is ideal for motherboard repair, microsoldering, PCB assembly, and precision electronic work.
Key Features
- Powerful 150W intelligent soldering station
- Ultra-fast heating to working temperature in approximately 2 seconds
- Precise temperature control with intelligent chip feedback
- Large LCD display with digital temperature calibration
- Temperature range from 100°C to 450°C
- Three-channel temperature memory presets
- Intelligent sleep and auto shut-off functions
- Real-time temperature and power monitoring
- High-temperature resistant silicone cable
- Ideal for PCB repair, microsoldering, and mobile phone motherboard work
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Quick Q8 Intelligent Precision Soldering Station |
| Model | Q8 |
| Power | 150W (Max) |
| Operating Voltage | AC 110V / 220V |
| Temperature Range | 100°C – 450°C |
| Temperature Stability | ±2°C |
| Heating Speed | Approximately 2 Seconds |
| Display | Large LCD Digital Display |
| Ground Resistance | < 2Ω |
| Tip-to-Ground Potential | < 2mV |
| Product Dimensions | 169 × 137 × 114 mm |
| Net Weight | Approx. 2.9 kg |
| Brand | Quick |
| Weight | 3.5 kg |
|---|---|
| Dimensions | 20 × 18 × 15 cm |
