Quick TS11 90W Smart Precision Soldering Station with HD Color Screen
Rs.6,298.00 Rs.8,000.00
The QUICK TS11 Soldering Iron Station is a professional 90W precision soldering station featuring integrated tip heating, HD color display, ESD protection, intelligent sleep mode, and rapid thermal recovery for advanced mobile and electronics repair.
Quick TS11 90W Smart Precision Soldering Station with HD Color Screen
The QUICK TS11 Soldering Iron Station is a high-performance 90W intelligent soldering solution designed for professional mobile repair technicians, electronics engineers, and precision soldering applications. Featuring an advanced integrated heating tip system, the TS11 delivers ultra-fast heat-up performance, precise temperature control, and exceptional thermal recovery for lead-free soldering tasks.
Equipped with a vibrant HD color display and user-friendly controls, this compact soldering station allows technicians to work efficiently while maintaining consistent temperatures. Its intelligent sleep and automatic shutdown functions enhance safety, extend tip life, and reduce energy consumption.
With ESD-safe protection, customizable temperature presets, and rapid heating technology, the QUICK TS11 provides the reliability and precision required for motherboard repairs, micro-soldering, SMD rework, and delicate electronic component assembly.
Whether you’re servicing smartphones, laptops, gaming consoles, or other electronic devices, the QUICK TS11 is built to deliver professional-grade soldering performance every day.
Key Features
- Powerful 90W output for fast and stable soldering performance.
- Integrated heating element inside the soldering tip for rapid thermal recovery.
- Ultra-fast heat-up capability with precise temperature feedback.
- Wide temperature adjustment range from 100°C to 450°C.
- HD IPS/LCD color display with dynamic temperature monitoring.
- Three programmable temperature preset channels for quick switching.
- Intelligent sleep mode and automatic shutdown functions.
- Built-in vibration sensor for automatic standby activation.
- ESD-safe design protects sensitive electronic components.

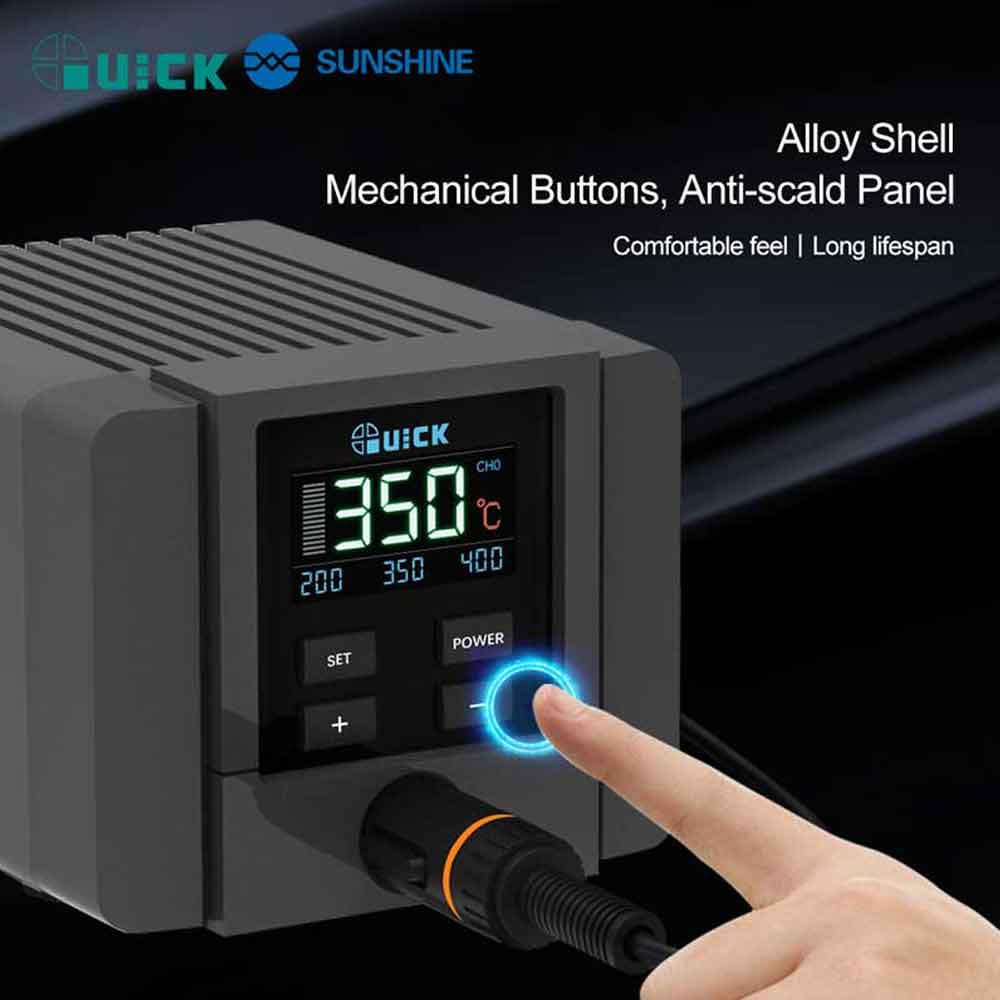

- Compact alloy housing with durable mechanical buttons.
- Supports lead-free soldering applications.
- Easy plug-in tip replacement for improved efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | QUICK TS11 |
| Power Consumption | 90W |
| Operating Voltage | AC 110V–220V |
| Temperature Range | 100°C–450°C (212°F–842°F) |
| Temperature Stability | ±2°C |
| Display Type | HD IPS/LCD Color Display |
| Heating Method | Integrated Tip Heating |
| Tip-to-Ground Potential | < 2mV |
| Tip-to-Ground Resistance | < 2Ω |
| Preset Channels | 3 Temperature Presets |
| Sleep Function | 5 Seconds – 99 Minutes |
| Auto Shutdown | 1 – 240 Minutes |
| ESD Protection | Yes |
| Dimensions | 116 × 149 × 93 mm |
| Weight | Approx. 1.8 kg |
| Weight | 3.0 kg |
|---|---|
| Dimensions | 35 × 30 × 30 cm |
