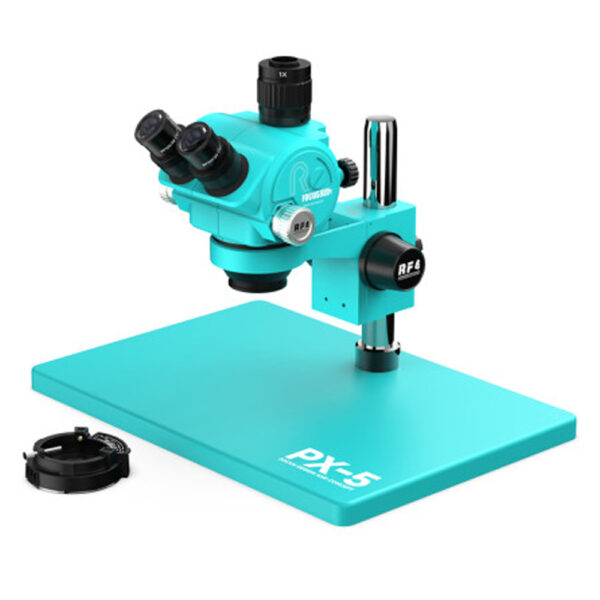

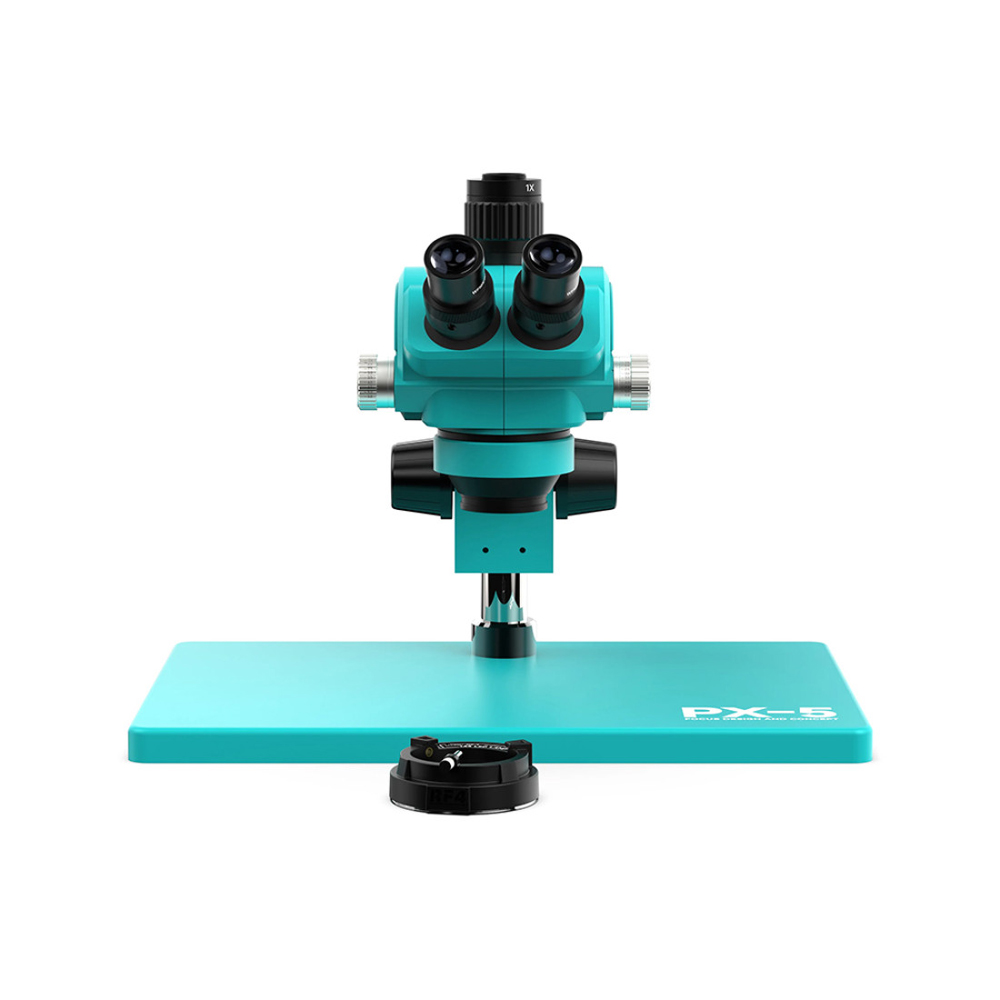

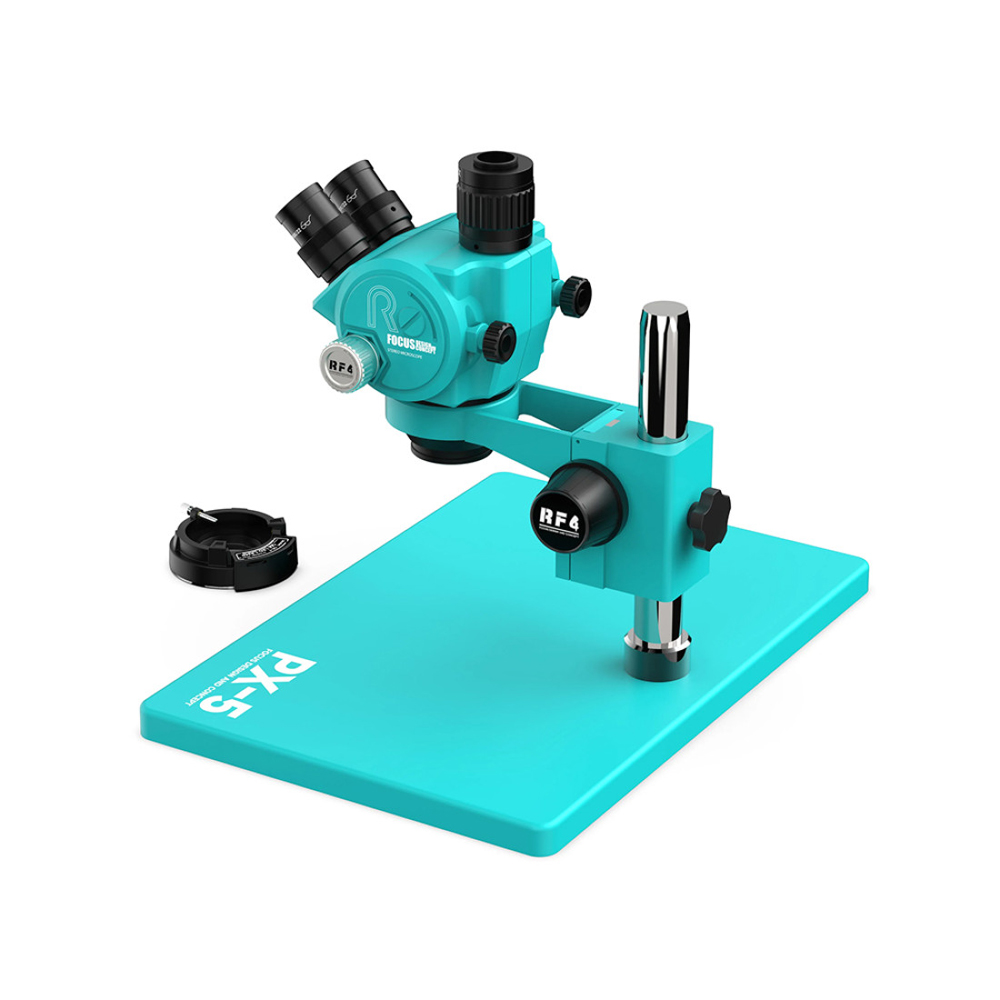

RF4 PX-5 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base

RF4 PX-5 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base

The RF4 PX-5 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base is a professional optical inspection system built for mobile phone motherboard repair, PCB inspection, BGA rework, IC replacement, precision soldering, electronics manufacturing, and laboratory applications. Equipped with a 7X–50X synchronous zoom optical system and a heavy-duty large repair base, this microscope delivers exceptional image clarity, superior depth perception, and excellent workstation stability for high-precision repair tasks.

Its premium trinocular stereo viewing head provides crystal-clear, distortion-free images with outstanding depth of field, allowing technicians to inspect IC chips, solder joints, BGA balls, FPC connectors, charging ports, jumper wires, PCB traces, and SMD components with maximum accuracy. The trinocular camera port is compatible with HDMI, USB, and CMOS industrial microscope cameras, enabling image capture, video recording, live demonstrations, and quality inspection.

The 7X–50X synchronous zoom mechanism allows smooth magnification adjustment while maintaining focus, helping technicians transition seamlessly from overall board inspection to detailed component-level work. The large heavy-duty base offers a spacious working platform with excellent stability, making it ideal for repairing smartphones, tablets, laptops, gaming consoles, and other electronic devices.

Designed with a precision focusing system and robust metal construction, the RF4 PX-5 is engineered for continuous professional use. Its ergonomic design minimizes vibration and ensures accurate positioning during delicate soldering, micro-inspection, and chip-level repairs.

Whether you’re performing motherboard diagnostics, BGA reballing, PCB analysis, or precision electronics assembly, the RF4 PX-5 7-50X Trinocular Stereo Microscope delivers the optical performance, flexibility, and durability required by professional repair technicians.

Key Features

• Professional 7X–50X synchronous zoom trinocular stereo microscope.
• High-definition stereo optics with excellent depth perception.
• Trinocular camera port compatible with HDMI, USB, and CMOS cameras.
• Smooth synchronous zoom with minimal refocusing.
• Heavy-duty large repair base for enhanced stability.
• Precision focusing mechanism for accurate microscopic inspection.
• Spacious working area for smartphones, tablets, and PCB assemblies.
• Durable metal construction for long-term professional use.
• Ideal for PCB repair, BGA rework, IC replacement, and electronics inspection.
• Suitable for repair workshops, laboratories, manufacturing, and quality control.

Technical Specifications
