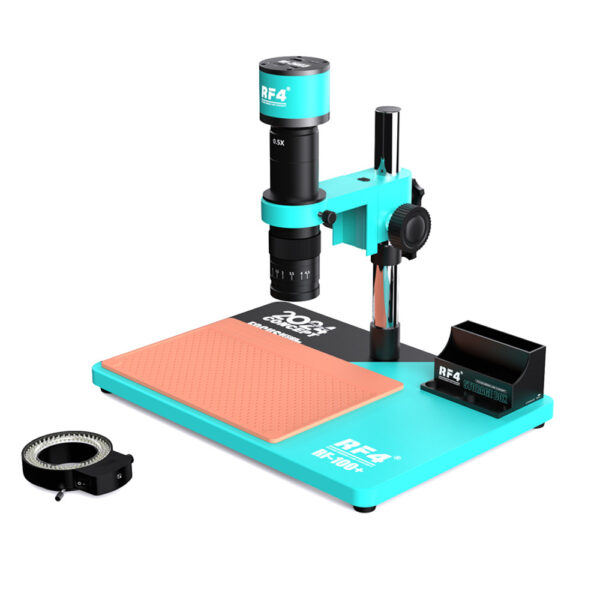

RF4 RF-100+ Monocular 180X Zoom Television Microscope with RF4 2KC3 Camera

RF4 RF-100+ Monocular 180X Zoom Television Microscope with RF4 2KC3 Camera

The RF4 RF-100+ Monocular 180X Zoom Television Microscope with RF4 2KC3 Camera is a professional digital microscope system designed for mobile phone repair, PCB inspection, motherboard diagnostics, IC rework, soldering, and precision electronics servicing. Combining a high-magnification monocular microscope with the RF4 2KC3 Full HD camera, this system provides clear real-time images for detailed inspection and repair work.

The microscope offers up to 180X zoom, making it suitable for viewing tiny electronic components, solder joints, IC chips, PCB traces, connectors, and other miniature parts. The supplied 0.5X auxiliary lens provides a working height of approximately 160–180mm, giving technicians useful space for tools and soldering operations beneath the microscope.

The integrated RF4 2KC3 camera features a 2-megapixel 1/3-inch CMOS sensor with 1600 × 1200 effective pixels. It supports HDMI/VGA video output and multiple display resolutions, allowing the microscope image to be viewed directly on a compatible monitor or display. Automatic white balance and exposure functions help maintain a clear and balanced image during inspection.

An adjustable high-brightness LED illumination system provides additional lighting for the working area. Brightness can be adjusted according to the inspection environment, helping technicians achieve better visibility when working on dark or reflective PCB surfaces.

The camera also provides useful image-control functions including brightness, contrast, color saturation, exposure adjustment, horizontal/vertical mirror, negative mode, and adjustable crosshair settings. These features make the RF-100+ suitable for both repair operations and visual demonstration or inspection applications.

With its sturdy aluminum alloy base, adjustable column mechanism, digital camera system, and large working area, the RF4 RF-100+ 180X Zoom Microscope is an excellent choice for professional mobile phone repair shops, electronics laboratories, PCB inspection stations, and technicians performing precision chip-level repairs.

Key Features

• Up to 180X zoom for detailed microscopic inspection.
• Includes RF4 2KC3 Full HD digital camera.
• 2-megapixel 1/3-inch CMOS color sensor.
• Effective image resolution of 1600 × 1200 pixels.
• HDMI and VGA video output support.
• Automatic exposure and automatic white balance.
• Adjustable high-brightness LED illumination.
• 0.5X auxiliary lens provides approximately 160–180mm working height.
• Multiple display resolutions supported up to 1920 × 1080 at 60Hz.
• Digital image controls for brightness, contrast, saturation, and exposure.
• Adjustable crosshair functions for inspection and alignment.
• Suitable for mobile phone motherboard and PCB repair.
• Excellent for IC, SMD, solder joint, and component inspection.
• Includes HDMI cable, camera power adapter, and camera accessories.

Technical Specifications
