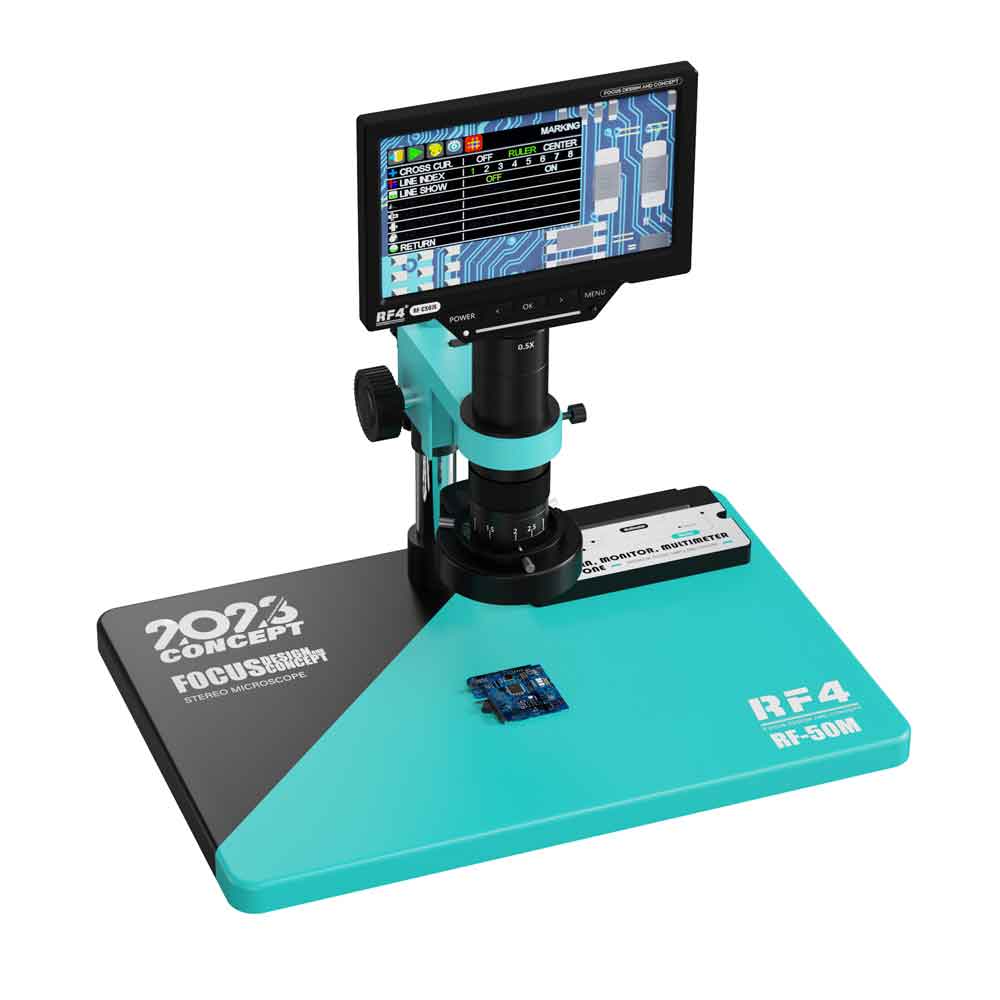

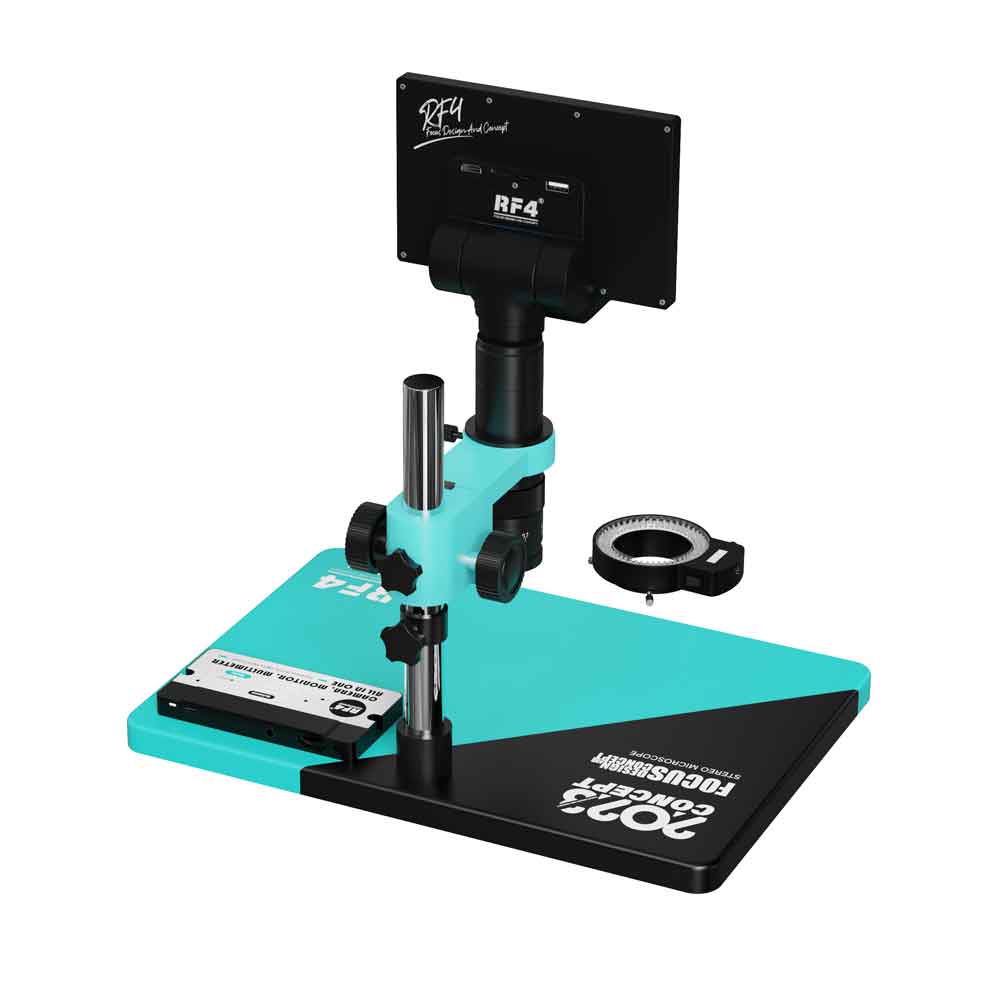

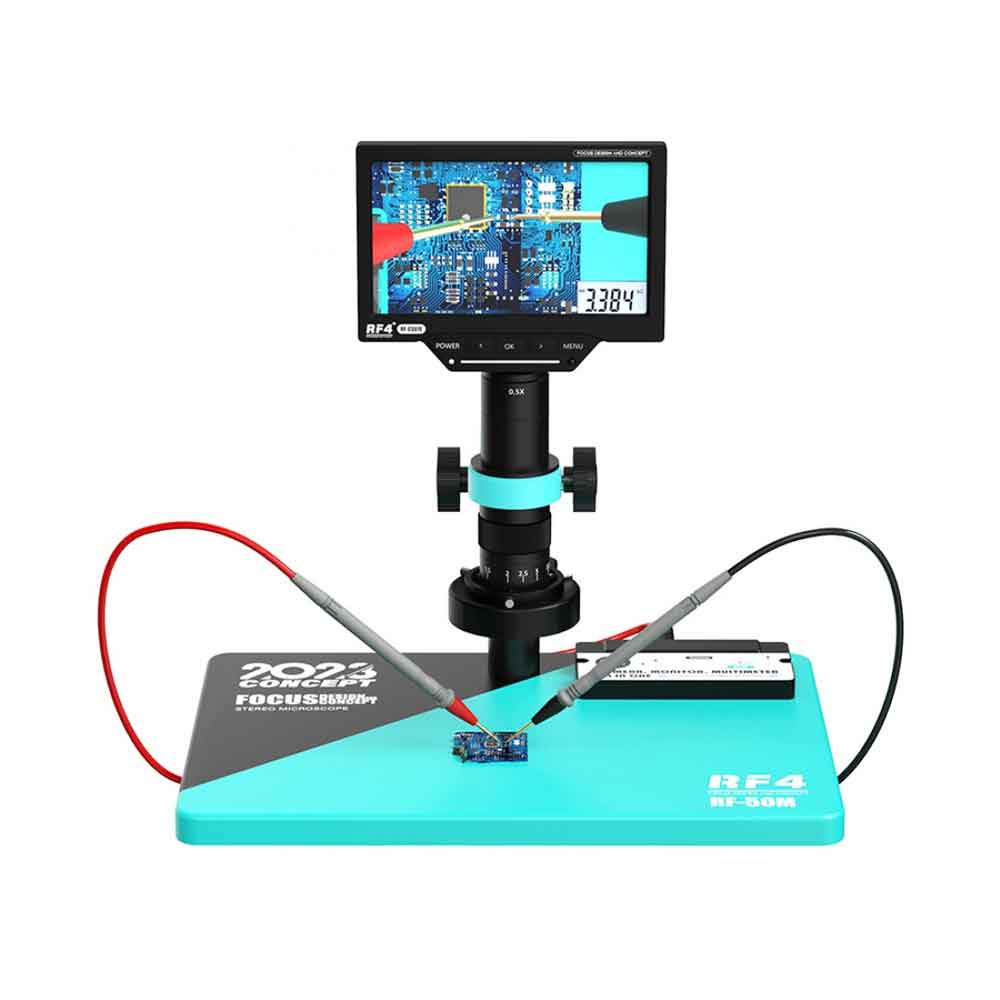

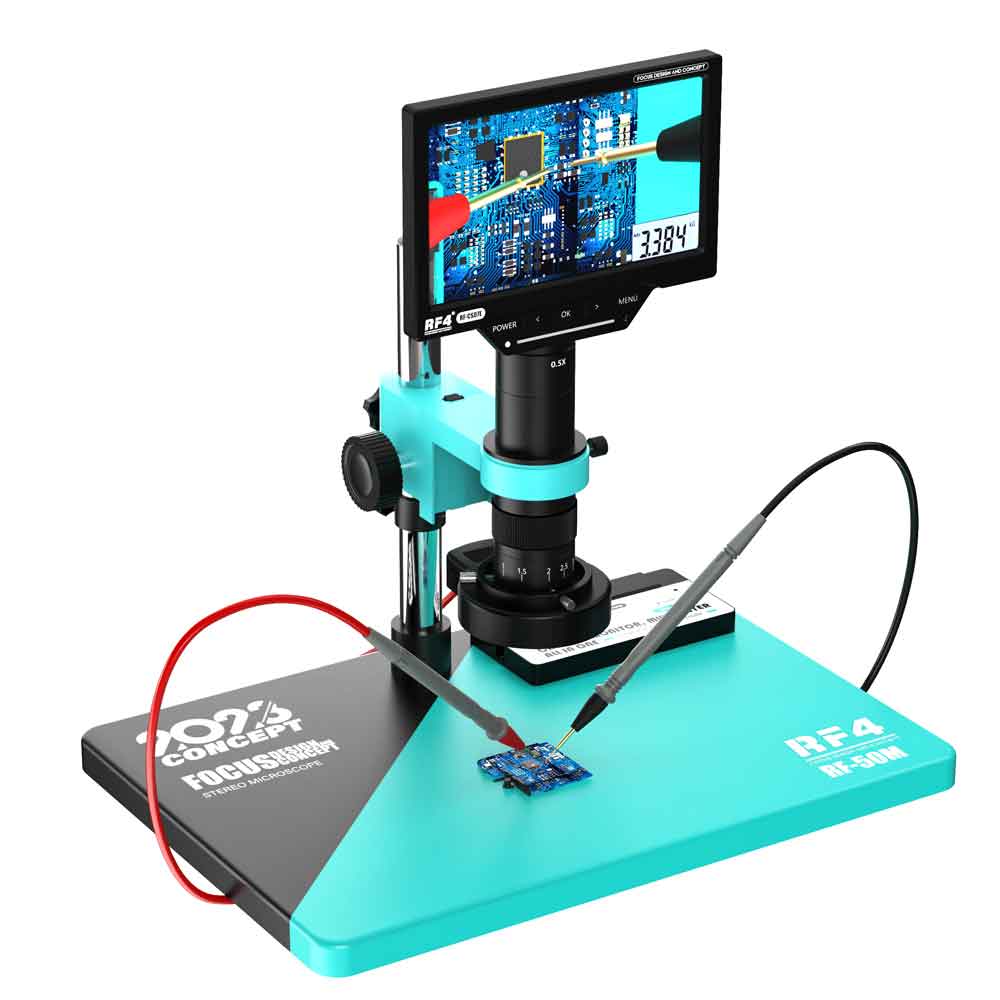

RF4 RF-50M Monocular Microscope With Inbuilt Multimeter Function (7 Inch Monitor) – With 0.5X Height Lens

Description

RF4 Video Camera display integrated Monocular 7-50X Zoom C-Mount Lens Microscope With Multimeter Functional Microscope

Advantage:

• Adopt color LCD screen, high definition and high lighting;
• 1080P30 ( Clear ) / 720P60（Smooth）design, no lag, no smear, fluent HD;
• Professional image processing DSP, 3D de-noise, restore colors and details really;
• Built-in HD lens
• Rotating lens barrel design, precise focusing and smooth feeling;
• Support picture, video record and playback function;

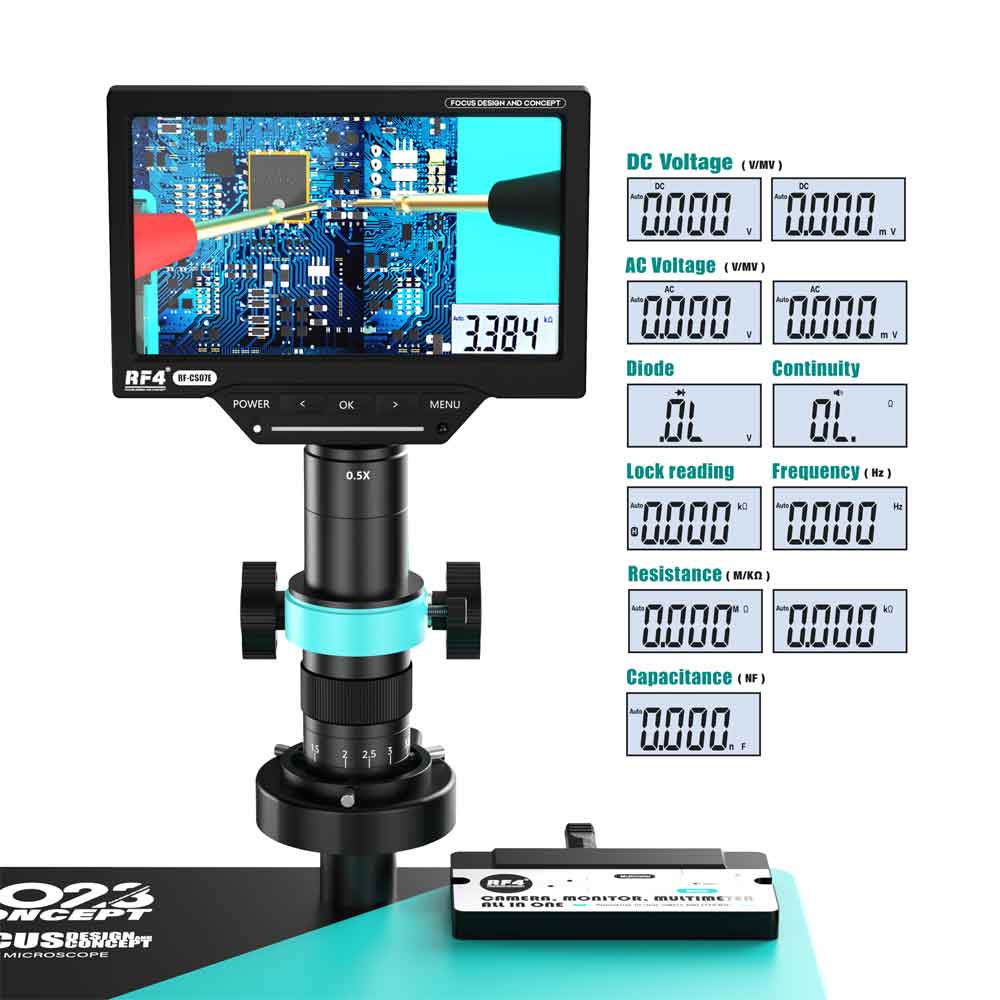

• Support multimeter function;
• Support HDMI+USB(UVC) output display;
• Support 1X~16X infinite magnification, clear and smooth;
• Support full screen freezing, left and right, up and down, 1/4 PIP comparison;
• Support cross and scale cursors;
• Support grid, and position , color , thickness are adjustable;
• Support AE lock, exposure compensation function;
• Support auto, manual and calibration white balance;
• Support WDR, contrast, saturation, sharpness are adjustable;
• Support image horizontal mirror and vertical flip;
• Support IR remote;
• Support 4GB ~ 64GB TF card
• Adopt TYPE-C 5V power supply, both positive and negative inserts are available

Specifications

• Screen size: 7.0 Inch
• Screen resolution: 1024×600
• Zoom rate: 7-50x
• Image sensor: 1/3 inch (BSI)
• Pixel size: 2um x 2um
• Image resolution: 2688×1512, 5376*3024 ( Interpolation )
• Video resolution: 1080P30（Clear）, 720P60（Smooth）
• HDMI resolution: 720P60
• USB resolution: 1080P20, 720P30 , WVGAP60
• Exposure control: AE lock, Exposure compensation (10 level adjustable)
• White balance: White balance: Auto, Manual (R、G、B 10 level adjustable) 、Calibration
• Image control: Ten level adjustment of contrast, saturation and sharpness
• Comparison of the PIP: Comparison of the PIP: Full screen, left and right, up and down, 1/4
• Grid: 8 groups, position, color, thickness adjustable
• Measurement: point, line, circle, angle (Optional)
• Multimeter: resistance, DC voltage, AC voltage, diode, on-off, capacitance, frequency
• Language: English, Simplified Chinese, Traditional Chinese
• IR Remote: Max 5 meters
• HDMI interface: TYPE-A
• USB interface: TYPE-C USB2.0
• Extended storage: Max support 64 G TF card
• Working distance: 10cm

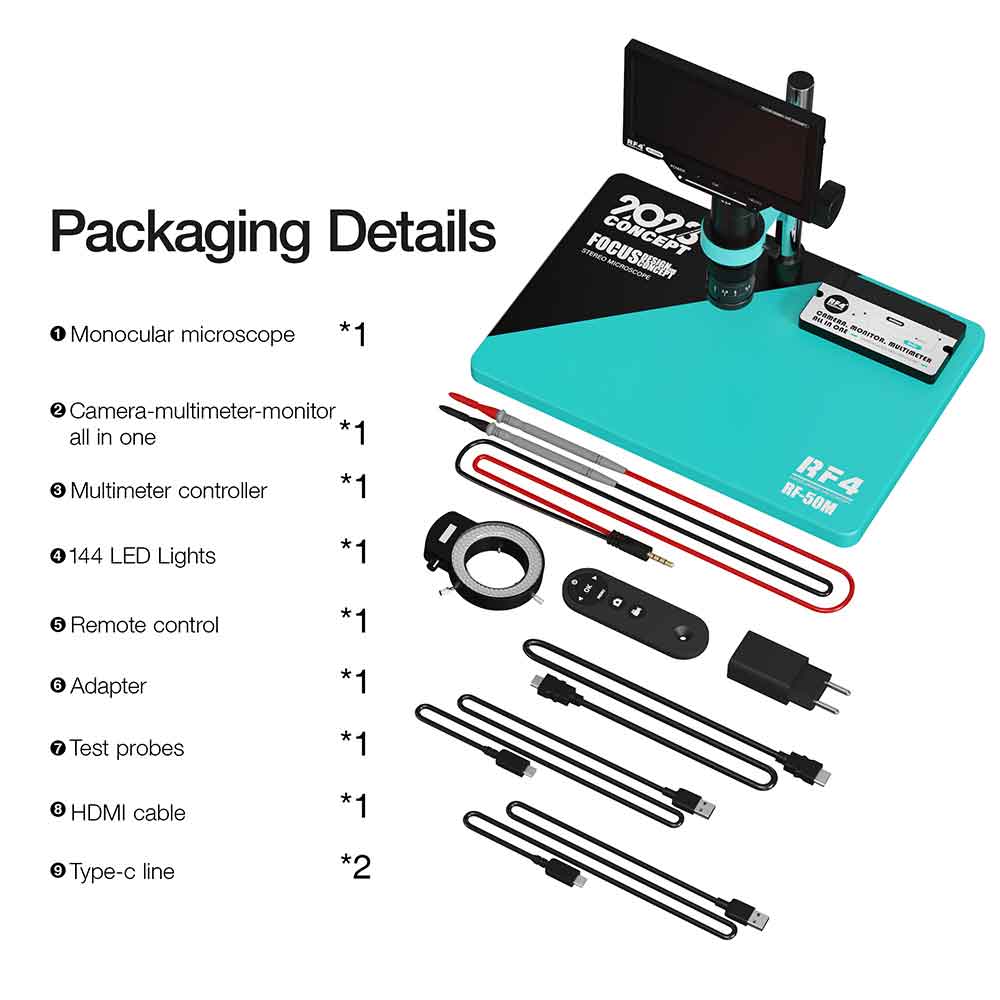

Package Content*

• 1x RF4 RF-50M Monocular Microscope
• 1x Monitor with Camera  (2in1 )
• 1x  Multimeter Controller
• 1x Meter Probe Cable
• 1x LED Light
• 1x Remote
• 1x Power Adaptor
• 1x HDMI Cable
