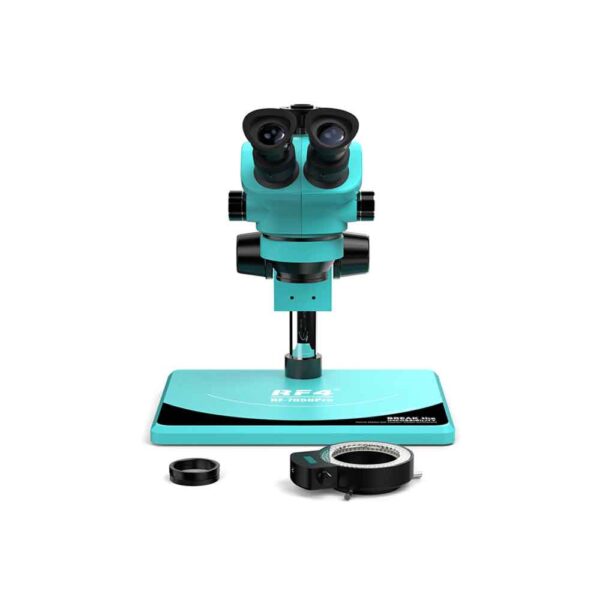

RF4 RF-7050 Pro Trinocular Microscope

RF4 RF-7050 Pro 2023 3D Continuous Zoom Trinocular Stereo Microscope (7X–50X)

The RF4 RF-7050 Pro 2023 Trinocular Stereo Microscope is a professional-grade optical tool engineered for precision mobile repair, PCB inspection, and micro-soldering applications. Featuring a 3D continuous zoom system (7X–50X) with gear locking, it delivers sharp, stable, and distortion-free magnification for working on IC chips, CPU, and motherboard components.

Its trinocular head allows simultaneous use of eyepieces and an external display via a 0.5X CTV camera lens, making it ideal for live monitoring, recording, and training purposes. The ergonomic 45° inclined head and 360° rotation ensure comfortable long-hour usage without fatigue.

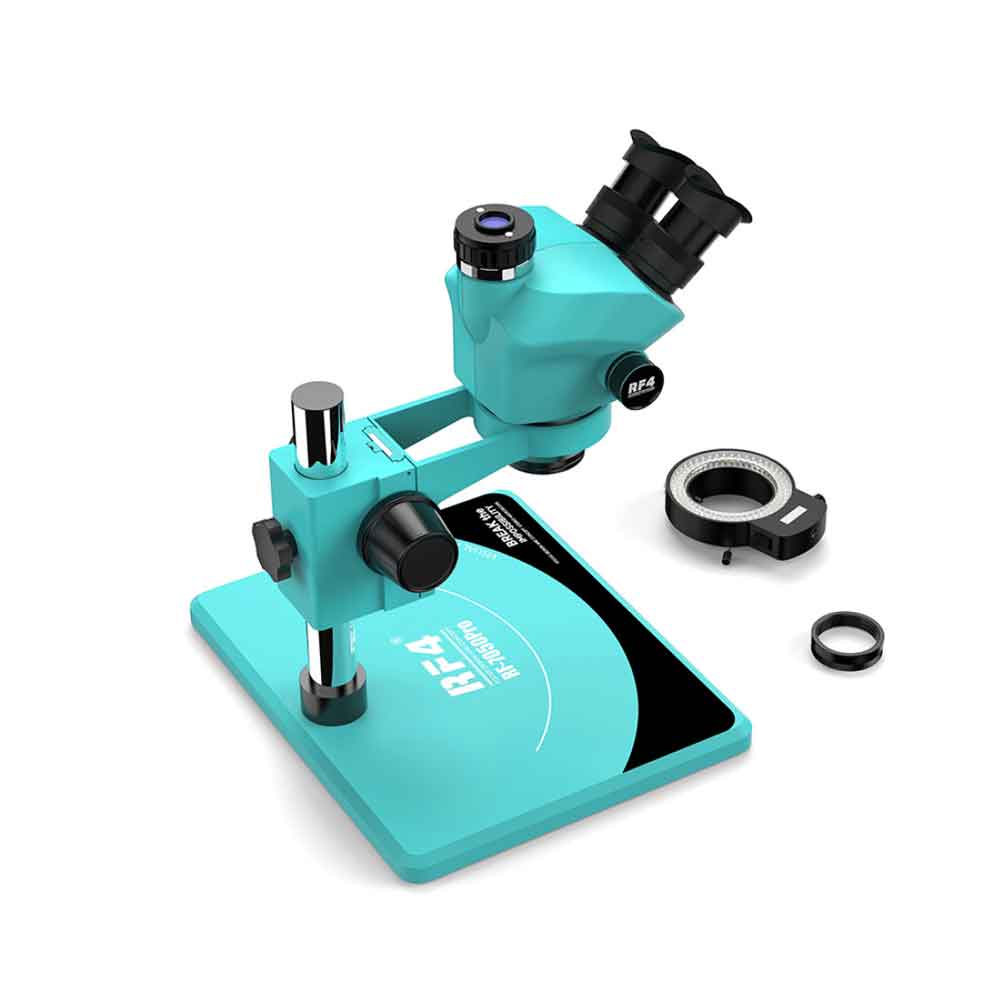

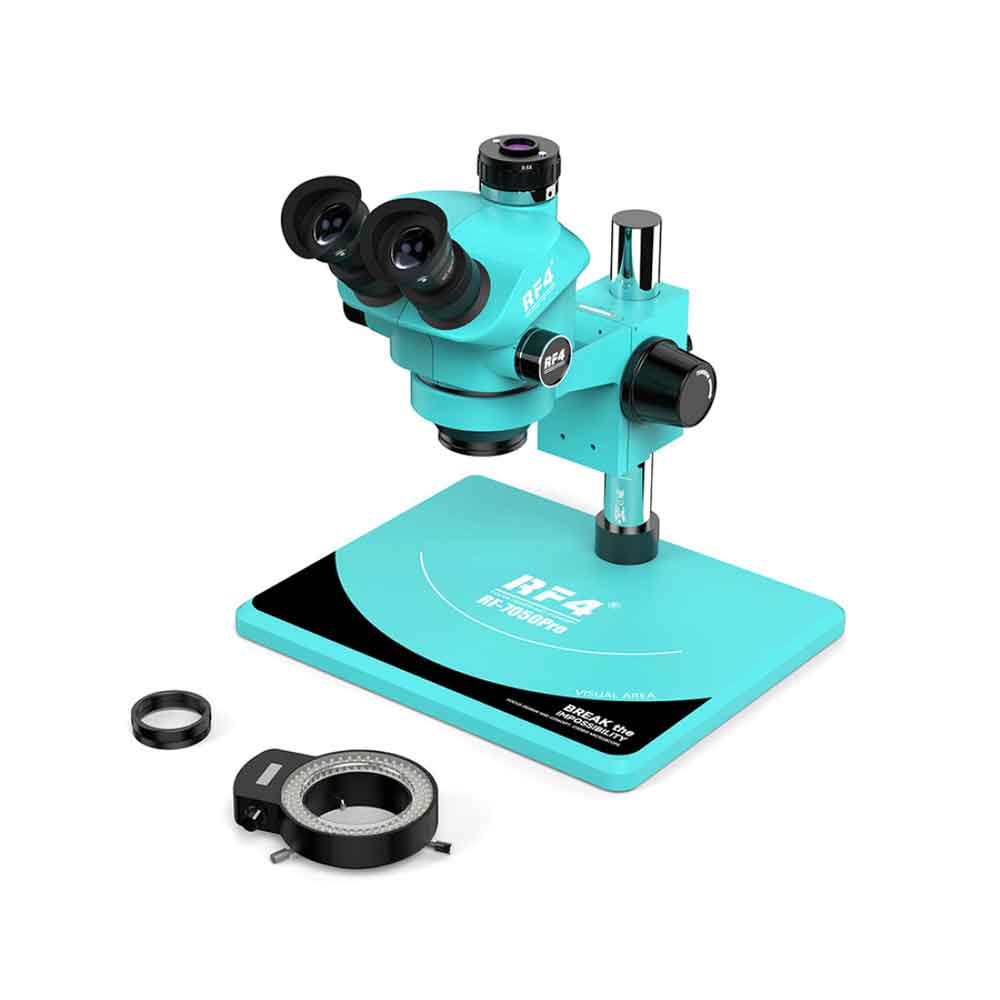

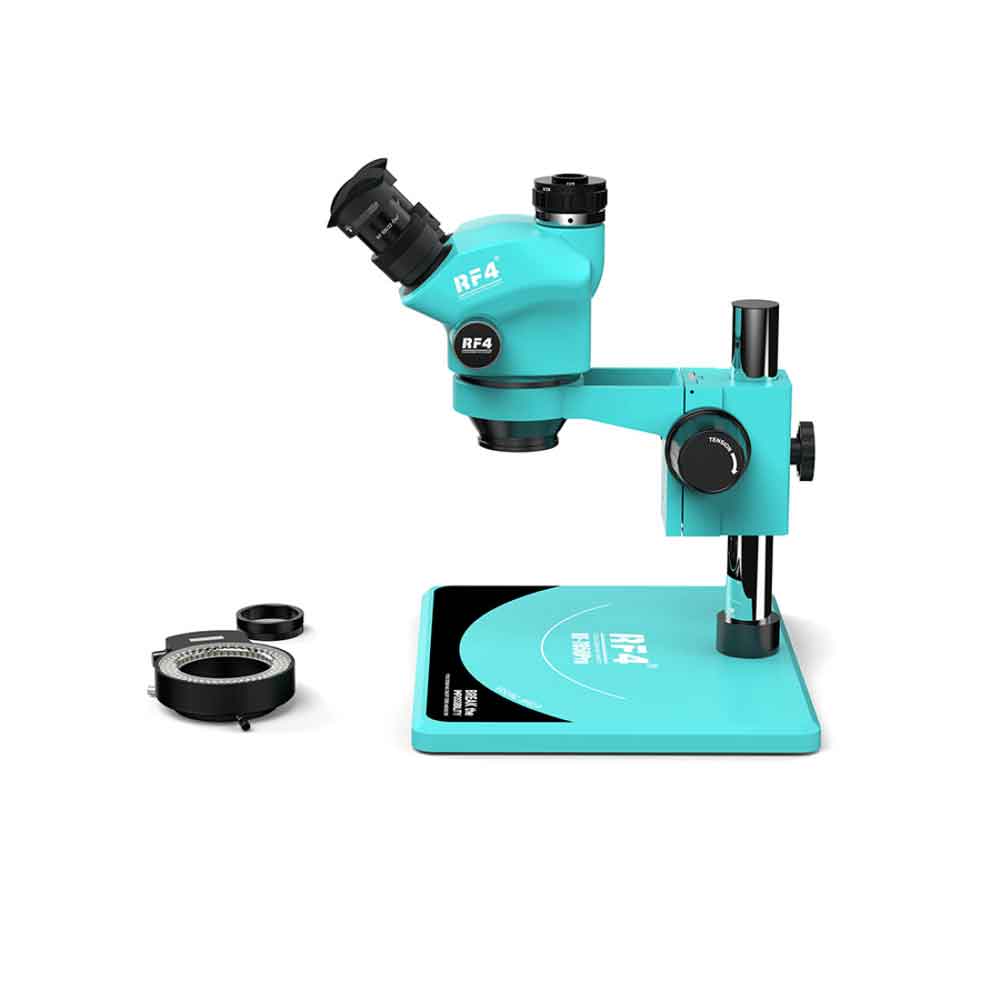

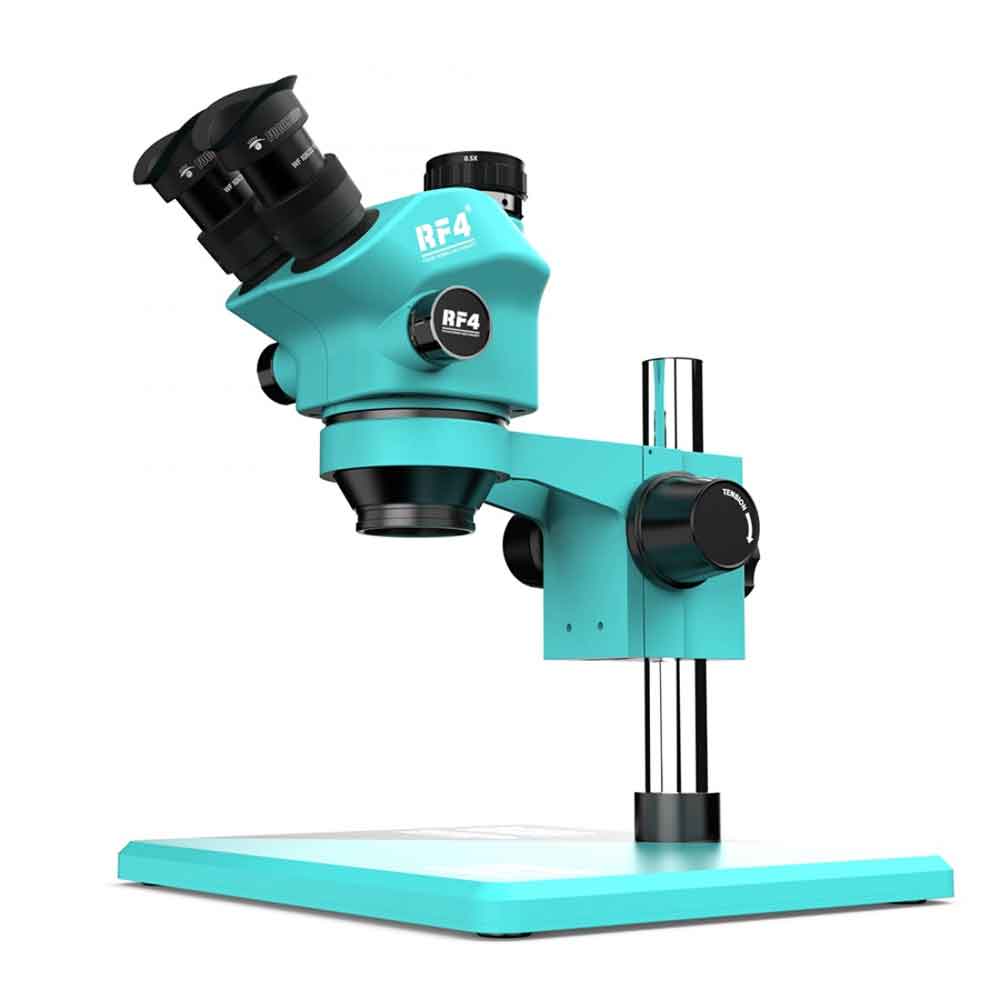

Built with a large aluminum alloy base and boom stand, the RF-7050 Pro provides excellent stability and a wide working area for handling large boards. Combined with a 144 LED adjustable ring light, it ensures bright, uniform illumination for high-precision repair tasks.

Key Features

• 7X–50X continuous 3D zoom magnification
• Gear-based zoom locking for stable viewing
• Trinocular head with camera support (0.5X CTV lens)
• Widefield eyepieces for clear and comfortable viewing
• 144 LED adjustable ring light for uniform brightness
• Large aluminum alloy base for vibration-free operation
• 45° inclined and 360° rotatable head
• Long working distance for soldering and repair tasks
• Ideal for PCB, IC, CPU, and BGA repair
• Suitable for professional labs and technicians

Technical Specifications

• Brand: RF4
• Model: RF-7050 Pro (2023)
• Type: Trinocular stereo microscope
• Magnification Range: 7X – 50X
• Eyepiece: WF10X/20mm widefield high-eyepoint
• Objective Zoom: 0.7X – 5.0X
• Zoom Ratio: 13:1 continuous zoom
• Head Type: Trinocular, 45° inclined, 360° rotatable
• Interpupillary Distance: 55–75 mm
• Camera Interface: 0.5X CTV lens (included)
• Lighting: 144 LED adjustable ring light
• Working Distance: Up to approx. 200 mm
• Base Size: Approx. 260 × 260 mm
• Stand Type: Boom / pillar stand
• Application: Mobile repair, PCB inspection, micro soldering
