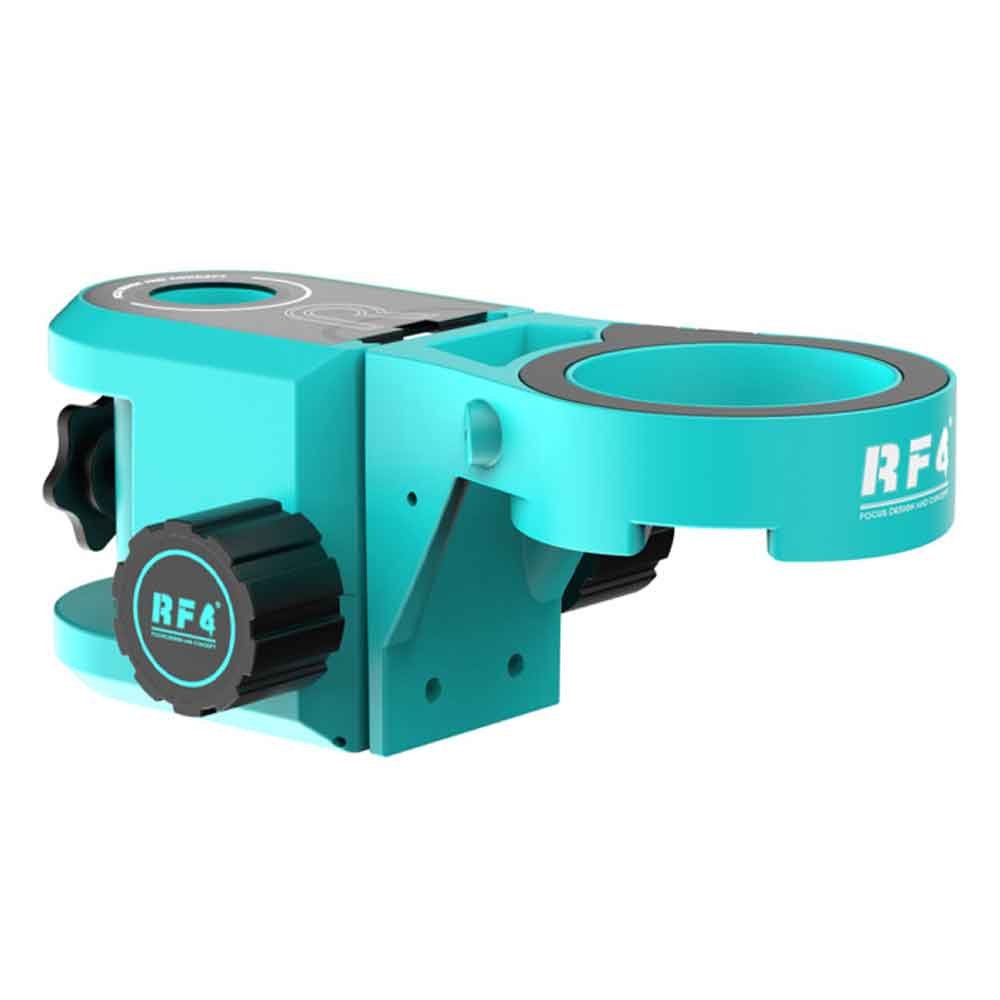

RF4 RF-A6 2-in-1 Microscope Focusing Stand with Integrated Ring LED Light – Professional Stable Stereo Microscope Support System
The RF4 RF-A6 2-in-1 Microscope Focusing Stand with Integrated Ring LED Light is a professional-grade microscope workstation accessory engineered for mobile repair technicians, PCB specialists, microsoldering professionals, and electronics laboratories that require stable imaging, efficient illumination, and improved workspace flexibility. Martview lists the RF-A6 as a dedicated microscope stand with integrated ring LED illumination, featuring a 32mm support hole, 76mm bracket diameter, stepless dimmable brightness, and a triangular anti-shake structure for precision repair applications.
Designed to support most mainstream stereo microscopes, the RF-A6 combines a compact focusing stand with built-in LED lighting to eliminate the need for separate external ring lights while expanding usable repair space beneath the lens. Its short cantilever + diagonal brace triangular structure helps reduce vibration for more stable magnification during motherboard soldering, BGA rework, chip diagnostics, and PCB inspection. Integrated lighting and stable support are especially important in microsoldering environments where consistent visibility and reduced shake directly improve repair precision. Reddit microsoldering discussions also commonly emphasize stable stands, ring lighting, and sufficient working space as major setup priorities.
Key Features
- 2-in-1 Integrated Design: Combines microscope focusing stand with built-in ring LED illumination
- Integrated Ring LED Light: Clear, stable lighting for high-magnification repair tasks
- Stepless Dimmable Brightness: Adjustable illumination for varied repair environments
- 32mm Support Hole Diameter: Compatible with many mainstream stereo microscope heads
- 76mm Bracket Diameter: Secure support structure for professional microscope setups
- Triangular Anti-Shake Structure: Short cantilever + diagonal brace design minimizes vibration
- Expanded Under-Lens Workspace: Built-in light design frees more working room
- Professional Repair Utility: Ideal for PCB repair, motherboard work, soldering, and electronics inspection
Technical Specifications
- Brand: RF4
- Model: RF-A6
- Product Type: Microscope Focusing Stand with Integrated Ring LED
- Support Hole Diameter: 32mm
- Bracket Diameter: 76mm
- Lighting Type: Built-in ring LED light
- Brightness Control: Stepless dimmable
- Structural Design: Short cantilever + diagonal brace triangular support
- Compatibility: Most mainstream stereo microscopes
- Primary Applications: PCB repair, motherboard servicing, BGA rework, chip inspection, microsoldering
- Package Includes: 1 x Microscope Stand
