RF4 RF-C43 Independent Thermal Imaging Fast Touch Design Connected Most Microscope Cameras

RF4 RF-C43 Independent Thermal Imaging Fast Touch Design Connected Most Microscope Cameras

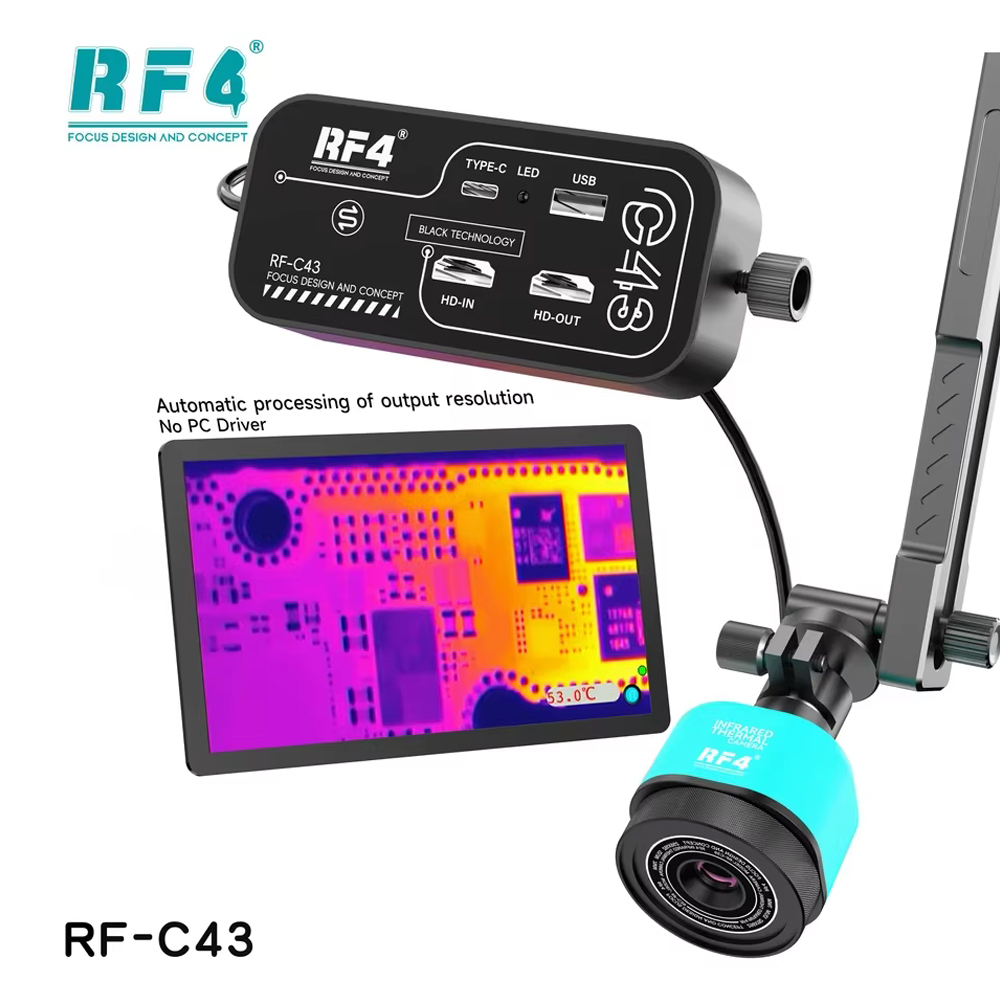

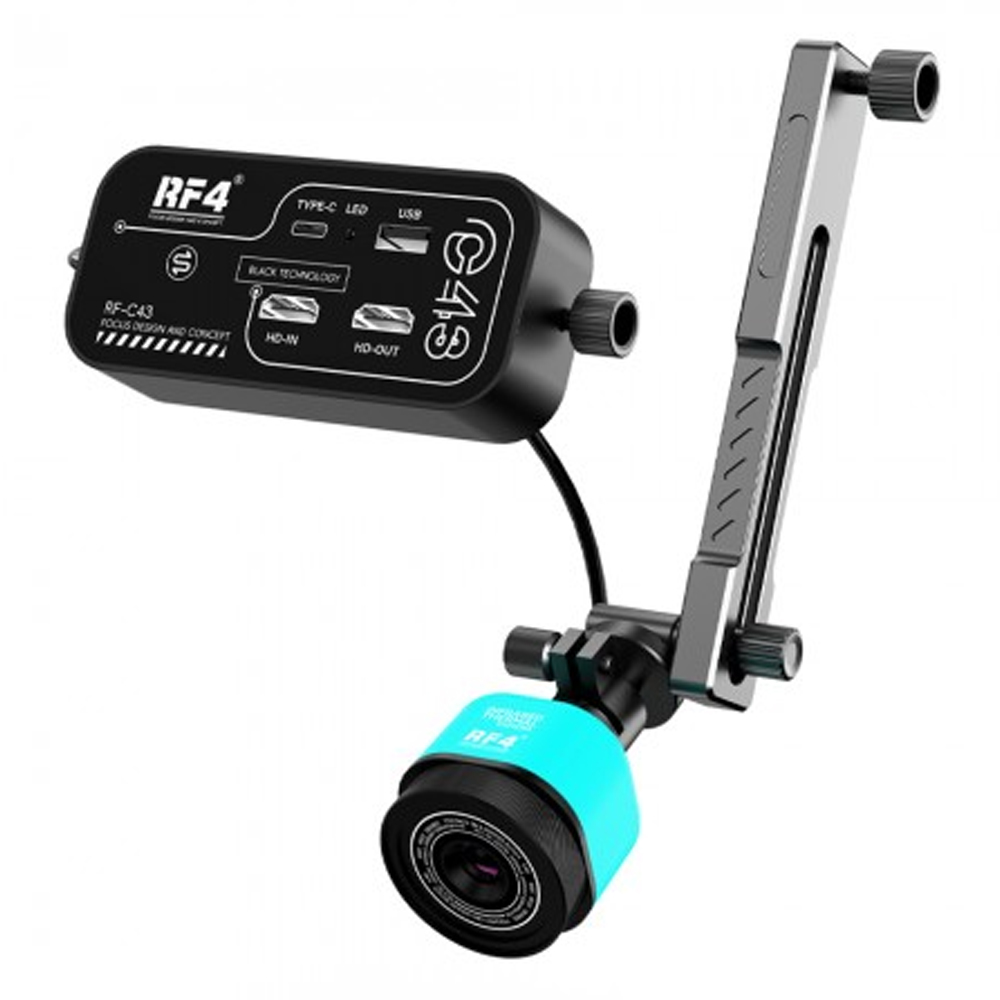

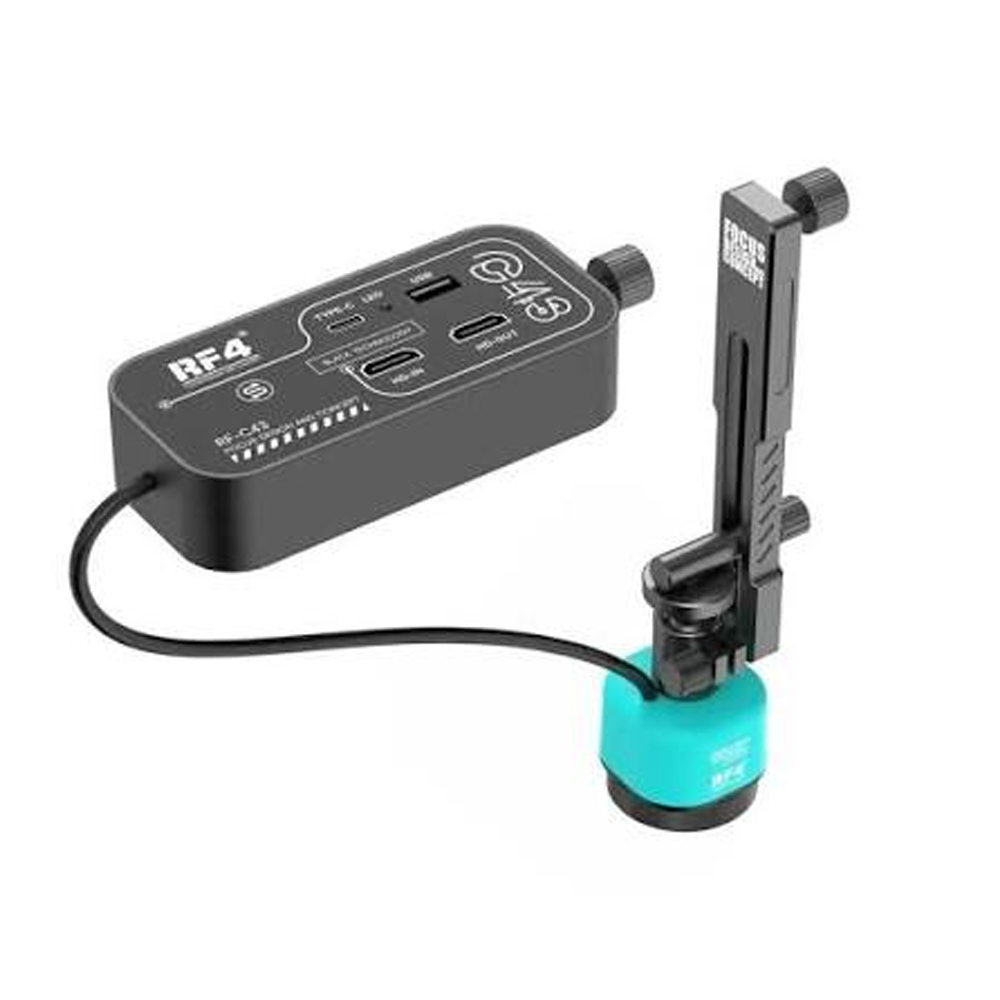

The RF4 RF-C43 Independent Thermal Imaging Camera is an advanced diagnostic accessory designed to work with most microscope cameras, providing real-time thermal imaging for accurate fault detection in electronic devices. Featuring a fast touch-screen interface and independent thermal imaging technology, the RF-C43 enables technicians to quickly identify overheating components, short circuits, power leaks, and abnormal heat distribution during professional repair and inspection.

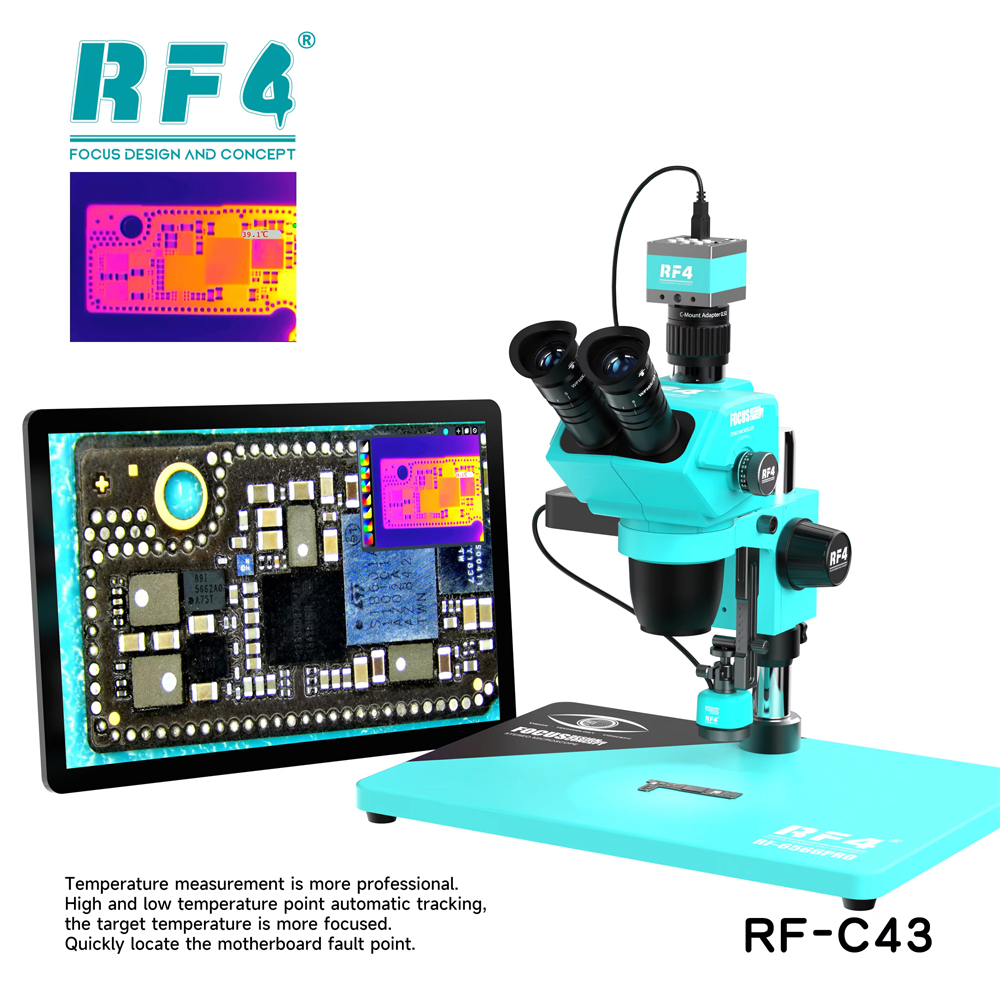

Designed specifically for mobile phone motherboard repair, PCB diagnostics, BGA inspection, circuit analysis, and electronics maintenance, the RF-C43 combines visible microscope imaging with thermal analysis, allowing technicians to locate hidden faults that are difficult to detect using conventional inspection methods.

The responsive touch-control interface provides quick access to thermal display modes, temperature measurement, image settings, and analysis tools. Its independent operating system ensures smooth performance while maintaining compatibility with a wide range of microscope camera setups, making it an excellent addition to professional repair workstations.

With high-sensitivity thermal detection and fast image processing, the RF-C43 helps reduce troubleshooting time and improves repair accuracy. It is ideal for diagnosing shorted capacitors, damaged ICs, overheating power management circuits, charging faults, and motherboard failures across smartphones, tablets, laptops, gaming consoles, and other electronic devices.

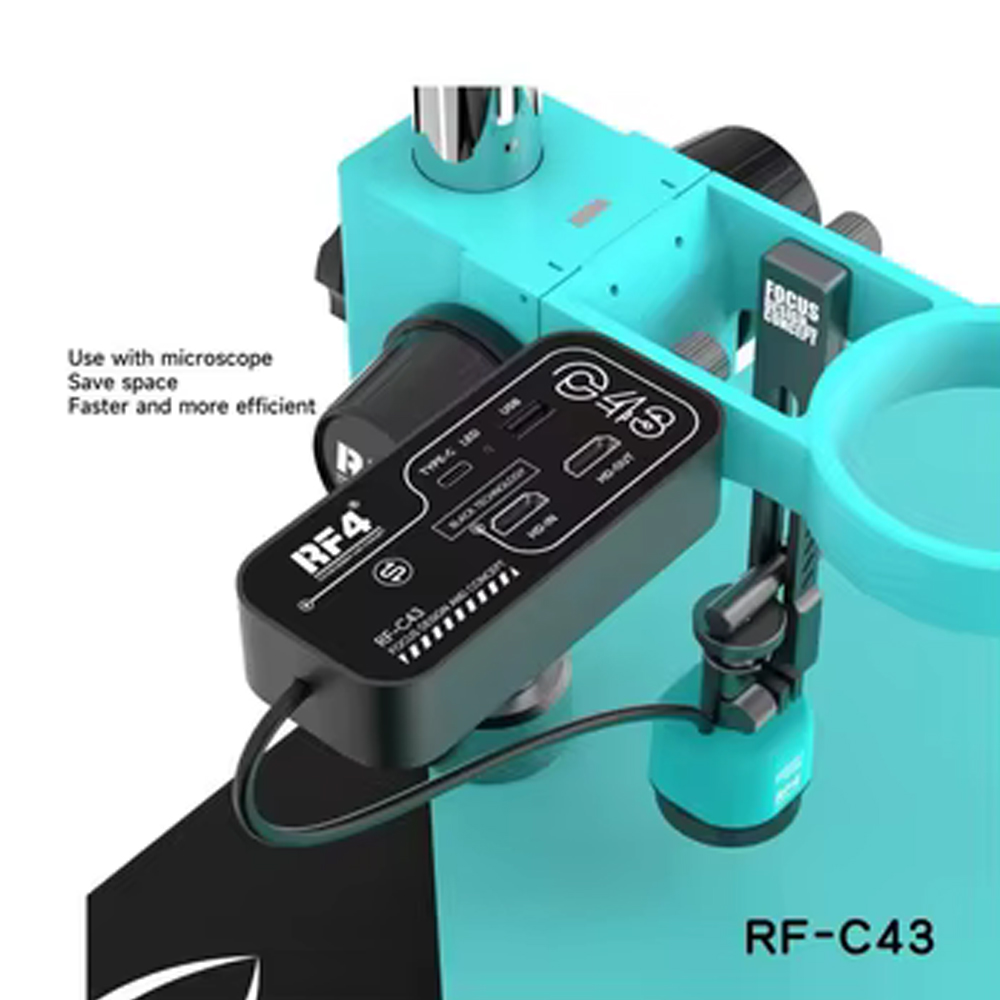

Built with a compact and durable design, the RF4 RF-C43 Thermal Imaging Camera integrates seamlessly into microscope-based repair stations, providing reliable performance for repair shops, laboratories, industrial inspection, and electronics manufacturing environments.

Key Features

• Independent thermal imaging module for professional diagnostics.
• Compatible with most microscope cameras.
• Fast responsive touch-screen interface.
• Real-time thermal imaging for fault detection.
• Detects overheating components and short circuits quickly.
• High-sensitivity infrared temperature analysis.
• Supports PCB repair, motherboard inspection, and BGA diagnostics.
• Compact, durable, and easy-to-integrate design.
• Improves repair accuracy and troubleshooting efficiency.
• Ideal for professional electronics repair and industrial inspection.
