Description

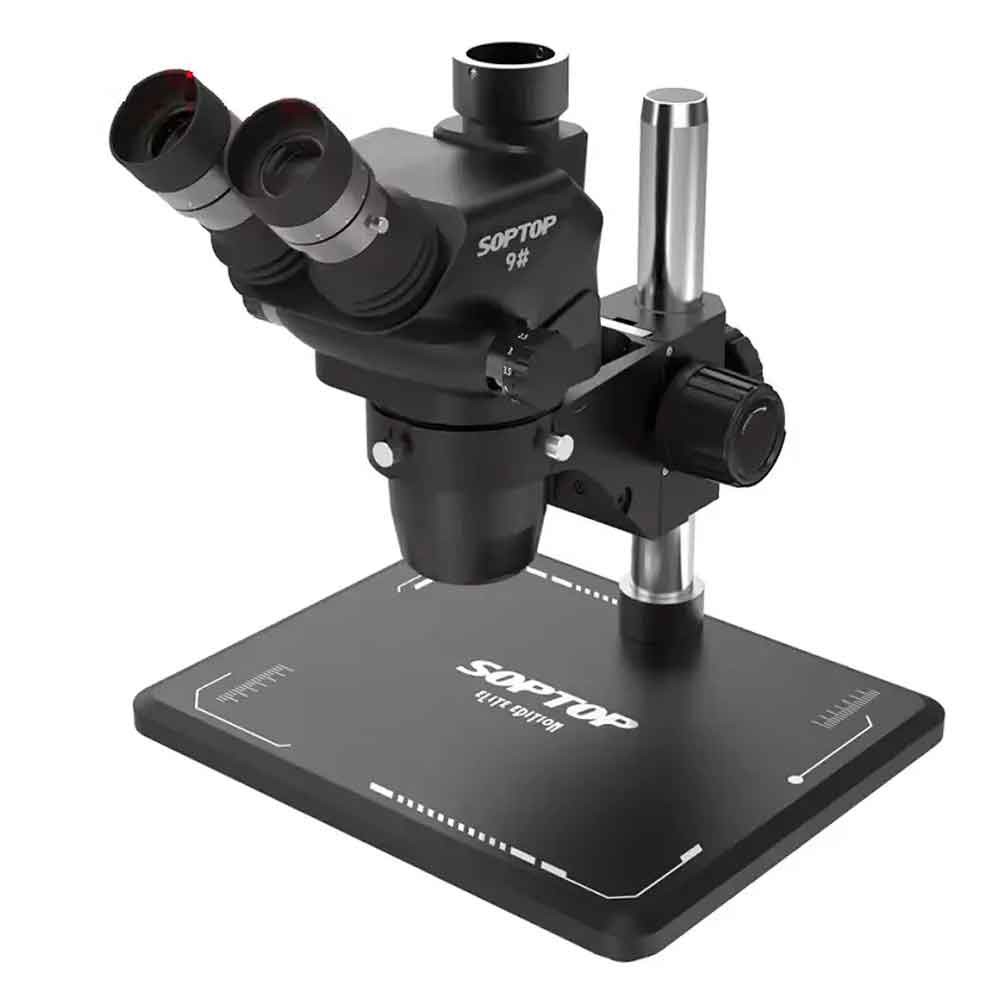

Soptop 9# 6.7-4.5X 150mm 360° Adjustable Trinocular Microscope with Aluminum Alloy Big Base

Features:

• Soptop 9# Trinocular HD microscope for maintenance inspection, biological research, medical anatomy
• Appearance upgrade, classic color scheme, and stylish appearance
• Wide range of use, high-definition, and easy-to-obtain data
• Real material, compact structure, full of materials, more than 300 parts are precisely matched and hundreds of assembly processes are carried out, which lasted more than 20 months of research and development
• 150mm lift adjustment to meet different needs, mobile phone repair, computer repair, small home appliance repair, scientific research, and can be adapted to different usage scenarios
• 50mm macro adjustment, precision linear slides with strong stability, quick macro focus adjustment, bilateral rotatable adjustment, smooth hand feel without setbacks
• 0.67X~4.5X continuous zoom, high precision optical zoom, 360° focusing hand wheel, easy and smooth zoom
• Reserved camera interface for taking pictures and recording videos, set up a high-definition industrial camera for electronic magnification, recording of cases, and precise measurements
• Mirror lock switch freely, when there is no need for frequent adjustment, the magnifying glass can be locked to prevent changes in focal length
• Myopia adaptation adjustment, and binocular interpupillary distance adaptation adjustment, can be used without wearing glasses, and the interpupillary distance between the eyes can be adapted to different users

Specification:

• Model: 9#
• Optical magnification: 6.7-4.5X
• Viewing head: Trinocular observation head,45 tilt,continuous zoom objective lens 0.67-4.5X, interpupillary distance adjustment range 52mm-76mm, with fixed-rate fixed-magnification mechanism and the highest and lowest times adjustment locking function
• Eyepiece: High eye point and large field of view eyepieces PL10X/22mm, with adjustable diopter
• Working distance: 110mm
• Focus bracket: The focusing handwheel is adjustable,and the lifting range is 50mm.
• Work platform: Black and white platen
• Pedestal: Column type large flat base.Column diameter 32mm, height: 228mm, base size: 260*320mm
• C interface: 0.5X camera adapter, C-type interface, adjustable focus
• Auxiliary objective: 0.5X
• Optional eyepiece: 15X/16mm, 20X/12mm
• Optional auxiliary objective: 0.3X, 0.4X, 0.5X, 0.75X, 1.5X, 2X

Package includes:

• 1x Microscope
• 1x Pillar
• 1x Base
• 2x Eyepiece
• 1x 0.5X CTV Lens
• 1x Ring Light
