RL-601I 360° Rotation Mini Rotary Fixture

RL-601I 360° Rotation Mini Rotary Fixture

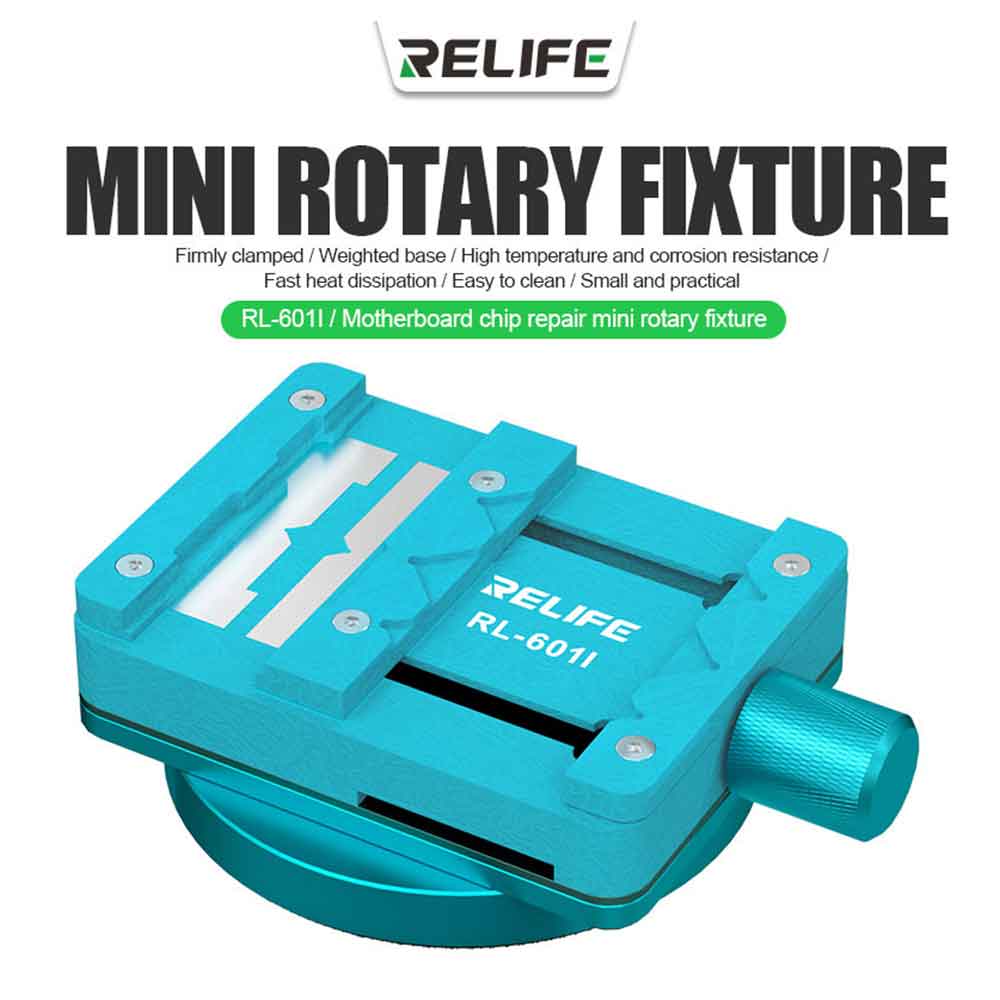

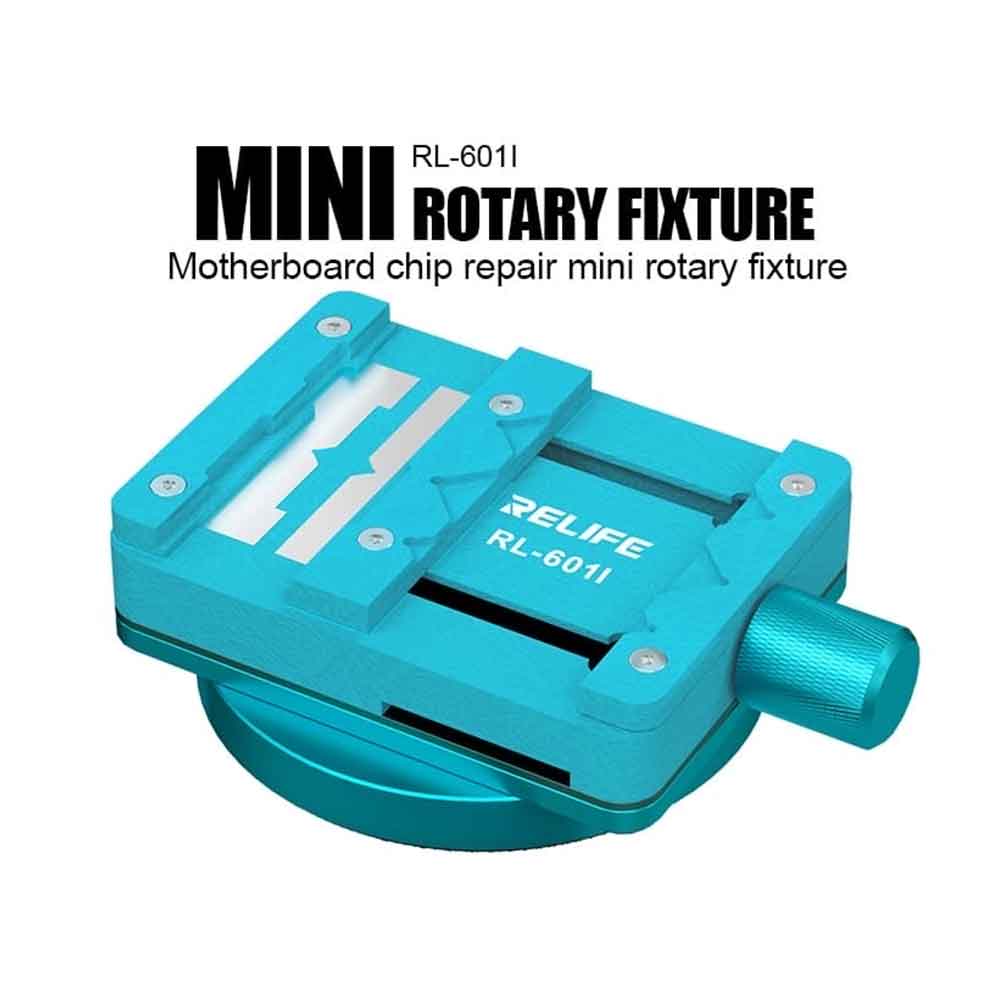

The RELIFE RL-601I Mini Rotary Fixture is a precision-engineered tool designed for mobile and electronics repair technicians who demand accuracy, stability, and flexibility. This compact 360° rotatable base enables effortless manipulation of PCBs, motherboards, BGA chips, and ICs during hot-air soldering and rework operations. With its detachable and weighted base, strong magnetic adsorption, and high-temperature resistance, the RL-601I delivers exceptional performance even under demanding repair conditions.

Built to support professional-grade micro-soldering, it features a universal 40 mm clamping area and non-slip rubber feet for steady mounting, making it suitable for microscope work and high-heat reflow tasks. Whether you’re repairing a smartphone logic board or reballing a chip, this fixture gives you the control and durability to execute your job with confidence.

Key Features

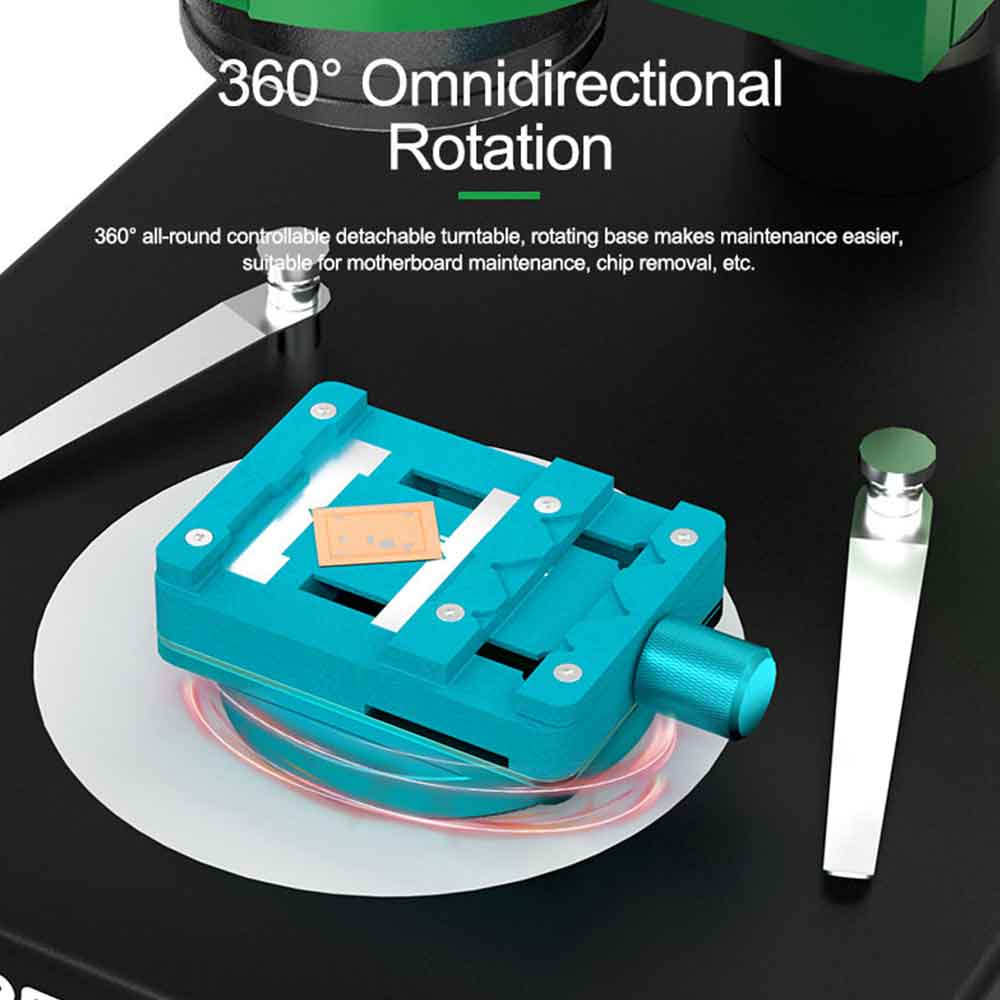

• 360° Omnidirectional Rotation — Easily rotate the PCB or chip for access from all angles.
• Weighted Magnetic Base — Removable and stable, with strong magnetic adhesion for precise positioning.

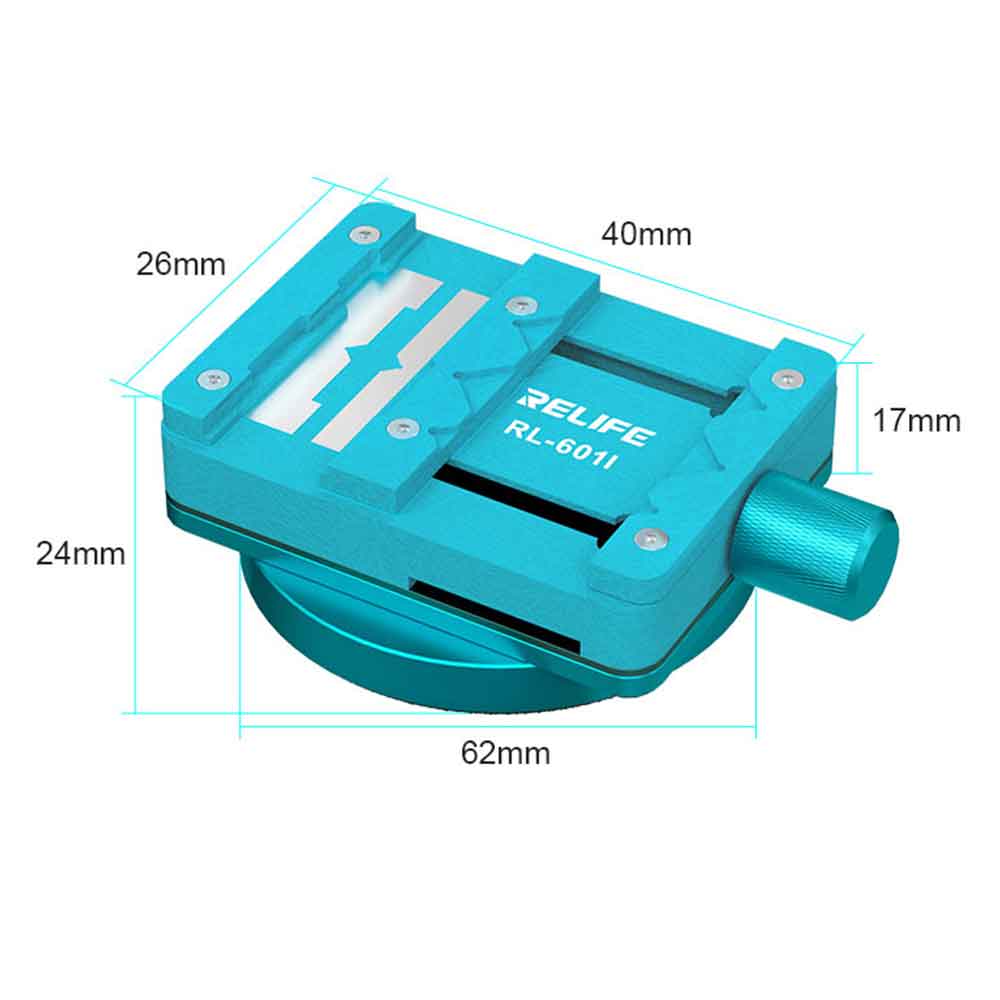

• Universal Chip Slot (40 mm Stroke) — Securely clamps a wide range of boards, ICs, CPUs, and BGA packages.
• High-Temperature & Corrosion Resistant Material — Made from premium materials that withstand hot-air soldering and resist wear.
• Efficient Heat Dissipation Design — Helps disperse heat quickly during rework, improving safety and work quality.

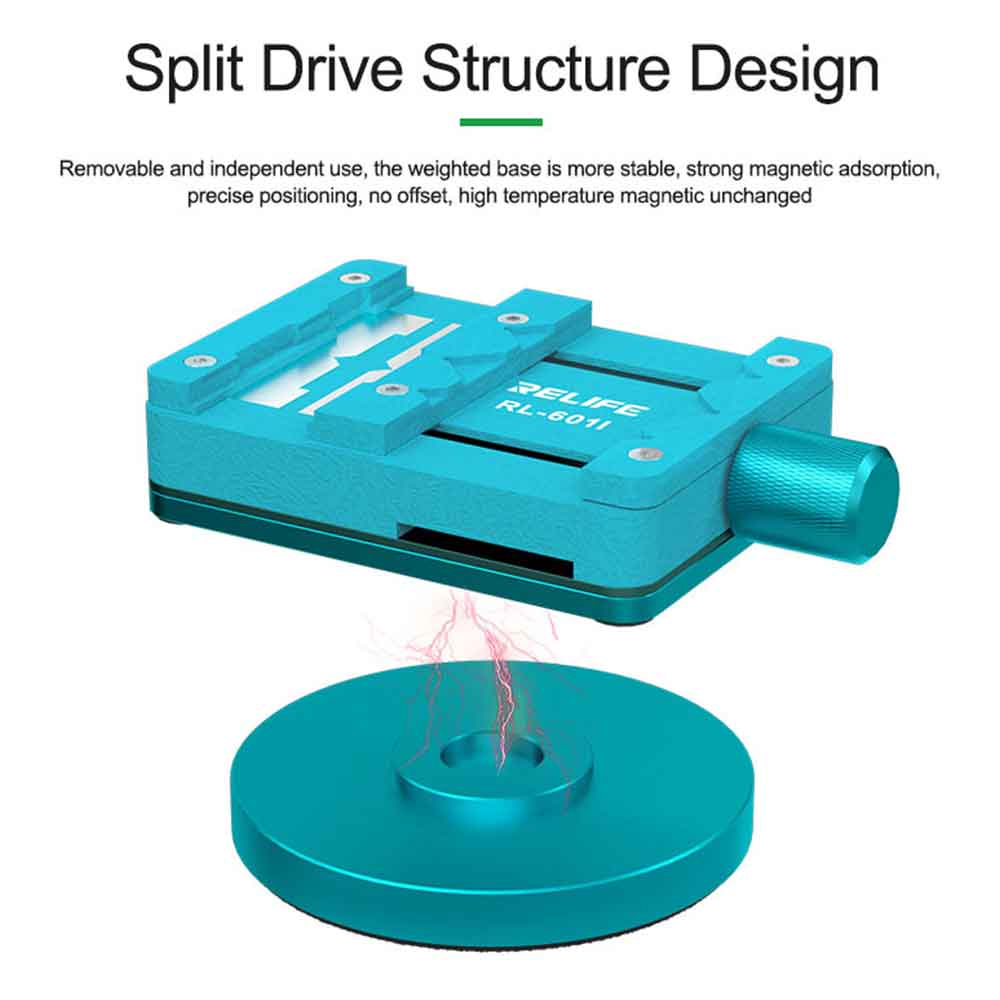

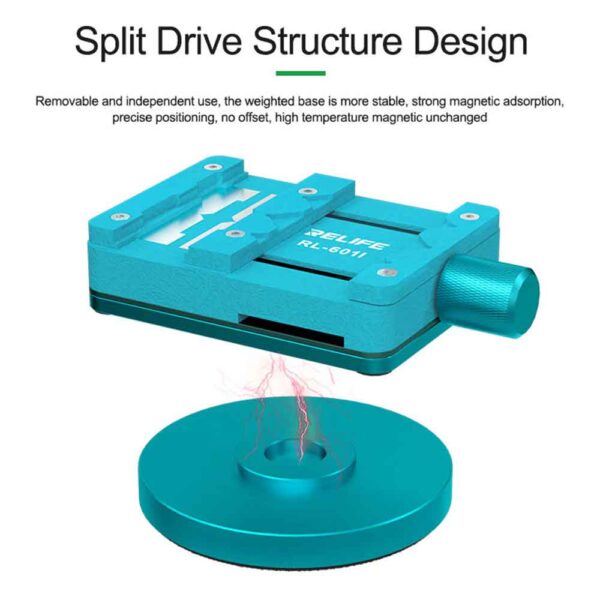

• Detachable Drive Structure — The top part can be separated from the base for flexibility; the base remains secure.
• Precision Card / Chip Slots — Fast positioning of different chip types ensures faster work cycles.
• Non-Slip Rubber Feet — Provide shock absorption and durability, keeping the fixture stable on any surface.

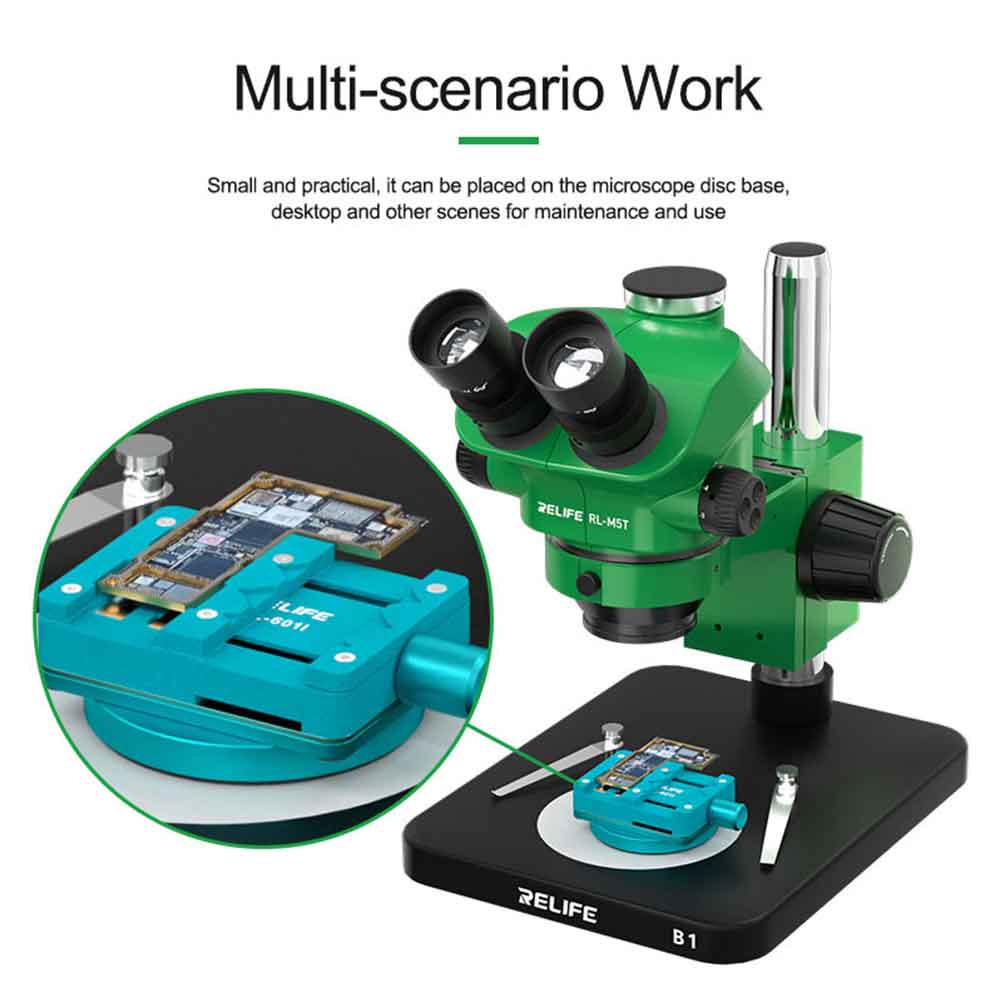

• Microscope-Compatible Mini Size — Compact enough for use under microscope platforms or desktop repair stations.
• Low-Energy Thermal Footprint — The top part heats up quickly with minimal heat loss, making hot-air soldering more efficient.

Technical Specifications:
