Mechanic PCB-001 BGA Chip & Connector Socket Stencil Practice Board – Supports iPhone 17 Series

Mechanic PCB-001 BGA Chip & Connector Socket Stencil Practice Board – Supports iPhone 17 Series

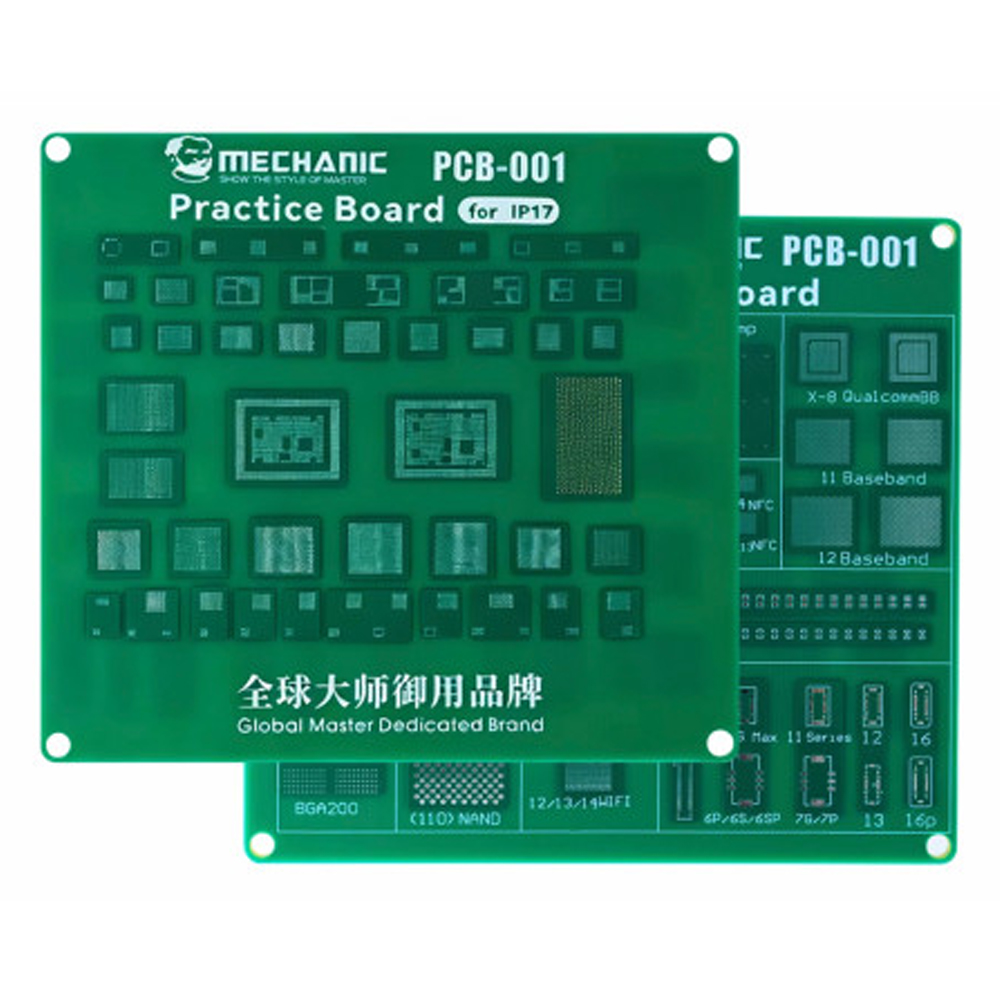

The Mechanic PCB-001 BGA Chip & Connector Socket Stencil Practice Board is a professional training and repair platform designed for BGA chip reballing, connector socket soldering, IC replacement, and motherboard repair practice. Specifically engineered to support iPhone 17 Series layouts, this precision practice board helps technicians develop and refine advanced chip-level repair skills before working on customer devices.

Manufactured from high-quality PCB material, the PCB-001 accurately replicates common motherboard structures, BGA pads, and connector layouts found in modern smartphones. It provides a realistic environment for practicing CPU, NAND, PMIC, EEPROM, FPC connector, and socket soldering using professional repair techniques.

The board is ideal for learning precision soldering, jumper wire installation, hot air rework, BGA reballing, connector replacement, and microscope-assisted repairs. Its durable construction withstands repeated heating cycles, making it suitable for both training institutions and experienced technicians who want to test new repair methods or soldering equipment.

Whether you’re a beginner building chip-level repair skills or an experienced technician improving soldering accuracy, the Mechanic PCB-001 Practice Board is an essential educational and diagnostic tool for mastering modern smartphone motherboard repairs.

Key Features

• Professional BGA chip and connector socket practice board.
• Designed to simulate iPhone 17 Series motherboard layouts.
• Ideal for BGA reballing, IC replacement, and connector soldering.
• High-quality PCB construction for repeated practice.
• Supports CPU, NAND, PMIC, EEPROM, and FPC connector training.
• Suitable for hot air rework and precision soldering exercises.
• Improves chip-level repair techniques and soldering accuracy.
• Compatible with microscope-assisted repair work.
• Excellent training tool for technicians and repair institutes.
• Durable design for long-term educational and workshop use.

Technical Specifications
